Black Coating ASME B16.5 8 Inch Carbon Steel Blind Flange
8" ASME B16.5 Class 300 RF Forged Carbon Steel Blind Flange For Oil
Carbon Steel Blind Flange are characteristically produced without a bore. This is why a blind flange could be used across piping systems to blank off or seal off the ends of piping, Valves and pressure vessel openings. The ASME B16.5 Carbon Steel Blind Flange is frequently produced from forged, cast, or plate materials.
From the standpoint of internal pressure and bolt loading, a 8 inch SCarbon Steel Blind Flange, particularly those manufactured in the larger sizes, tend to be the most highly stressed type of flanges.
Specification of 8" ASME B16.5 Class 300 RF Forged Carbon Steel Blind Flange For Oil
|
Size |
1/2" to 48" |
|
Blind Flange Standards |
ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
|
Blind Flange Pressure |
Class 150 LBS--2500 LBS |
|
Connect Type |
FF RF FM Rtj |
|
Test |
Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |

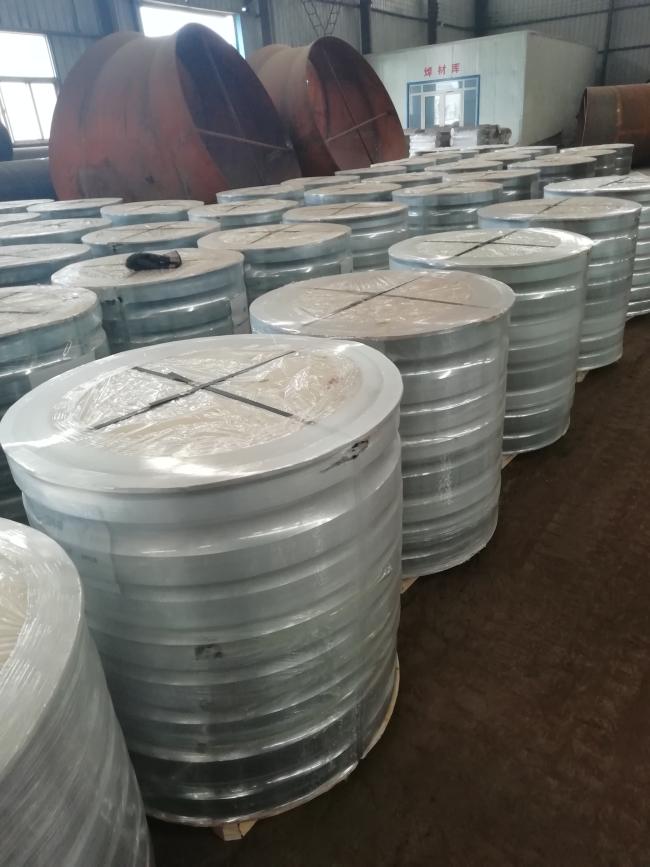

Picture Of 8" ASME B16.5 Class 300 RF Forged Carbon Steel Blind Flange For Oil
