DIN2576 Pn10 Carbon Steel Forged Slip On Plate Flange
Price:
1-10 Pieces US $23.32/piece; >10 Pieces US $21.46/piece
MOQ:
1piece
Delivery Time:
7-13 work days
Brand:
ST
Product Description

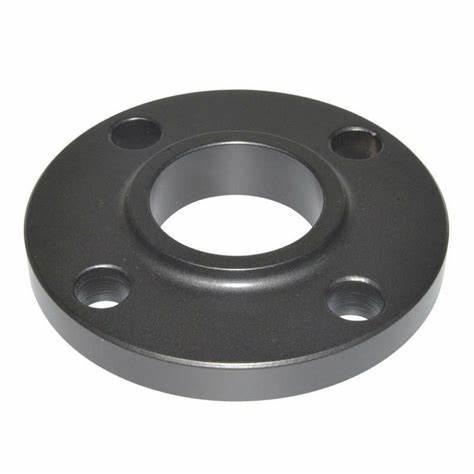

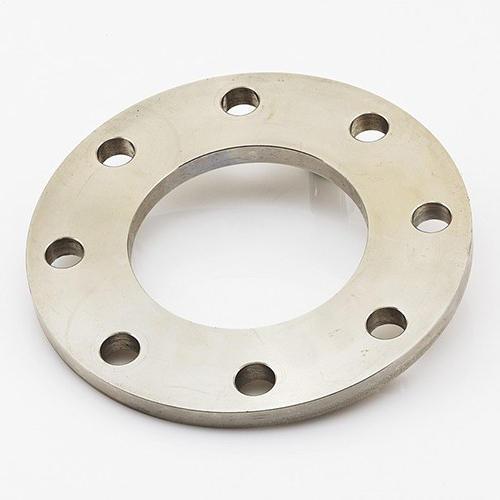

DIN2576 Pn10 Carbon Steel Forged Slip On Flange
The slip on flanges with the dimensions of this standard can be used at maximum 120°C temperature with up to 10 bar of working pressure.
At higher temperature of 120°C to 300°C, it should be taken into consideration that the material yield point becomes lower.
Specification
| Pipe | Flange | Neck | Raised Face | Bolts |
Arropx. Weight (kg) |
||||||||||||||||
| DN |
d1 DIN (ISO)* |
D | b | k | h1 |
d3 DIN (ISO) |
s | r | h2 | d4 | f | # | Dia. of Bolt | d2 |
Weld- ing Nack |
Slip- on | Blind | ||||
| Welding Nack | Slip-on | Blind | |||||||||||||||||||
| 10 |
14 (17.2) |
90 | 14 | 14 | 14 | 60 | 35 |
25 (28) |
1.8 | 4 | 6 | 40 | 2 | 4 | M12 | 1/2" | 14 | 0.58 | 0.61 | 0.56 | |
| 15 |
20 (21.3) |
95 | 14 | 14 | 14 | 65 | 35 |
30 (32) |
2 | 4 | 6 | 45 | 2 | 4 | M12 | 1/2" | 14 | 0.65 | 0.68 | 0.64 | |
| 20 |
25 (26.9) |
105 | 16 | 16 | 16 | 75 | 38 |
38 (40) |
2.3 | 4 | 6 | 58 | 2 | 4 | M12 | 1/2" | 14 | 0.95 | 0.95 | 0.93 | |
| 25 |
30 (33.7) |
115 | 16 | 16 | 16 | 85 | 38 |
42 (45) |
2.6 | 4 | 6 | 68 | 2 | 4 | M12 | 1/2" | 14 | 1.14 | 1.14 | 1.13 | |
| 32 |
38 (42.4) |
140 | 16 | 16 | 16 | 100 | 40 |
52 (56) |
2.6 | 6 | 6 | 78 | 2 | 4 | M16 | 5/8" | 18 | 1.69 | 1.66 | 1.66 | |
| 40 |
44.5 (48.3) |
150 | 16 | 16 | 16 | 110 | 42 |
60 (64) |
2.6 | 6 | 7 | 88 | 3 | 4 | M16 | 5/8" | 18 | 1.86 | 1.89 | 1.85 | |
| 50 |
57 (60.3) |
165 | 18 | 18 | 18 | 125 | 45 |
72 (75) |
2.9 | 6 | 8 | 102 | 3 | 4 | M16 | 5/8" | 18 | 2.53 | 2.51 | 2.59 | |
| 65 | 76.1 | 185 | 18 | 18 | 18 | 145 | 45 | 90 | 2.9 | 6 | 10 | 122 | 3 | 4 | M16 | 5/8" | 18 | 3.06 | 3.00 | 3.33 | |
| 80 | 88.9 | 200 | 20 | 20 | 20 | 160 | 50 | 105 | 3.2 | 8 | 10 | 138 | 3 | 8 | M16 | 5/8" | 18 | 3.70 | 3.79 | 4.34 | |
| 100 | 108 (114) | 220 | 20 | 20 | 20 | 180 | 52 |
125 (131) |
3.6 | 8 | 12 | 158 | 3 | 8 | M16 | 5/8" | 18 | 4.62 | 4.20 | 5.26 | |
| 125 |
133 (139) |
250 | 22 | 22 | 22 | 210 | 55 |
150 (156) |
4 | 8 | 12 | 188 | 3 | 8 | M16 | 5/8" | 18 | 6.30 | 5.71 | 7.67 | |
| 150 |
159 (168) |
285 | 22 | 22 | 22 | 240 | 55 |
175 (184) |
4.5 | 10 | 12 | 212 | 3 | 8 | M20 | 3/4" | 23 | 7.75 | 6.72 | 9.85 | |
| 200 |
216 (219) |
340 | 24 | 24 | 24 | 295 | 62 | 235 | 5.9 | 10 | 16 | 268 | 3 | 8 | M20 | 3/4" | 23 | 11.3 | 9.50 | 15.6 | |
| 250 |
267 (273) |
395 | 26 | 26 | 26 | 350 | 68 |
285 (292) |
6.3 | 12 | 16 | 320 | 3 | 12 | M20 | 3/4" | 23 | 14.7 | 12.5 | 23.1 | |
| 300 |
318 (323) |
445 | 26 | 26 | 28 | 400 | 68 | 344 | 7.1 | 12 | 16 | 370 | 4 | 12 | M20 | 3/4" | 23 | 17.6 | 14.4 | 29.4 | |
| 350 |
368 (355) |
505 | 26 | 28 | 30 | 460 | 68 | 385 | 7.1 | 12 | 16 | 430 | 4 | 16 | M20 | 3/4" | 23 |
21.4 23.4 |
20.6 | 38.0 | |
| 400 |
419 (406) |
565 | 26 | 32 | 32 | 515 | 72 | 440 | 7.1 | 12 | 16 | 482 | 4 | 16 | M24 | 7/8" | 27 |
26.1 28.7 |
27.9 | 47.5 | |
| 500 |
521 (508) |
670 | 28 | 38 | 34 | 620 | 75 | 542 | 7.1 | 12 | 16 | 585 | 4 | 20 | M24 | 7/8" | 27 | 38 | 41.1 | 72.7 | |
| 600 |
622 (609) |
780 | 28 | - | - | 725 | 80 | 642 | 7.1 | 12 | 18 | 685 | 5 | 20 | M27 | 1" | 30 | 44.2 | - | - | |
