Asme 16.11 316 Stainless Steel Elbows 90 Degree Threaded F91 High Pressure
ASME 16.11 90 Degree Threaded F91 High Pressure Stainless Steel Forged Pipe Fittings Elbow
Most of the forged steel fittings are not large, so closed die forging is normally adapted to produce forged steel fittings. Close die Forging is a plastic deformation process where, unlike in the open die forging process, the material is forced to flow between closed dies. Compared to the open die forging, the close die forging (said also hot drop forging) can achieve more complex geometries, very much close to the dimensions of the finished component. The plastic deformation is given rapidly through some shots which force the material to fill the shape of the die. The process is performed at the plastic temperature of the material in use without intermediate re-heatings.
| Product Name | Elbow |
| Size | 1/8"-4" |
| Standard | ASME B16.11 |
| Pressure | 2000lbs, 3000lbs,6000lbs, 9000lbs |
| End | Thread(NPT/BSP), socket welded |
| Type | Equal or reduced |
| Process | Forged |
| Surface | CNC machined, anti-rust oil, HDG(hot dip galv.) |
| Material | Carbon steel: A105, A350 LF2,etc. |
| Pipeline steel: ASTM 694 f42, f52, f60, f65,f70 and etc. | |
| Stainless steel: A182F304/304L, A182 F316/316L, A182F321, A182F310S, A182F347H, A182F316Ti, 317/317L, 904L, 1.4301, 1.4307, 1.4401, 1.4571, 1.4541, 254Mo and etc. | |
| Duplex stainless steel: ASTM A182 F51, F53,F55, UNS31803, SAF2205, UNS32205, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc. | |
| Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,C22, C-276, Monel400, Alloy20 etc. | |
| Cr-Mo alloy steel: A182 f11,f22,f5,f9,f91, 10CrMo9-10, 16Mo3 etc. | |
| Application | Petrochemical industry;aviation and aerospace industry;pharmaceutical industry,gas exhaust; power plant;ship building; water treatment, etc. |
| Advantages |
ready stock,faster delivery time;available in all sizes,customized;high quality |

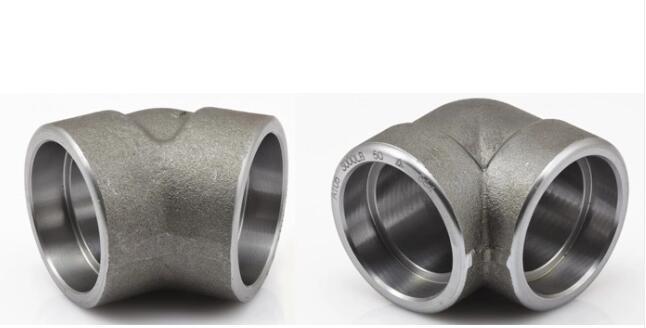

Detailed Photos
Chemical Composition :
| Elements | 304L(wt%) / F304L / S30403 | 304(wt%) / F340 / S30400 | 316L (wt%) / F316L /S31603 | 316 (wt%) / F316 / S31600 | 310 (wt%) / F310 / S31000 |
| (C) Carbon, max | 0.03 | 0.08 | 0.03 | 0.08 | 0.25 |
| (Mn) Manganese, max | 2 | 2 | 2 | 2 | 2 |
| (P) Phosphorus, max | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 |
| (S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
| (Si) Silicon, max | 1 | 1 | 1 | 1 | 1 |
| (Ni) Nickel | 8.0 - 13.0 | 8.0 - 11.0 | 10.0 - 15.0 | 10.0 - 14.0 | 19.0 - 22.0 |
| (Cr) Chromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 | 24.0 - 26.0 |
| (Mo) Molybdenum | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 | N/A |
| (Fe) Iron | N/A | N/A | N/A | N/A | N/A |
| (Cu) Copper | N/A | N/A | N/A | N/A | N/A |
| (N) Nitrogen | N/A | N/A | N/A | N/A | N/A |
FAQ
Q: Can you supply Form e, Certificate of origin?
A: Yes, we can supply.
Q: Can you supply invoice and CO with chamber of commerce?
A: Yes, we can supply.
Q: Can you accept L/C deferred 30, 60, 90days?
A: We can.
Q: Can you accept O/A payment?
A: We can.
Q: Can you supply samples?
A: Yes, some samples are free.
Q: Can you supply the products which comply with NACE?
A: Yes, we can.
Q: Can you visit your factory
A: Yes, sure. Welcome.
Q: Can you inspect the goods before delivery
A: Yes, sure. Welcome to our factory inspect the goods. Also accept third party inspection, such as SGS, TUV, BV etc.
Q: Can you supply MTC , EN10204 3.1/3.2 certificate?
A: Yes, sure. we can
Q: Do you have ISO
A: Yes, we have
Q: Can you accept OEM?
A: Yes, we can
Q: Can you accept marking our LOGO?
A: Yes, we can
Q: What is your MOQ?
A: 1pcs for standard fittings and flanges.
Q: Can you support to design our piping system?
A: Yes, we would like to your partner and our engineer will help.
Q: Can you offer data sheet and drawing?
A: Yes, we can
Q: Can you ship by carrier or airline?
A: Yes, we can. And we also can ship by train
Q: Can you combine your order with other supplier? Then ship together?
A: Yes, we can. We would like help you ship together to save your time and money
Q: Can you shorten delivery time?
A: If very very urgent, please confirm with sales. We would like arrange extra-working time for you.
Q: Can you mark "MADE IN CHINA" on products and packing?
A: Yes, we can
Q: Can you supply semi-finished products?
A: Yes, we can
Q: We need some test sample pieces for each heat number, Can you supply?
A: Yes, we can
Q: Can you supply heat treatment report?
A: Yes, we can
