Lightweight and Breakage-Resistant Plastic Bottle for Non-Phototoxic Contents
Price:
negotiated
MOQ:
10000
Delivery Time:
15 - 20 DAYS
Brand:
OEM/ODM
Product Description

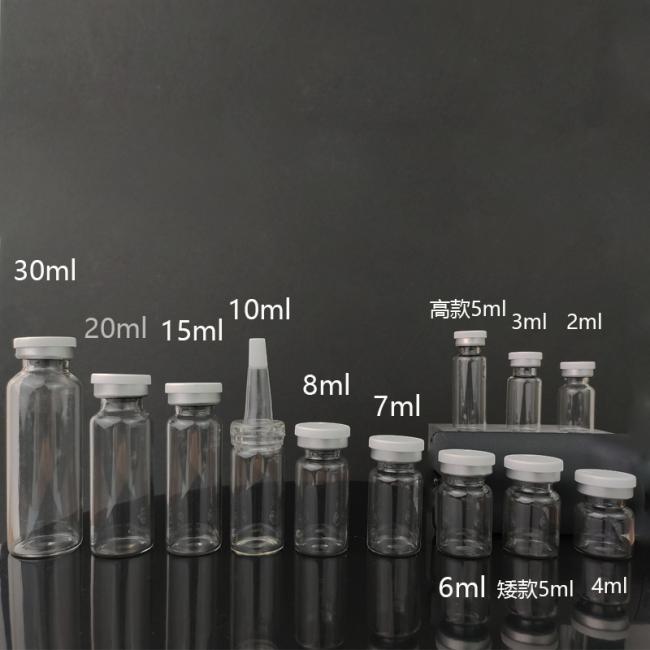

| Project | 10 ml vial | 30 ml vial |
| Standard capacity | 10ml | 30ml |
| Material | Borosilicate glass (Grade I/Grade III), PET (plastic) | Same as above |
| Bottle diameter | Approximately 22 - 25 mm | Approximately 28 - 32 mm |
| Height of the bottle | Approximately 45 - 50mm | About 60 - 70 mm |
| Bottle mouth specification | General 20mm (with butyl rubber stopper/aluminum cap) | Same as left or custom 24mm |
| Wall thickness | 0.0 - 1.2mm (glass) | 1.2 - 1.5 millimeters (glass) |
1. Material Selection
Glass vials (main choice)
Borosilicate glass grade I:
Resistant to acids and alkalis, with strong thermal shock resistance (suitable for freeze-drying process), high transparency.
Complies with the standards of the Chinese Pharmacopoeia, USP/EP, and is used for injectable drugs.
Borosilicate glass grade III:
Lower cost, suitable for oral liquids, non-injection purposes (such as health supplements, freeze-dried powders).
Plastic vials (PET/COP)
Advantages: Lightweight, not prone to breakage, suitable for travel-sized or non-phototoxic contents.
Disadvantages: High permeability, requires aluminum foil bags for protection during long-term storage.
2. Key Component Parameters
Component 10ml Parameter 30ml Parameter

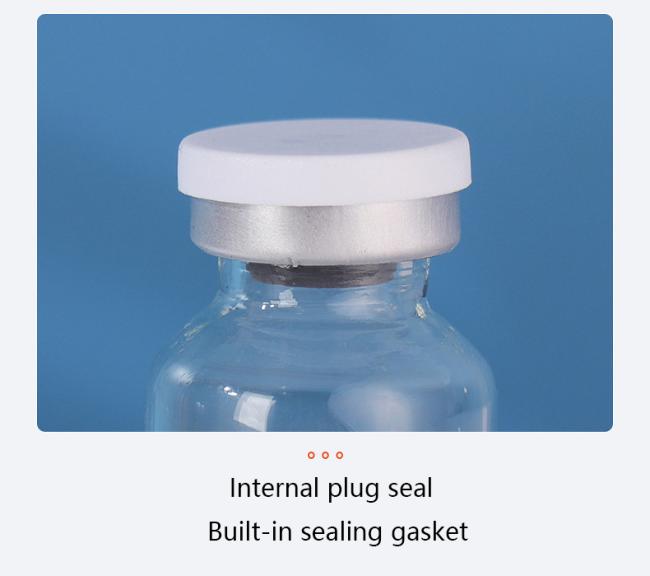

Stopper 20mm Butyl Stopper (halogenated/non-halogenated) Same as above or 24mm
Aluminum Cap 20mm Open Aluminum Cap (pull-off/ordinary) Same as above or 24mm
Plastic Cap Selectable anti-theft ring or child safety lock design Same as above
3. Special Process Requirements
Aseptic Treatment: Sterilization by gamma rays or heat removal from a high-temperature oven (a sterilization certificate must be provided).
Low Temperature Resistance: The vials used for freeze-drying must not rupture at -80℃ (glass material preferably grade I).
Light Resistance: Optional amber glass or coated with a light-protective film.
Printing: Silk-screening of scale lines and brand logos (must be resistant to high-temperature disinfection).
