Aluminum Foil Container Machine Professional Research and Development 15 Years
Product Overview
The LK-T63 aluminum foil container machine is specially designed for 3-cavity mold production, making it ideal for small and medium-sized aluminum foil containers. Featuring a robust "C" frame structure and lithium-based ester oil lubrication system, this machine delivers reliable performance for continuous operation.
The fully automatic press line T63 includes: Decoiler 950/1450, Press T63, Mold Lifter Arm, Safety Door, Scrap Aspirator, Control Cabinet, and 3-Way Stacker. Safety doors ensure operator protection, with automatic machine stoppage when doors are opened during production.
Technical Parameters
| Machine Type | C-Frame |
|---|---|
| Core Design | Multi-cavity high-efficiency structure |
| Weight | 12300KG |
| PLC | Mitsubishi |
| Main Motor | Innomotics |
| Max. Working Speed | 38~70 Times/min |
| Feeding Accuracy | ±0.1mm |
| Motor Power | 19KW |
| Working Voltage | 380V/50Hz |
Standard Line Configuration
- Decoiler
- T63 press machine
- Standard three-cavity stacker
- Scrap baler
- Scrap aspirator
Key Advantages
- One person runs one production line
- Designed for 24 hour continuous operation
- Average running speed of 50 strokes per minute
- Machine stops automatically and shows fault on touchscreen
- Stores up to 60 sets of mold parameters
- Quick mold change system - 15 minutes
Packaging & Warranty
- Packaging: wooden case
- Shipping: 40ft high cube container - one line plus 4 sets of molds fit
- Warranty period: 1 year
- Technical support: lifetime
Why Choose Us
- Professional R&D of aluminum foil finished product equipment since 2010
- Fast pre-sales and after-sales service
- Overseas installation services
- One stop comprehensive service for aluminum foil product projects
- The spirit of continuous improvement and development

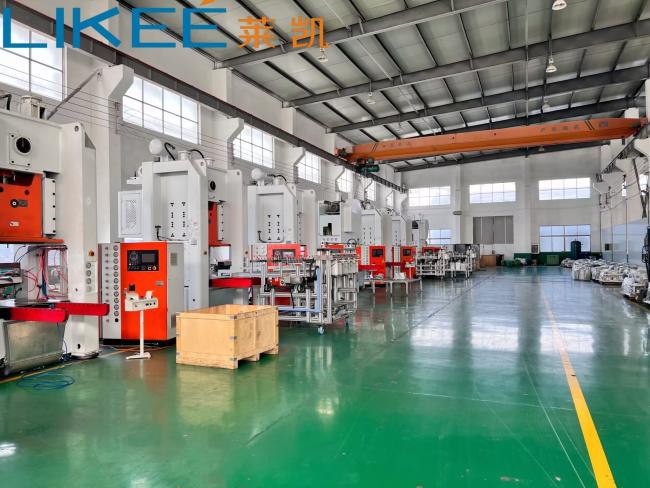

Factory Display
Machine Details

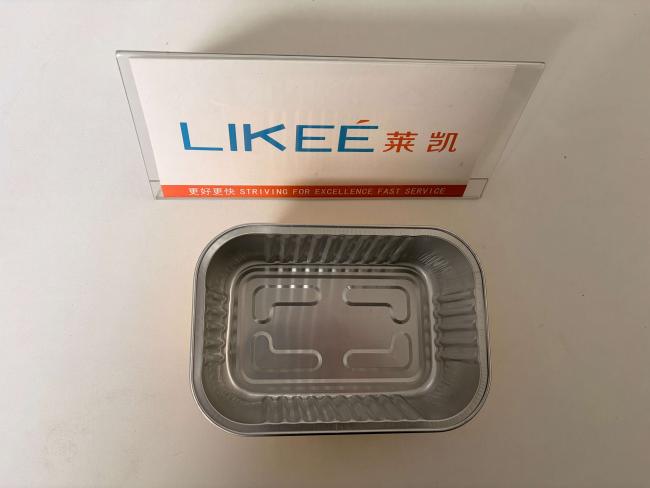

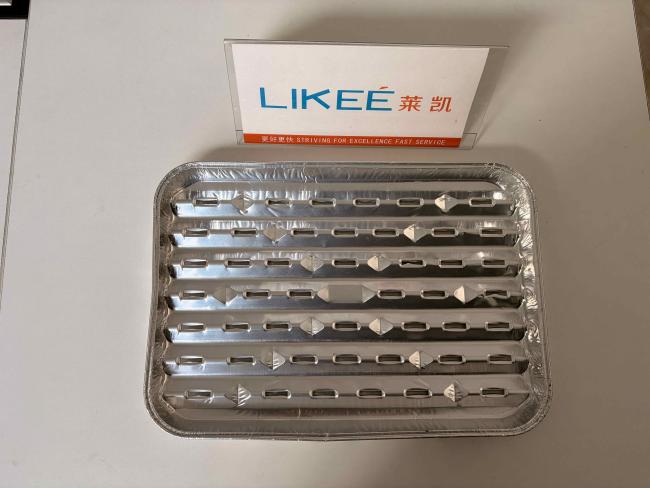

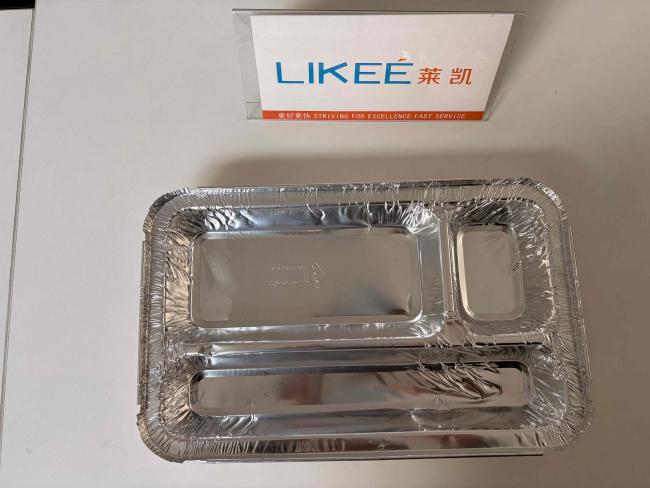

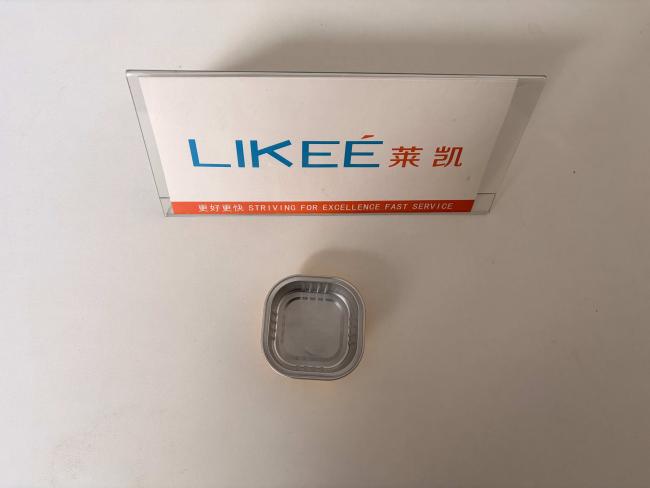

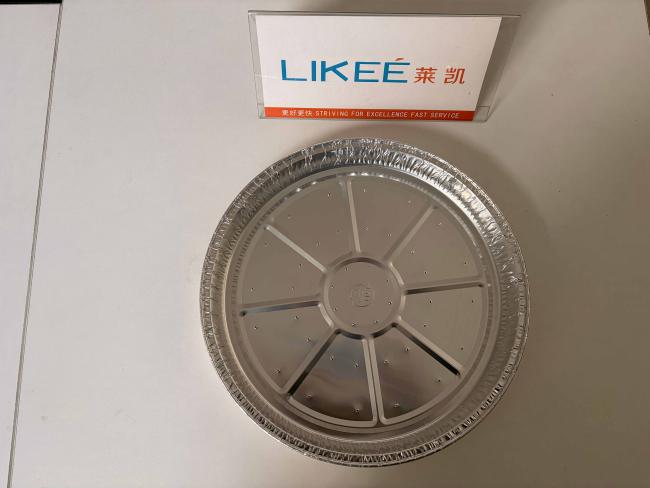

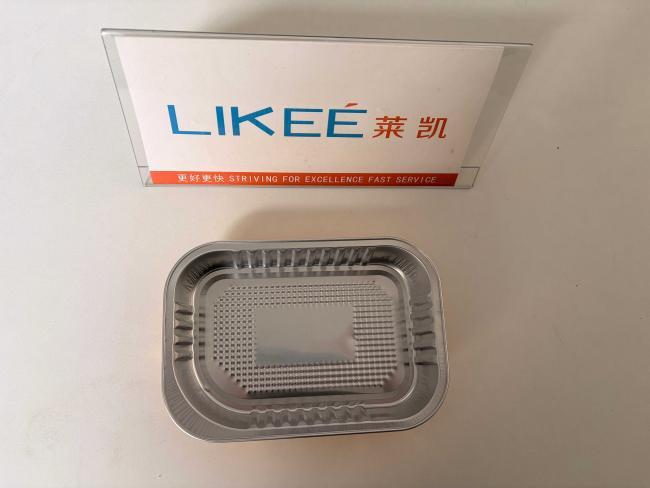

Sample Products
Frequently Asked Questions
What does 15 years of R&D experience bring to this machine?
In-house capabilities in mold design, press structure, and line integration. Main press design life exceeds 30 years.
What types of containers can this machine produce?
Works with both wrinkle wall and smooth wall molds. Molds can be customized based on customer samples.
What is the actual production speed?
35-68 strokes per minute, averaging 50 strokes per minute. With three cavities, 9,000 to 12,000 pieces per hour.
Can one person operate it?
Yes. The line is automated for single person operation.
How long does a mold change take?
About 15 minutes by one person, using the lifting arm and hydraulic pump.
What happens if the machine fails?
The machine stops automatically and shows the fault location on the touchscreen.
What brands are used for key components?
Mitsubishi for PLC and touchscreen, Innomenta for main motor, Schneider for low voltage, SMC and Airtac for pneumatics.
What is the difference between T63 and T80?
T63 is three cavity with C frame and lithium grease. T80 is four cavity with H frame and sealed oil circuit.
What is the warranty and after sales policy?
One year warranty with free replacement for non-human damage. After warranty, parts at cost price. Lifetime technical support.
