ROLL DIE PUNCHING MACHINE ALUMINUM FOIL LID PE, PP, PET LAMINATED ALUMINUM FOIL EMBOSSING PLASTIC FILM,PAPER 0.035~0.2MM

ROLL DIE PUNCHING MACHINE ALUMINUM FOIL LID PE, PP, PET LAMINATED ALUMINUM FOIL EMBOSSING PLASTIC FILM,PAPER 0.035~0.2MM

https://www.youtube.com/@labelturretrewindingmachinery

After sale service:
1. Spare parts guarantee for one year from the date of installation.
2．Send the technician for installation & training. Buyer bears the cost (round tickets, accommodation, and allowance of 100USD per day).

Technical Specification

Introduction:

CQ series automatic roll punching machine based on international advanced technology, it’s widely used in printing, packaging and paper products industries. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, manual pneumatic lock plate, photoelectric correcting deviation system, centralized oil lubrication. All the key parts and controls of the machine are imported.

Main structure

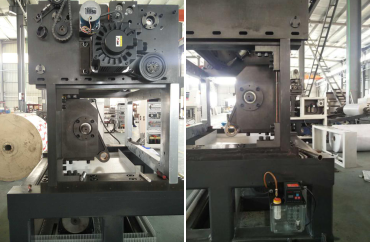

1. It adopts micro-computer, human-computer control interface, servo positioning, and we make the wallboard, base much stronger than others, it gurantees that when the machine runs with 300 strokes/min, you won’t feel that machine is shaking.

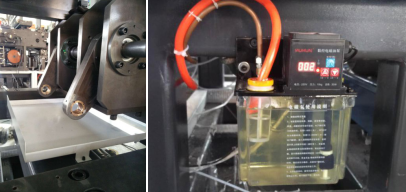

2.Lubri cation System: Adopts forced lubrication system to ensure main driving oil supply regularly and reduce friction and prolong the machine life, you could set it to lubricate one time every 10 minutes.

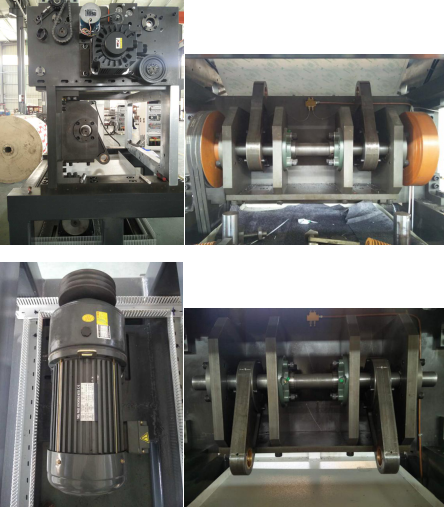

3. The die-cutting force is provided by a 7.5KW inverter motor driver. It is not only power-saving, but also can realize the stepless speed adjustment, especially when coordinate with the extra large flywheel, which make the die-cutting force strong and steady, and the electricity can be further reduced.

4. The coordination between stepping motor and photoelectric eye which can identify colors assures the perfectly fit of the die-cutting position and figures

6. Electrical cabinet

Motor: Frequency converter controls the main motor, with features of low energy and high efficiency.

PLC and HMI: screen display the running data and status, all of the parameter can be set through the screen.

Electrical control system: adopts micro computer control, encoder angle detect and control, photoelectric chase and detect, achieving from paper feeding, convey, die-cutting and delivering process automatic control and detect.

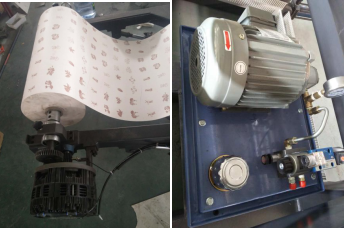

7. Feeding Unit: Adopts chain type pneumatic roller unwind, tension controls unwind speed, and that’s hydraumatic, it could support at least 1.5T. Max roll paper diameter 1.5m.

8. Die cutting mold: it could be used for long time, and if the mold can’t cut well, you could polish the blade then continue to use.

Support and Services:

We provide technical support and services for ROLL DIE PUNCHING MACHINE ALUMINUM FOIL LID PE, PP, PET LAMINATED ALUMINUM FOIL EMBOSSING PLASTIC FILM,PAPER 0.035~0.2MM. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.

At our facility, we provide a full range of services for ROLL DIE PUNCHING MACHINE ALUMINUM FOIL LID PE, PP, PET LAMINATED ALUMINUM FOIL EMBOSSING PLASTIC FILM,PAPER 0.035~0.2MM. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.

Our goal is to provide the best technical support and services for ROLL DIE PUNCHING MACHINE ALUMINUM FOIL LID PE, PP, PET LAMINATED ALUMINUM FOIL EMBOSSING PLASTIC FILM,PAPER 0.035~0.2MM. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.

Packing and Shipping:

ROLL DIE PUNCHING MACHINE ALUMINUM FOIL LID PE, PP, PET LAMINATED ALUMINUM FOIL EMBOSSING PLASTIC FILM,PAPER 0.035~0.2MM is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.

Machines are shipped via air or sea freight, depending on the customer’s preference.
