SEMI ROTRAY INTERMITTENT DIE CUTTING SNOWBALL TYPE WASTE REWINDING DEVICE WITH SLITTING STATION TURRET REWINDING OPTION
SEMI ROTRAY INTERMITTENT DIE CUTTING SNOWBALL TYPE WASTE REWINDING DEVICE WITH SLITTING STATION TURRET REWINDING OPTION
http://www.youtube.com/@labelturretrewindingmachinery
Features:
Intermittent semi rotary die-cutting is a new machining process that is equipped with a servo motor motion control system and color register sensors to arrange high-precision rotary die-cutting systems.
The new processing concept is a feature of this machine, without the need to replace different specifications of magnetic cylinders, only the mold needs to be replaced. It saves time and the cost of making cutting tools. This machine is suitable for pre printing labels. Unwinding, rotary die-cutting, slitting, and rewinding are completed in one process. It can operate in both semi rotary mode and full rotary mode. This machine has the characteristics of compact structure, fast speed, high efficiency, convenient operation, accurate cutting, and smooth operation.
2. Main Technical Parameters:
| Slitting speed | 120m/min |
| Die-cutting speed | 50m/min (intermittent) |
| 120m/min (full-rotary) | |
| Max web width | 350mm |
| Max unwinding diameter | 600 mm |
| Max rewinding diameter | 600 mm |
| Die cutting length | 480mm (intermittent) |
| 570mm (full rotary) | |
| Machine size | 2200* 1300* 1500mm |
| Machine weight | 1600kgs |
| Voltage | 380V, 3P |
| Power | 15KW |
| Standard magnetic cylinder | 150T(480mm) |
| Slitting width | 12-350mm |
| Die cutting precision | +-0.15mm |
Machine details:

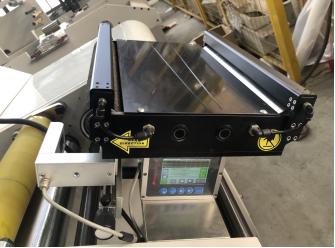

1:web guide
2:Servo motor:

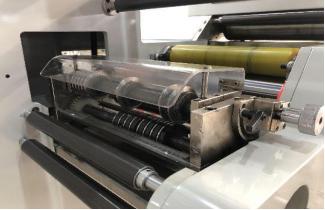

3:slitting part:

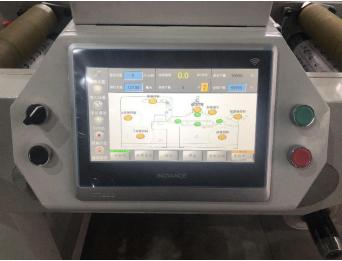

4:touch screen:
5:die cutting station:

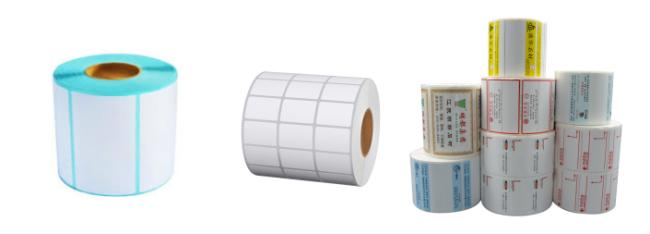

6:samples:
Support and Services:
We provide technical support and services for SEMI ROTRAY INTERMITTENT DIE CUTTING SNOWBALL TYPE WASTE REWINDING DEVICE WITH SLITTING STATION TURRET REWINDING OPTION. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for SEMI ROTRAY INTERMITTENT DIE CUTTING SNOWBALL TYPE WASTE REWINDING DEVICE WITH SLITTING STATION TURRET REWINDING OPTION. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for SEMI ROTRAY INTERMITTENT DIE CUTTING SNOWBALL TYPE WASTE REWINDING DEVICE WITH SLITTING STATION TURRET REWINDING OPTION. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
Packing and Shipping:
SEMI ROTRAY INTERMITTENT DIE CUTTING SNOWBALL TYPE WASTE REWINDING DEVICE WITH SLITTING STATION TURRET REWINDING OPTION is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
