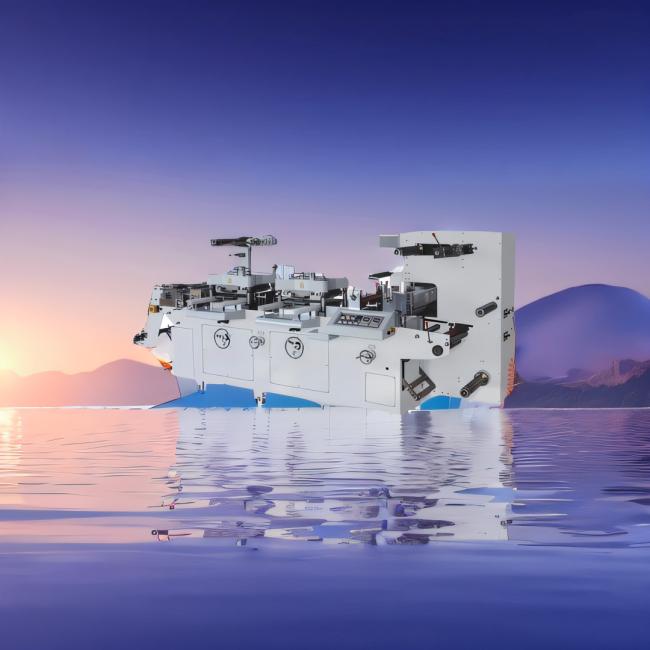

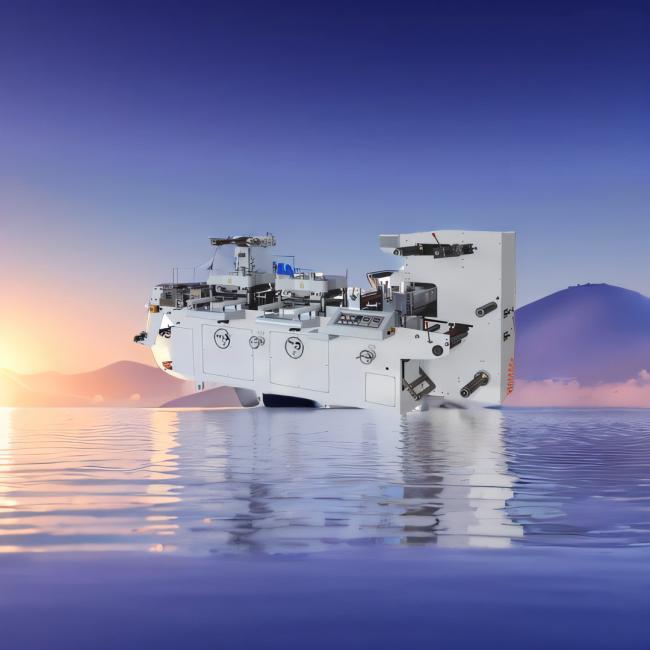

MQ-320Z DOUBLE HEAD DOUBLE STATION FLATBED DIE CUTTING MACHINE 300TIMES/MINUTES HOT STAMPING FUNCTION 300MM*300MM CUT

http://www.youtube.com/@labelturretrewindingmachinery

1. Performance characteristics

2.Unwinding section
A.Unwinding air shaft
B.Friction type tension controlled
C.Unwinding traction pulling roller
D.Unwinding dacing roller
E. Automatic deviation correction
F. Color tracking

3. Die cutting part
A. 5.5KW main motor
B. Automatic circulating lubrication system
C. Main bearing (Harbin)
D. Spring
E. Body Casting Assembly
F. Die cutting station assembly

4. Material pulling part
A. Pulling servo motor (Inovance, China)
B. Pulling rubber roller (rubber)
C. Bearing (Harbin)
D. Synchronous belt (Ningbo Fulong)

5. Waste collection
A. Waste shaft
B. Magnetic clutch

6. Rewinding section
A. Rewinding dacing roller
B. Rewinding traction rubber roller
C. Rewinding traction motor
D. Rewinding air shaft
E. Magnetic clutch

7. sheet cutting section
A. Steel cutting knife
B. Electromagnetic brake clutch

8. Electric control part
A. Controller PLC (China Inovance)
B. Servo motor driver (Inovance, China)
C. Touch screen (MCGS)
D. Host Inverter (Schneider, France)
E. Color tracking (German Leuze)
F. Proximity switch (Dongtou Baideli)
G. Knife control board (Supreme)
I. Switching power supply (Taiwan Mingwei)
J. Relay (China Chint)
K. Button (Schneider, France)
L. AC contactor (China Chint)

9.Sheet metal, cover,paint ect

10. Others
A. Toolbox
B. Instructions

Support and Services:

We provide technical support and services for MQ-320Z DOUBLE HEAD DOUBLE STATION FLATBED DIE CUTTING MACHINE 300TIMES/MINUTES HOT STAMPING FUNCTION 300MM*300MM CUT. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.

At our facility, we provide a full range of services for MQ-320Z DOUBLE HEAD DOUBLE STATION FLATBED DIE CUTTING MACHINE 300TIMES/MINUTES HOT STAMPING FUNCTION 300MM*300MM CUT. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.

Our goal is to provide the best technical support and services for MQ-320Z DOUBLE HEAD DOUBLE STATION FLATBED DIE CUTTING MACHINE 300TIMES/MINUTES HOT STAMPING FUNCTION 300MM*300MM CUT. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.

Packing and Shipping:

MQ-320Z DOUBLE HEAD DOUBLE STATION FLATBED DIE CUTTING MACHINE 300TIMES/MINUTES HOT STAMPING FUNCTION 300MM*300MM CUT is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.

Machines are shipped via air or sea freight, depending on the customer’s preference.

FAQ:

Q: What is the Minimum Order Quantity of MQ-320Z DOUBLE HEAD DOUBLE STATION FLATBED DIE CUTTING MACHINE 300TIMES/MINUTES HOT STAMPING FUNCTION 300MM*300MM CUT?

A: The Minimum Order Quantity is 1.
