Product Description:

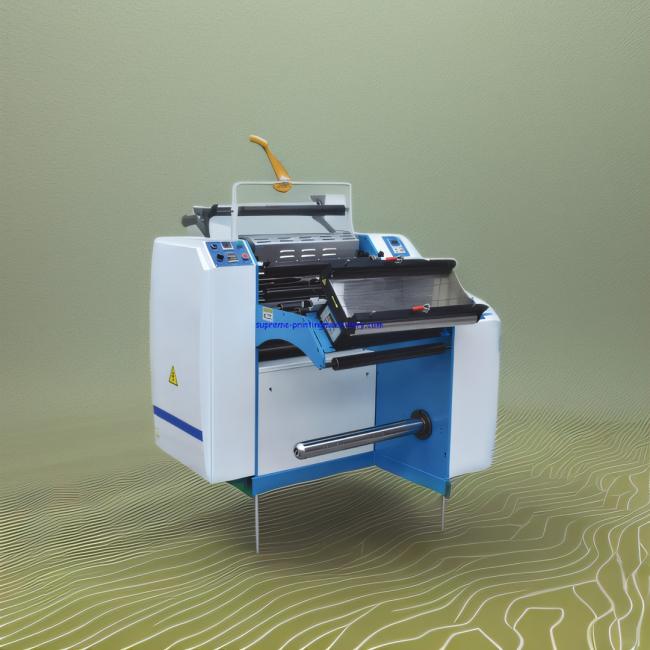

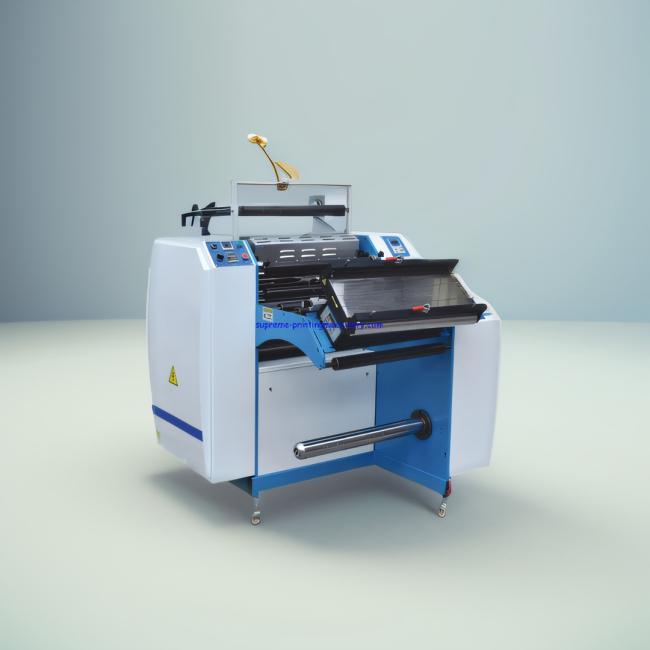

This machine boasts a compact structure, which greatly reduces land space requirements for enterprises. It features oil pressure constant temperature heating control that ensures top quality of printed products. Cost-efficiency can be achieved as the machine adopts pre-coating film which is cheaper than the ordinary cold film. Magnetic powder tension control for unwinding and rewinding is applied to this machine in order to guarantee the quality. An automatic web guide is also equipped, which enables perfect coating of even products and thus helps to save materials.

In conclusion, this machine is a must-have post press helper for major printing enterprises. It is highly efficient in production, cost-saving in use and ensures maximum quality.

Applications:

Customization:

• Brand Name: Supreme
• Model Number: FM-350
• Place of Origin: China
• Certification: CE
• Minimum Order Quantity: 1
• Price: Negotiation
• Packaging Details: Fumigation Wooden Box
• Delivery Time: 30-60 Working Days
• Payment Terms: TT; LC
• Supply Ability: 20sets/month
• Max Laminating Speed: 65m/min
• Warranty: 1 Year
• Machine Size: 1655*1030*1235mm
• Model: FM-350
• Suit for Paper Thickness: 105-500gsm

Using a roll laminating machine is a simple process that requires minimal effort. First, adjust the desired settings on the machine's control panel. Then, feed the appropriate-sized paper into the machine. Once the paper has been fed into the machine, it will begin to be laminated in a continuous roll. The finished product will then be discharged into a tray or onto a winding spool.

Support and Services:

We provide comprehensive technical support and service for our SEMI-AUTOMATIC PRE-COATING FILM LAMINATING MACHINE FOR 105-500GSM PAPER THICKNESS COST-EFFICIENCY CE CERTIFICATED SAFETY. We offer a range of services, including:

• Technical guidance and troubleshooting
• Repair and maintenance of machines
• Spare parts supply and replacement
• Software upgrade and installation
• Regular maintenance and inspections

Our technical support team is available 24/7 to ensure that your machines are functioning properly and that your labels are produced quickly and accurately. We strive to provide the most reliable and cost-effective technical support and service for our customers.

Packing and Shipping:

The SEMI-AUTOMATIC PRE-COATING FILM LAMINATING MACHINE FOR 105-500GSM PAPER THICKNESS COST-EFFICIENCY CE CERTIFICATED SAFETY will be shipped on a pallet, fumigaton wooden box for protection. It will be packaged in a sturdy wooden crate for added safety. Our shipping department will use the most cost-effective method to ensure safe and timely delivery.

FAQ:

Q1: What is the brand name of SEMI-AUTOMATIC PRE-COATING FILM LAMINATING MACHINE FOR 105-500GSM PAPER THICKNESS COST-EFFICIENCY CE CERTIFICATED SAFETY?

A1: The brand name of SEMI-AUTOMATIC PRE-COATING FILM LAMINATING MACHINE FOR 105-500GSM PAPER THICKNESS COST-EFFICIENCY CE CERTIFICATED SAFETY is Supreme.

Q2: What is the model number of SEMI-AUTOMATIC PRE-COATING FILM LAMINATING MACHINE FOR 105-500GSM PAPER THICKNESS COST-EFFICIENCY CE CERTIFICATED SAFETY?

A2: The model number of SEMI-AUTOMATIC PRE-COATING FILM LAMINATING MACHINE FOR 105-500GSM PAPER THICKNESS COST-EFFICIENCY CE CERTIFICATED SAFETY is FM-350.

Q3: Where is SEMI-AUTOMATIC PRE-COATING FILM LAMINATING MACHINE FOR 105-500GSM PAPER THICKNESS COST-EFFICIENCY CE CERTIFICATED SAFETY made?

A3: SEMI-AUTOMATIC PRE-COATING FILM LAMINATING MACHINE FOR 105-500GSM PAPER THICKNESS COST-EFFICIENCY CE CERTIFICATED SAFETY is made in China.

Q4: Does SEMI-AUTOMATIC PRE-COATING FILM LAMINATING MACHINE FOR 105-500GSM PAPER THICKNESS COST-EFFICIENCY CE CERTIFICATED SAFETY has CE certification?

A4: Yes, SEMI-AUTOMATIC PRE-COATING FILM LAMINATING MACHINE FOR 105-500GSM PAPER THICKNESS COST-EFFICIENCY CE CERTIFICATED SAFETY has CE certification.

Q5: What is the minimum order quantity of SEMI-AUTOMATIC PRE-COATING FILM LAMINATING MACHINE FOR 105-500GSM PAPER THICKNESS COST-EFFICIENCY CE CERTIFICATED SAFETY?

A5: The minimum order quantity of SEMI-AUTOMATIC PRE-COATING FILM LAMINATING MACHINE FOR 105-500GSM PAPER THICKNESS COST-EFFICIENCY CE CERTIFICATED SAFETY is 1.



Specifications:

model	FM-350
Max paper diameter	600mm
Suit for paper thickness	105-500gsm
Max laminating speed	65m/min
Total power	16.5kw
Machine weight	450kg
Machine size	1655*1030*1235mm



1:The Orange-red baffle in the image is used to limit the position of the web paper, so as to avoid beyond the scope of correction

during processing.

2:The yellow part in the image shows the manual oil pump, and above the oil pump is an oil pressure gauge for easy operation and monitoring of oil pressure at any time. The black valve body is locked to prevent oil pump pressure drop. The blue valve body at the bottom serves as a pressure regulating function, allowing for specified pressure and making it easier to achieve the required pressure by adjusting it

3:Image 1 shows the overall deviation correction device. image 2 shows a U-shaped opposing sensor, which has high accuracy in correcting deviation and can accurately correct deviation regardless of the transparency of the material

4:When one roll is finished and the next roll is replaced. Having this device can avoid frequent machine adjustments, paper threading, and positioning. Reduce machine stopping time

5:216mm large diameter heating roller. The surface of the roller is polished with a mirror, providing a better texture, durability, and wear resistance. Stable heating.

6:Commonly used for pre coating films with poor quality, wrinkles, unevenness, and uneven left and right sides. The left and right eccentric blocks can be adjusted appropriately. Maintain consistent tension between the left and right sides of the film to avoid wrinkling before entering the heating roller and affecting the quality of the film coating

7:This machine adopts three tile type expansion shafts and abandons the fixed mode of air expansion shaft, completely freeing the machine from the constraints of the air compressor. Tile type expansion shaft is more convenient and fast

8:Effectively control the tension of the film release shaft to prevent wrinkling caused by relaxation of the pre coated film, which affects the processing effect.

9:paper drawing:
