Ultra Flexible KE-2060 SMT Placement Machine SMT Mounter

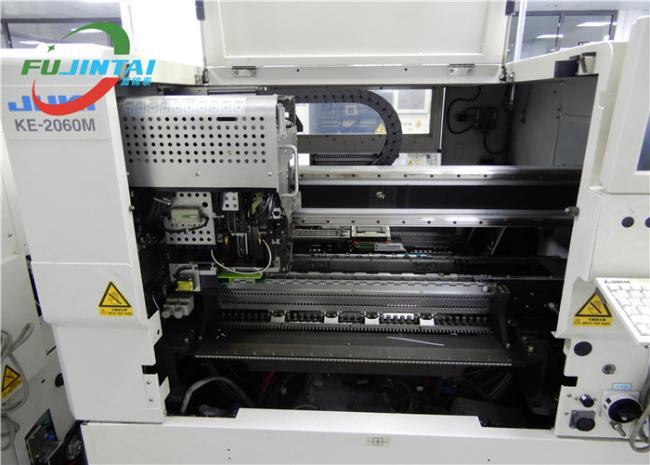

Model KE - 2060M SMT Placement Machine 330 × 250mm Substrate Size
Description:
The ultra-flexible KE-2060 can place a wide range of components from 0603 and ICs, to odd-form, all at a high rate of speed.
The best flexible placement system for high-density placements.
Features:
In addition to machine complex shapes corresponding to the opposite sex IC or components, it also has a small component of high-speed placement capacity.
• 12,500 CPH: chip(laser identification/ actual production efficiency)
• 1,850 CPH: IC(Image recognition/ actual production efficiency)
• 3,400 CPH: IC(Image recognition/ use MNVC)
• One multi-nozzle laser head(4 nozzles) plus one high resolution head(1 nozzle)
• 0603 chip(0201) ~ 33.5mm square components
• 0402(01005) as a factory option
• Vision centering system(featuring bottom, side, and back lighting, ball recognition and split recognition)
※ Actual throughput may vary.
※ Please download brochure for details.
Specifications:
|
Board size
|
M size(330×250mm) | ○ |
| L size(410×360mm) | ○ | |
| L-wide(510×360mm) | ○ | |
| E size(510×460mm)*1 | ○ | |
| Component size | Laser recognition | (0201)~33.5mm square components |
| Vision recognition |
1.0×0.5mm* 2~74mm square components Or 50×150mm (0402 (01005) required option)* 9 |
|
| Placement speed | Chip | 12,500 CPH* 3-chip components |
| IC |
1,850 CPH* 3* 4 3,400 CPH* 5 |
|
| Placement accuracy | Laser recognition | ±0.05mm |
| Vision recognition | ±0.04mm | |
| Feeder inputs | Max. 80 on 8mm T/F* 4 | |
|
Device size* 7(WxDxH* 8) |
1,400×1,393×1,440 mm | |
| Weight |
Approx 1,410kg |
|
※ The best flexible placement system for high-density placements.
