Easy Operate KJ-02 SMT Placement Machine with good condition

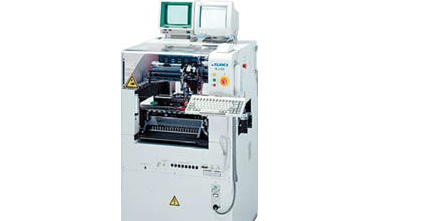

Second Hand SMT Machine JUKI KJ-02 Flex Chip With Good Condition
Description:
High-precision compact mounter that can be used flexibly for prototyping, variety and variable quantity production. It has a compact body with a height of 1.3m and saves installation space approx.
Features:
30% compared with previous models. It can be operated, moved and laid out easily. It has high placement precision equivalent to higher models, so it can place the latest components, such as 0603 chips.
■ 0.76 Sec. / Component: chip (laser centering/ optimal)
■ 2.00 Sec. / Component: IC (Vision centering/ optimal)
■ One laser alignment sensor (1 nozzles) plus One VCS (Vision Centering System) Camera
■ From 0603 (0201) to 50mm square components
※ Actual throughput may vary.
Specifications:
| Board size | Max | 203.2×152.4mm |
| Min | 50×30mm | |
| Component size | Laser recognition |
0603 (0201)～□20mm or 23.5×11mm |
| Vision recognition |
□3mm～□24mm |
|
| Placement speed | Laser recognition |
0.76 sec./ component |
| Vision recognition |
2 sec./ component |
|
| Placement accuracy | Laser recognition | ±0.05mm |
| Vision recognition | ±0.04mm | |
| Feed inputs | Max. 40 on 8mm T/F*2 | |
※ Note: 1. When using large VCS camera.
2. 20 on 8mm T/F if the size of board is 330(X) mm x 250(Y) mm.
