It is applicable for pile-group works and is recommended strongly by the construction department and the supervision department.
The low-cost hydraulic pile breakers can be easily handled for efficient, low-noise and safe operation.
It imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile, and it shortens the construction period greatly.

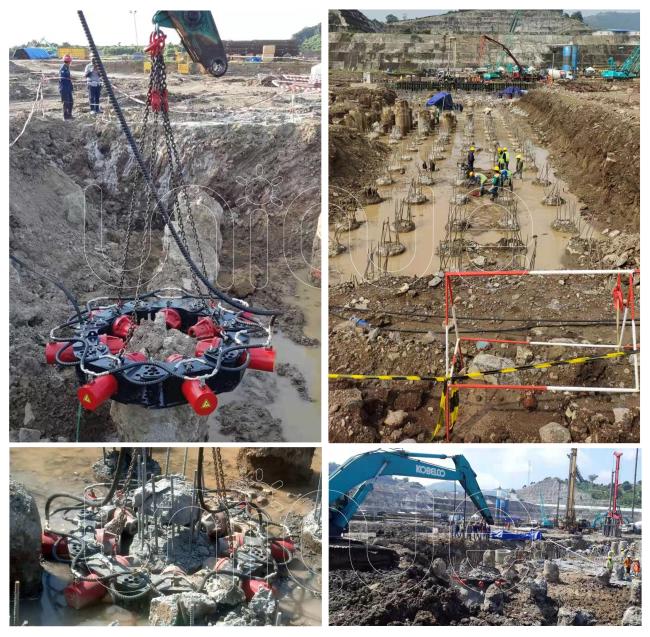

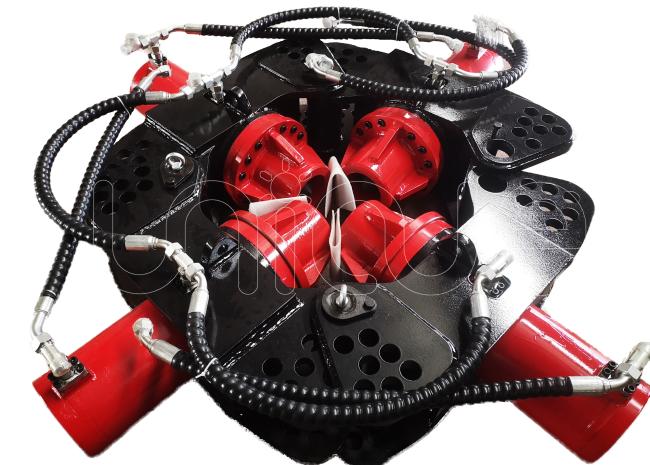

The construction of modern buildings requires of foundation piling. In order to better connect the foundation piles to the ground concrete structure, the foundation piles generally stretch out 1 to 2 meters from the ground to keep the steel bars intact on the ground. The pile breaker is specially used to break the foundation piles on the ground.

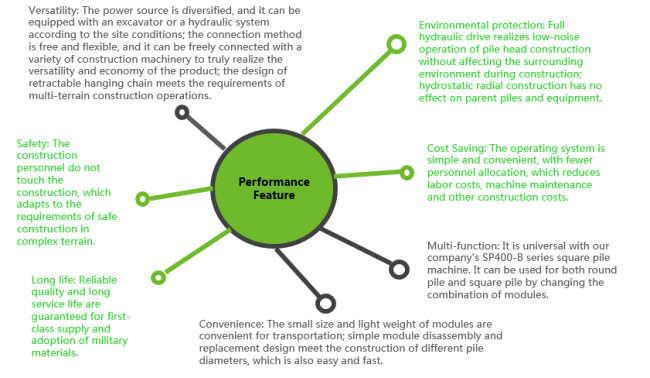

Performance Feature

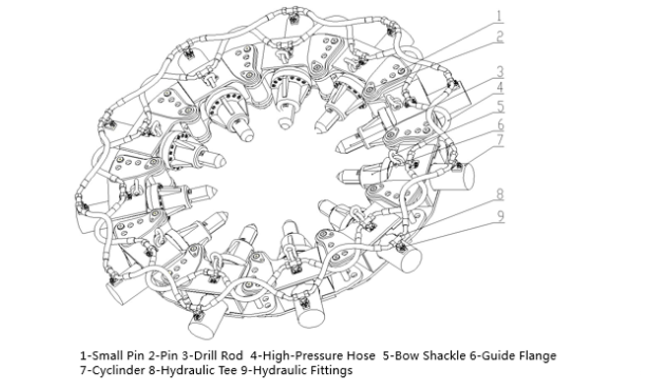

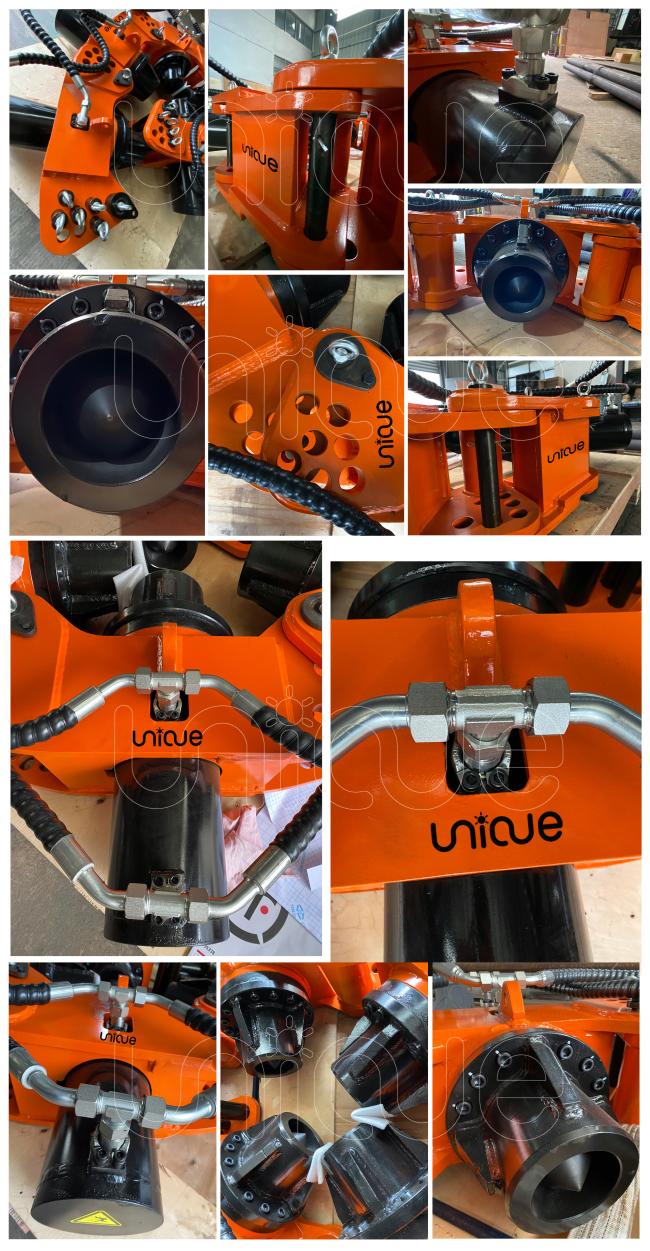

Parts and Components
Parameter—UP400
| 1 | Performance | |
| 2 | Model | UP400 |
| 3 | Range of pile diameter (mm) | Φ950-Φ1050 |
| 4 | Maximum drill rod pressure | 320KN |
| 5 | Maximum stroke of hydraulic cylinder | 150mm |
| 6 | Maximum pressure of hydraulic cylinder | 34.3Mpa |
| 7 | Maximum flow of single cylinder | 25L/min |
| 8 | Number of pile cut/8h | 60 PCS |
| 9 | Height for pile cut each time | ≤300mm |
| 10 | Tonnage of supporting digging machine (excavator) | ≥20t |
| 11 | One-piece module weight | 110kg |
| 12 | One-piece module size | 604×594×286 |
| 13 | Work status dimensions | Φ2268×2500 |
| 14 | Total weight of pile breaker | 1.5t |
Construction Parameter—UP400
| Module numbers | Diameter range(mm) | Platform weight(t) | Weight(kg) | Height of single cut pile(mm) |
| 7 | 300-400 | ≥12 | 920 | ≤300 |
| 8 | 450-500 | ≥13 | 1030 | ≤300 |
| 9 | 550-625 | ≥15 | 1140 | ≤300 |
| 10 | 650-750 | ≥18 | 1250 | ≤300 |
| 11 | 800-900 | ≥21 | 1360 | ≤300 |
| 12 | 950-1050 | ≥26 | 1470 |
≤300
|
Parameter— UP880
|
UP880 (13 Modules) |
UP686 Upgraded Version | |
| 1 | Performance | |
| 2 | Model | UP880 |
| 3 | Range of pile diameter (mm) | Φ1850-Φ2000 |
| 4 | Maximum pressure of hydraulic cylinder | 34.3Mpa |
| 5 | Number of pile cut/8h | 20-100 |
| 6 | Height for pile cut each time | ≤300mm |
| 7 | Tonnage of supporting digging machine (excavator) | ≥35t |
| 8 | One-piece module weight | 381kg |
| 9 | One-piece module size | 908×780×400 |
| 10 | Work status dimensions | Φ3200×3000 |
| 11 | Total weight of pile breaker | 5t |
| 12 | Maximum Drill Rod Pressure | 790kn |
| 13 | Maximum Stroke of Hydraulic Cylinder | 205mm |
Construction Parameter– UP880
| UP880 Construction Parameter | ||||
| Module numbers | Diameter range(mm) | Platform weight(t) | Weight(kg) | Height of single cut pile(mm) |
| 6 | 500-600 | ≥20 | 2335 | ≤300 |
| 7 | 650-800 | ≥22 | 2720 | ≤300 |
| 8 | 850-1000 | ≥26 | 3100 | ≤300 |
| 9 | 1050-1200 | ≥27 | 3480 | ≤300 |
| 10 | 1250-1400 | ≥30 | 3860 | ≤300 |
| 11 | 1450-1600 | ≥32 | 4240 | ≤300 |
| 12 | 1650-1800 | ≥35 | 4620 | ≤300 |
| 13 | 1850-2000 | ≥36 | 5000 | ≤300 |
Parameter-- UP480
| 1 | Model | UP480 |
| 2 | Range of pile diameter (mm) | 300-400mm |
| 3 | Maximum drill rod pressure | 320KN |
| 4 | Maximum stroke of hydraulic cylinder | 150mm |
| 5 | Maximum pressure of hydraulic cylinder | 34.3Mpa |
| 6 | Maximum flow of single cylinder | 25L/min |
| 7 | Number of pile cut/8h | 160 |
| 8 | Height for pile cut each time | ≤300mm |
| 9 | Tonnage of supporting digging machine (excavator) | ≥8t |
| 10 | One-piece module weight | 110kg |
| 11 | One-piece module size | 604×594×286 |
| 12 | Work status dimensions | 1600×1600×2000 |
| 13 | Total weight of pile breaker | 650kg |
Parameter-- UP580
| 1 | Model | UP580 |
| 2 | Range of pile diameter (mm) | 400-500mm |
| 3 | Maximum drill rod pressure | 320KN |
| 4 | Maximum stroke of hydraulic cylinder | 150mm |
| 5 | Maximum pressure of hydraulic cylinder | 34.3Mpa |
| 6 | Maximum flow of single cylinder | 25L/min |
| 7 | Number of pile cut /8h | 120 |
| 8 | Height for pile cut of each time | ≤300mm |
| 9 | Tonnage of supporting digging machine (excavator) | ≥15t |
| 10 | One-piece module weight | 200kg |
| 11 | One-piece module size | 595×980×275 |
| 12 | Work status dimensions | 1710×1710×2500 |
| 13 | Total weight of pile breaker |
960kg
|
Parameter-- UP580-B
| UP580-B | UP580-B Modules can be also used for UP880 | |
| 1 | Performance | |
| 2 | Model | UP580-B |
| 3 | Range of pile diameter (mm) | 250-500mm |
| 4 | Maximum pressure of hydraulic cylinder | 34.3Mpa |
| 5 | Number of pile cut/8h | 20-100 |
| 6 | Height for cut pile each time | ≤300mm |
| 7 | Tonnage of supporting digging machine (excavator) | ≥20t |
| 8 | One-piece module weight | 381kg |
| 9 | One-piece module size | 908×780×400 |
| 10 | Work status dimensions | 2060*2060*2500 |
| 11 | Total weight of pile breaker | 2t |
