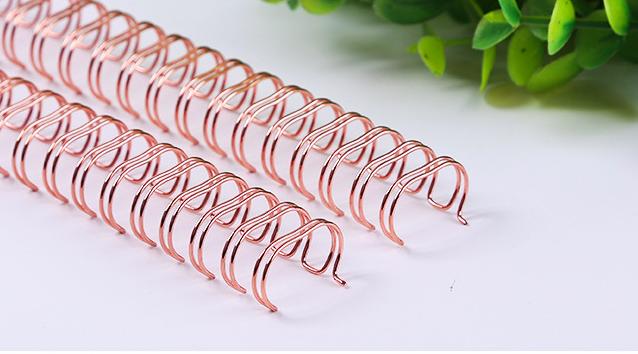

9.5mm Metal Spiral Binding Coils
Fast Supply Single Metal Spiral Binding Coils In Box Packing
Applications:
Widely use for stationery items. such as reports,books,surveys,sales presentations, reference materials, training manuals, cookbooks,calendars, notebooks,proposals,summaries etc.
Specifications :
| Coil Inner Diameter | Recommended Max.Book Thickness | Pitch | |
| Inch | MM | MM | MM |
| 1/4 | 6.4 | 3.4 | 6 |
| 5/16 | 7.9 | 4.9 | 6 |
| 3/8 | 9.5 | 6.5 | 6 |
| 7/16 | 11.1 | 8.1 | 6 |
| 1/2 | 12.7 | 9.7 | 6 |
| 9/16 | 14.3 | 11.3 | 6 |
| 5/8 | 15.9 | 12.9 | 6 |
| 3/4 | 19.1 | 15.1 | 6 |
| 7/8 | 22.2 | 18.2 | 6 |
| 1 | 25.4 | 20.4 | 6 OR 8 |
| 1-1/4 | 31.8 | 25.8 | 6 OR 8 |
| 1-1/2 | 38.1 | 32.1 | 6 OR 8 |
| 2 | 50.8 | 42.8 | 6 OR 8 |
| 3 | 76.2 | 60 | 6 OR 8 |
| 4 | 100 | 80 | 6 OR 8 |
Advantage :
1. Factory supply with competive price ;
2. Wide range of color choice ;
3. Pre-cutting service for free ;
4. Widely used in various kinds of booking binding ;
5. Fast delivery .
Note: the total length of the two kinds of pitch products is the same, and it is suitable to bind A4 (297mm) long side. If you need to bind A3, you can directly bind the short edge of A3 (297mm). If you need to bind non-standard size, please contact customer service to arrange customized.

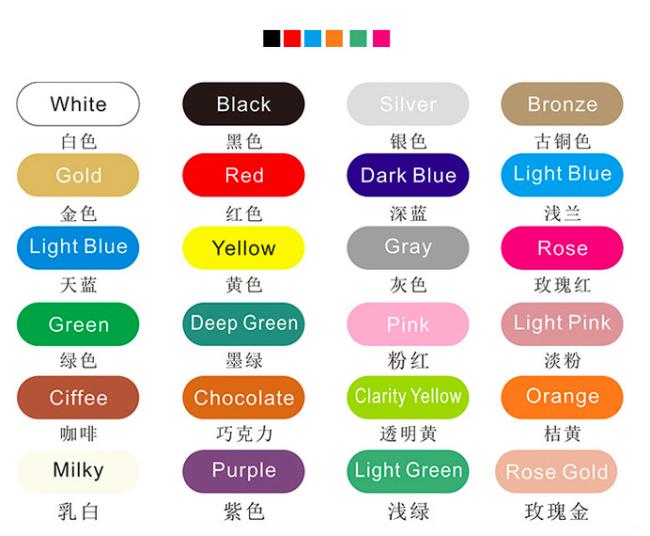

Custom Color
