8 layers 500m3/h HEPA Solder Fume Extractor For Laser Cutting
Laser cutting medium engrave weld fume extractor micro computer control digital display
Features:
1, Micro computer chip control digital display remote control
2, Brushless DC motor stable performance,long service life
3,Filter element failure alarm system
4, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;
5, Durable mental frame structure
Instructions:
| Power(W) | 350 |
| Dimension(mm) | 550*415*920 |
| Air Flow(m3/h) | 450 |
| Noise(db) | <70 |
| Voltage | 110/220 |
| No-load speed(r/min) | 4200 |
| Wind spped(m/s) | 19 |
| Weight(kg) | 52.5 |
| Negative pressure(pa) | 2500 |
Advantages:
1. Long service life, low cost, continuous 24-hour work, can use 40000 hours (i.e. normal use for eight to ten years)
2..Multi layer filtration, rapid purification, filter failure sound and light alarm.
3.Independent research and development of hall less brushless DC motor, high efficiency, long life, zero consumables and zero maintenance, support continuous 24-hour use.
4. High negative pressure, high flow, small volume, light weight, easy installation, flexible filter replacement.
5,Multiple filtration ensures complete purification of harmful smoke and dust
FAQ
Q:What are the application fields of your products?
A:Laser marking, laser welding, laser coding, laser cutting, laser cladding, laser cleaning, grinding, polishing, drilling and so on
Q:How long is the tube standard configuration?
A:The 75mm bamboo joint pipe is standard for 1.4m, and the 55mm bamboo joint pipe is standard for 1.2m. (Soft pipe and high temperature pipe are configured according to customer needs, but the shorter the better).
Q:What is the approximate life of the product in continuous operation?
A:The motor life is 40,000 hours (continuous 24 hours) will not be broken, need to consider environmental factors. Usually for 4-5 years it won't be a problem
Q:How does it work?
A:Physical principle: interception → activated carbon adsorption → clean air through layers of filters

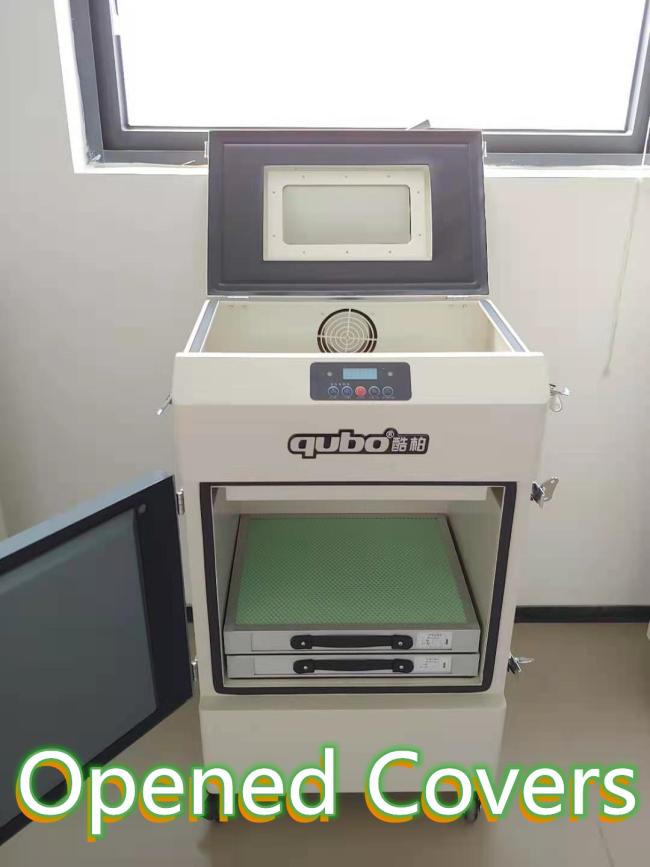

Product part picture:
