Lightweight Mini Fume Extractor For Hand Soldering
Mini Size Fume Extractor For Hand Soldering Lightweight With Filter
Features:
1. Long service life, low cost, continuous 24-hour work, can use 40000 hours (i.e. normal use for eight to ten years)
2. Noise canceling design,quieter working place
3. Multiple filtration ensures complete purification of harmful smoke and dust
4. Compact design machine with 4 universal wheel under,easy to move and storage
5. Removabel hook and cover,change the filter and check the filter condition easyier
Instructions:
| Power(W) | 35/60/80 |
| Dimension(mm) | 300*270*300 |
| Air Flow(m3/h) | 75/100/110 |
| Noise(db) | <52/57/59 |
| Voltage | 110/220 |
| No-load speed(r/min) | 5800 |
| Wind speed(M/S) | 17 |
| Weight(kg) | 4.5 |
| Negative pressure(pa) | 1000-2000 |
Advantages:
1 Brushless DC moter,stable long service life
2 Multiple filtration design,rapid purification
3 Replaceable efficient filter
4 Noise canceling design,quieter working place
5 Multiple filtration ensures complete purification of harmful smoke and dust
FAQ:
Q: Can the filter element be replaced separately?
A: Yes, each layer can be replaced independently
Q: Can smoking pipes be shortened or lengthened at will?
A: It can be shortened or lengthened appropriately; But too long fixation is relatively poor, because there is no support point, easy to sag, it is recommended that the length of bamboo pipe should not exceed 1.5 meters, high temperature resistant pipe and hose should not exceed 2M. (depending on model)
Q: What are the diameter specifications of smoking pipe?
A: Smoking pipe diameter of 50 mm, 65 mm, 75 mm, 90 mm, 100 mm, 120,160,200,300 is usually a PVC material. It can also be customized according to the diameter of the on-site pipeline.
Q: Can the purified air meet the requirements of the environmental assessment?
A: The purified air is 300 to 500 times cleaner than the air we breathe normally. The products have passed the "CE" certification and "PONY" test of the European Union, and meet the requirements of environmental assessment and export standards.
Q: Can the purified air meet the requirements of the environmental assessment?
A: The purified air is 300 to 500 times cleaner than the air we breathe normally. The products have passed the "CE" certification and "PONY" test of the European Union, and meet the requirements of environmental assessment and export standards.

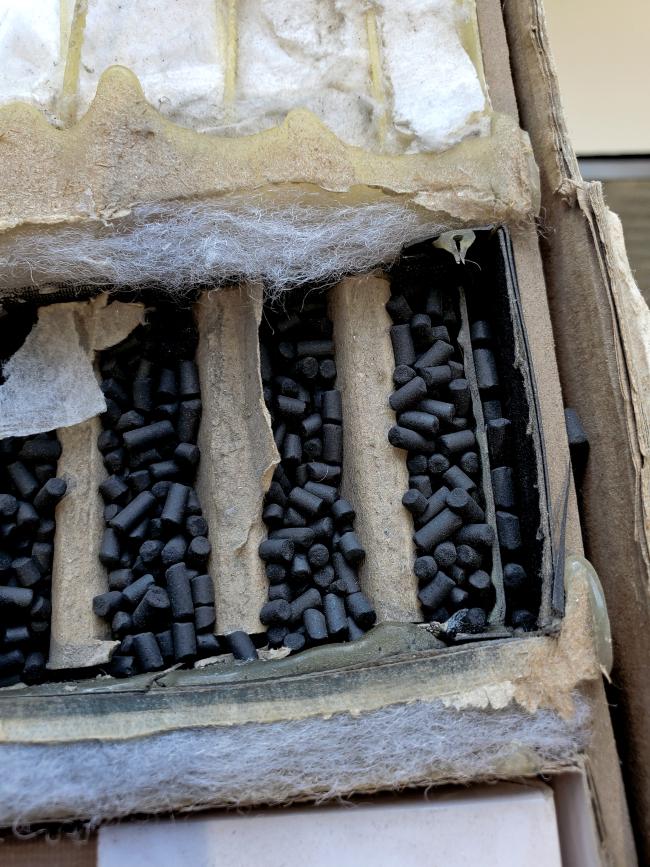

Product part picture:
