Molex 5557 Male To Female Molex Wire Harness 4.2mm Pitch Power Cable Assembly
Molex 5557 Male to Female 4.2mm Pitch Customized Power Cable Assembly
Product Specification:
| Product Name | Molex wire harness |
| Terminal Connector | Molex 5557 4.2mm housing/5559 Terminal |
| Wire Type | AWG16-22 |
| Wire Colour | Black and Red (alternative) |
| Wire Length | 100MM OR customized |
| Wire Stern | 3~5 mm Tin Dipped |
| Wire material | PVC and copper |
| Leadtime | samples 3~5 days bulk order 7-10 days |
| Certification | ROSH |
| Application | battery /led light or other Electronic products |
| Delivery Method | FedEx DHL UPS TNT Door-to-Door 3~5 days transport |
| Samples | Free charge |
| OEM ODM | OEM & ODM are Welcomed |

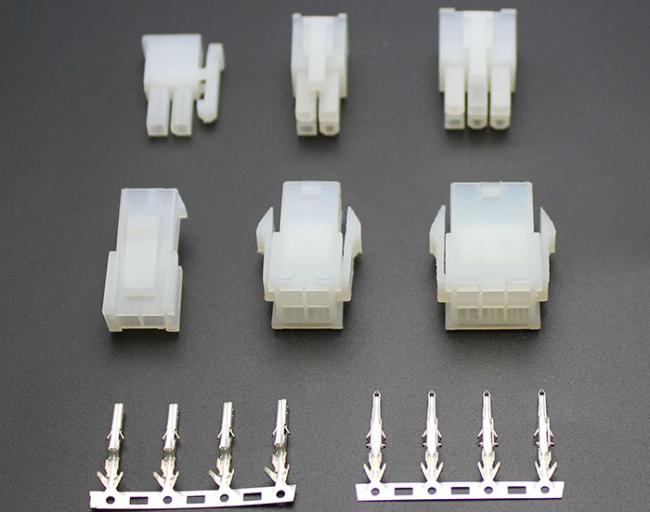

male to female molex 5557 4.2mm connector
UT4201 Series are replaced by Molex 5557/5559 connector. 4.2mm pitch, wire to board crimp terminal style with low contact resistance.
Compatible: Molex 5557/5557 Series Connector
Pitch: 4.2mm
Poles: 2-12p or 2*1-2*12p
Current rating: 9A (AWG#16-#24)
|
Items
|
Specifications
|
|
Part Number:
|
UT4201
|
|
Compatible:
|
Molex 5556/5557/5559/5569 series connector
|
|
Pitch - Mating Interface:
|
4.2mm
|
|
Circuits:
|
2P( options: 2-12P, or 2*1-2*12P)
|
|
Applicable wire:
|
AWG#16-#24 (Max.OD: 3.1mm)
|
|
Current Rating:
|
9A
|
|
Voltage Rating:
|
250V
|
|
Temperature Range:
|
-25°C~+85°C
|
|
Contact Resistance:
|
15M Omega Max
|
|
Insulation Resistance:
|
1000M Omega Min
|
|
Withstanding Voltage:
|
1500V AC/minute
|
|
Wire & Cable Assemblies:
|
Customized
|
our service:
1. We can make custom wiring harness according to customer's design.
2. Different types wires, PVC, PU, PTFE, SILICONE, XLPE, RUBBER insulated can be supplied.
3. This product applies to electrical appliances.
4. MOQ: 500PCS.
5. Delivery time: Within 5-7 days after payment.
6. Payment terms: T/T(30% in advance,the balance pay before delivery).
7. Price terms: FOB SHENZHEN.
8. Packing: Usually PE inner ,outer carton,or at buyer's option.
1) All kinds of our products are ROHS and cable are UL compliant
2) Assembled according to customers' specifications
3) Technology process: cutting, crimping, welding, assembly and testing.
Buyer's specifications are accepted
4) 100% tested before shipment
5) Stable quality, high reliability
We produce all kinds of wiring harness as per customer requirement,please send us drawing and we will always quote you good price and provide you high and stable quality products.
