EL 4.5mm pitch 3Pin Male To Female JST Connector Custom Cable Assembling
EL 4.5mm pitch 3Pin Male To Female JST Connector Custom Cable Assembling
Product Specification
| Product Name | JST EL 4.5MM 3P Male to Female cable assmbling | ||
| length | 10cm or customized | Color | black red or custom |
| wire | UL1007-18AWG | Jacket | PVC |
| pitch | 4.5MM | pins | 3pin |
| Application | Automobile | Delivery | shipped in 10 days |

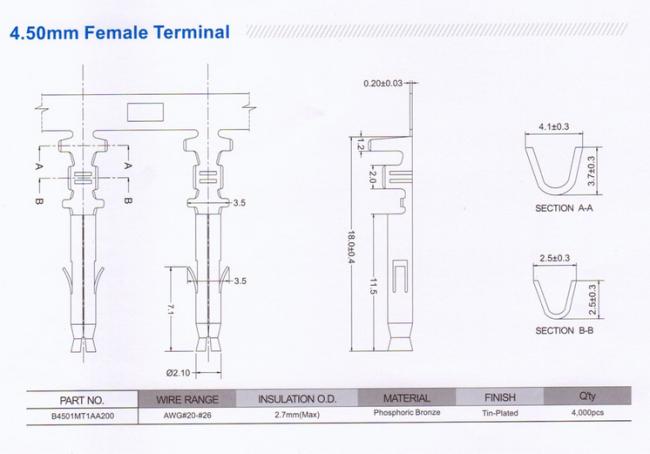

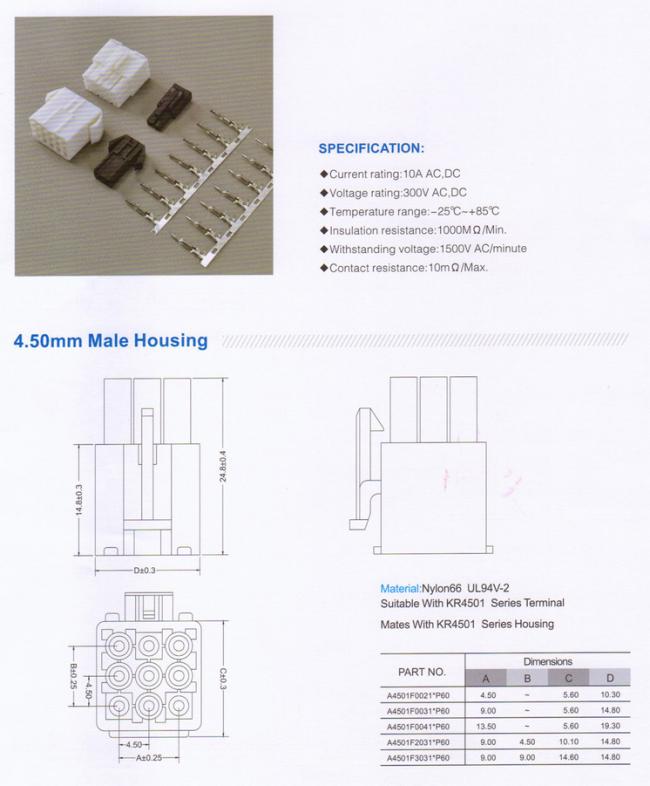

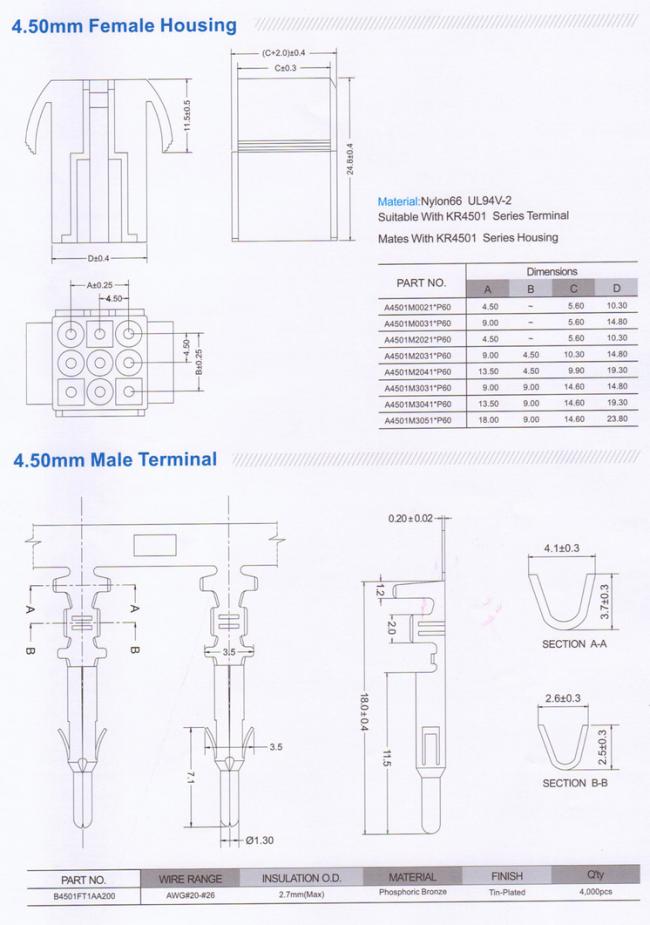

EL connector Details
Replacement: JST EL Connector
Pitch: 4.5mm
Poles: 2-6P
Voltage Rating: 300V AC/DC
Current Rating: 10-6A AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: ≤ 15mΩ
Insultaion Resistance: ≥1000mΩ
Withstand Voltage: 1500V AC/minute
|
|||||||||||||||||||||||||||||||
Order and Mass Production:
1) We will send PROFORMA INVOICE to you when the order is confirmed.
2) We will start to have mass production when confirming our sample and 30% T/T deposit received.
3) Quality is under strict manage and supervision during every production.
We are a factory in China, which manufacture wire harness with every kinds of connectors and terminals, all can be made as your requirement, please feel free to contact us if you need any help.
