High Power Lithium Polymer Battery | 10000 MAH 4S Lipo Battery Pack 14.8 V 10Ah Battery Model for Outdoor Power Stations | ROHS Compliant Made in China
High Power Lithium Polymer Battery | 10000 MAH 4S Lipo Battery Pack 14.8 V 10Ah Battery Model for Outdoor Power Stations | ROHS Compliant Made in China
Lipo Battery Specification
| Product Name | 9072145 10000mAh 14.8V lipo battery | |
| Battery Type | Rechargeable Lithium Polymer Cell | |
| Power Wh: | 148 Wh | |
| Assembly Composed Type | 4 single cell(4S1P) | |
| Nominal Capacity | 10000 mAh | @ 0.2C discharge |
| Nominal Voltage | 14.8 V | |
| Charge Voltage | 16.8±0.12 V | |
| Cut-off Voltage | 12.0 V | |
| Standard discharge Current | 2000 mA | @ 0.2C charge |
| Max. discharge current | 10000 mA | @ 1C charge |
| Standard charge Current | 2000 mA | @ 0.2C discharge |
| Max. charge Current | 10000 mA | @ 1C discharge |
| Resistance | ＜10 mΩ | |
| Weight (Approx.) | 640 g | |
| Cycle Life | Over 500 times | |
| Dimensions(T.W.L.) | 36*73*150 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10~45℃ | Less than one month |
| 0~30℃ | More than one month | |
Core Features

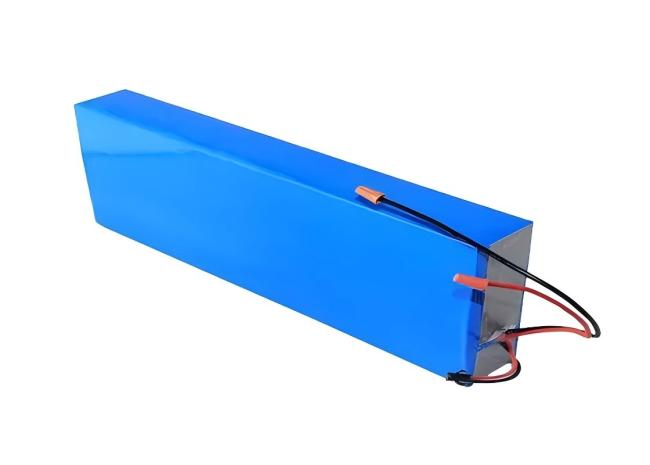

- Appearance & Protection
- The entire pack is enclosed in a blue PVC heat-shrink sleeve, providing standard insulation, moisture resistance, and scratch protection.
- Its slim, elongated rectangular shape indicates it is assembled from multiple 18650/21700 cylindrical cells in series-parallel configuration, tailored to fit narrow battery compartments (e.g., under the deck of an electric scooter).
- Connector & Wiring Design
It features two sets of wires:
- A main pair of red/black wires with an orange high-current connector (typically XT60/XT90) for high-power charge/discharge, supporting large current flow, which is typical for power-grade batteries.
- A secondary set of thin wires with an orange connector, usually the charging wire or BMS balance lead, for dedicated charging or battery status monitoring.
- This "main + auxiliary wire" design meets both high-power discharge needs and simplifies charging and battery management.
Battery Advantage:
1) Light weight and higher energy density than any rechargeable battery
2) No memory effect and rechargeable
3) Longer storage life than Ni-MH battery
4) Built-in IC chip will prevent battery pack from over charge and over discharge and prolong battery life
5) Perfect to build battery pack for bike lighting, RC toys (cars and airplanes), robots, cameras, and DVD external batteries
Unitech Company
We offer full custom solutions for lithium battery packs, power connectors, wiring harnesses, and more, including custom voltage, capacity, dimensions, connectors, and packaging to perfectly match your project requirements. Our team will reply to your inquiry within 24 hours with professional technical support, quotation, and free sample consultation.If you want to learn more details,please contact us email:Olinda@unitechelectronic.com
About Guarantee:
1. 12 months manufacturer's limited warranty for defective items (excluding items damaged and/or misused after receipt. Accessories come with a 3-month warranty.
2. Defective items must be reported and returned within the warranty period (and in the original packaging, if possible). You must tell us what the defect is and give us your order number. We do not repair or replace items with an expired warranty.
Battery Application:
GPS, machine learning,POS machine, fingerprint machines, digital cameras, camcorders, portable fax machines, electronic tracker, Emergency lights, lawn lamp, LED lights, electric shavers, voice recorder, portable power, PDA, DVD, electric toothbrushes, game consoles, wireless mouse,Bluetooth keyboard, point reading pen, MP3 / MP4, MID, laptop, game consoles etc.
