CE Certified | Long Cycle Life Lithium Polymer Battery | 24Ah 14.8 V Lipo Battery Pack with Multiple - Series Connection for Energy Storage Applications | China Factory
CE Certified | Long Cycle Life Lithium Polymer Battery | 24Ah 14.8 V Lipo Battery Pack with Multiple - Series Connection for Energy Storage Applications | China Factory
Lipo Battery Specification:
| Product Name | 24000mAh 14.8V lipo battery Pack | |
| Battery Type | Rechargeable Lithium Polymer Cell | |
| Power Wh: | 355.2 Wh | |
| Assembly Composed Type | 8 single cell(4S2P) | |
| Nominal Capacity | 24000 mAh | @ 0.2C discharge |
| Nominal Voltage | 14.8 V | |
| Charge Voltage | 16.8±0.12 V | |
| Cut-off Voltage | 3.0 V | |
| Standard discharge Current | 4800 mA | @ 0.2C charge |
| Max. discharge current | 12000 mA | @ 0.5C charge |
| Standard charge Current | 4800 mA | @ 0.2C discharge |
| Max. charge Current | 24000 mA | @ 1C discharge |
| Resistance | ＜10 mΩ | |
| Weight (Approx.) | 1800 g | |
| Cycle Life | Over 500 times | |
| Dimensions(T.W.L.) | 69*102*125 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -10 ~ 60℃ | |
| Storage Temperature | -10~45℃ | Less than one month |
| 0~30℃ | More than one month | |
Core Features
- Clear Parameter Marking
- The label clearly reads: Lithium Battery 14.8V-80Ah, indicating it is a lithium-ion pack with a nominal voltage of 14.8V and a capacity of 80Ah.
- 14.8V is the standard nominal voltage for a 4-series (4S) lithium-ion pack (3.7V per cell × 4 = 14.8V, with a full-charge voltage of ~16.8V), a common multi-cell configuration.
- The label also displays safety certifications such as CE, meeting compliance requirements for export products.
- Appearance & Protection
- The entire pack is enclosed in a blue PVC heat-shrink sleeve, with a yellow insulating layer visible at the top. Its compact cube shape indicates it is assembled from densely arranged cells (typically 18650/21700 cylindrical or prismatic cells) in parallel.
- Black bare wires are exposed, allowing users to crimp custom connectors (e.g., Anderson, XT60) to suit high-power device requirements.
- Functionality & Applications
- Key Advantages: The 80Ah high-capacity at 14.8V provides a theoretical energy of ~1184Wh. It includes an integrated BMS (Battery Management System) with protections against overcharge, over-discharge, overcurrent, short circuit, and over-temperature, making it suitable for medium-to-high power loads.
- Common Applications: Outdoor power stations, portable medical devices, industrial backup power, small UPS systems, electric mobility aids/wheelchairs, and security monitoring equipment.
Guarantee:
-Long guarantee time: 12 months from shipping date
-Defective lipo batteries caused by production can be replacement, and the new one will be sent with second shipment.
Unitech Company
We offer full custom solutions for lithium battery packs, power connectors, wiring harnesses, and more, including custom voltage, capacity, dimensions, connectors, and packaging to perfectly match your project requirements. Our team will reply to your inquiry within 24 hours with professional technical support, quotation, and free sample consultation.If you want to learn more details,please contact us email:Olinda@unitechelectronic.com
Battery Advantage:
1. steady perfgormance,long cycle life,eco-friendly,light weight
2. built-in PCM protection system,with advanced imported chip

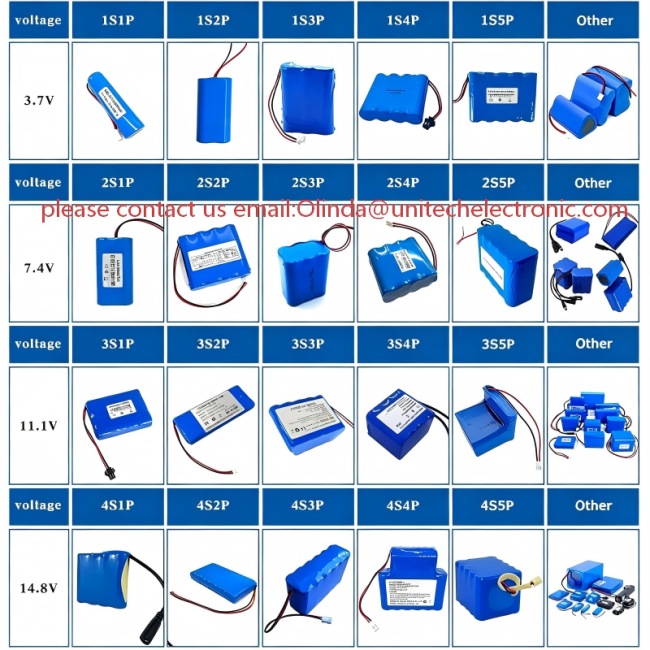

3. multiple-series connection and modularized smart design
4. OEM/ODM services is available
Battery Application:
GPS, machine learning,POS machine, fingerprint machines, digital cameras, camcorders, portable fax machines, electronic tracker, Emergency lights, lawn lamp, LED lights, electric shavers, voice recorder, portable power, PDA, DVD, electric toothbrushes, game consoles, wireless mouse,Bluetooth keyboard, point reading pen, MP3 / MP4, MID, laptop, game consoles etc.;
