MSDS Certified | Rechargeable Lithium Polymer Battery | 4S 5000mah 14.8 V Lipo Battery Pack | Over Charge Over Discharge Protection | China OEM Manufacturer
MSDS Certified | Rechargeable Lithium Polymer Battery | 4S 5000mah 14.8 V Lipo Battery Pack | Over Charge Over Discharge Protection | China OEM Manufacturer
Lipo Battery Specification:
| Product Name | 5000mAh 14.8V li-polymer battery Pack | |
| Battery Type | Rechargeable Lithium Polymer Battery | |
| Power Wh: | 74 Wh | |
| Assembly Composed Type | 4 single cell(4S1P) | |
| Nominal Capacity | 5000 mAh | @ 0.2C discharge |
| Nominal Voltage | 14.8 V | |
| Charge Voltage | 16.8±0.12 V | |
| Cut-off Voltage | 3.0 V | |
| Standard discharge Current | 1000 mA | @ 0.2C charge |
| Max. discharge current | 5000 mA | @ 1 C charge |
| Standard charge Current | 1000 mA | @ 0.2C discharge |
| Max. charge Current | 5000 mA | @ 1C discharge |
| Resistance | ＜45 mΩ | |
| Weight (Approx.) | 1800 g | |
| Cycle Life | Over 500 times | |
| Dimensions(T.W.L.) | 32*66*85 (mm) | |
| Charge Temperature | -10 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10~45℃ | Less than one month |
| 0~30℃ | More than one month | |
Core Features

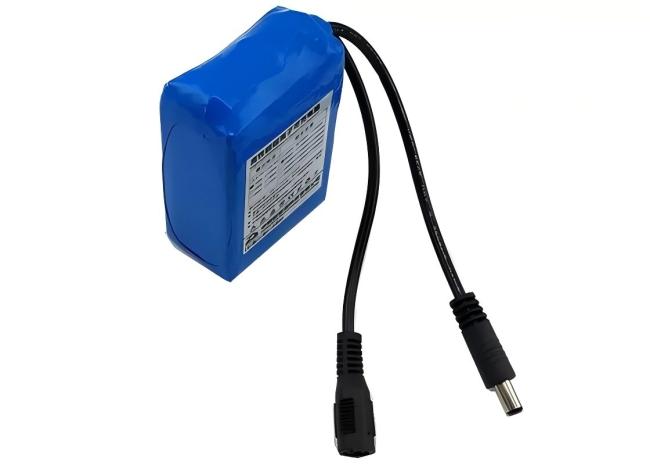

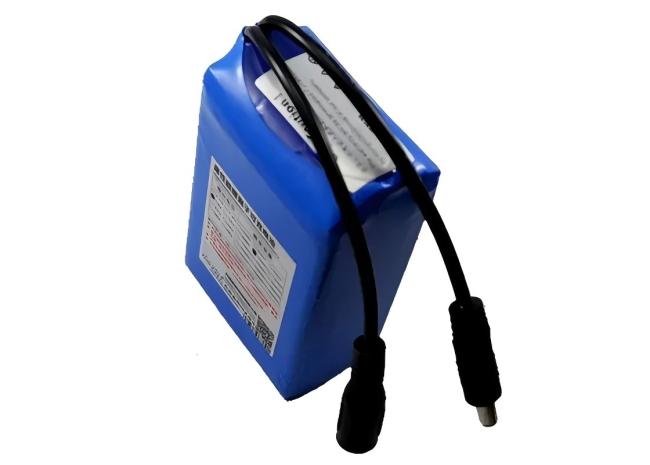

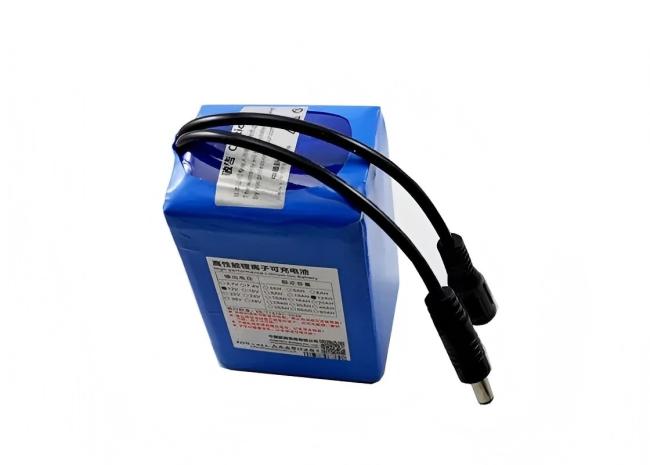

- Appearance & Protection
- The entire pack is enclosed in a blue PVC heat-shrink sleeve, providing standard insulation, moisture resistance, and scratch protection.
- A detailed specification label on the side confirms it is a "high-rate rechargeable lithium-ion battery" and lists optional voltage ratings (e.g., 3.7V, 7.4V, 12V) and corresponding capacities, indicating it is an industrial-grade customizable power pack.
- Connector & Wiring Design
- It features two black DC barrel plugs (male connectors): one for charging and the other for discharging/powering devices. This separated charge/discharge design prevents current interference, improving safety and stability.
- The DC interface is a universal power connector widely used in security cameras, LED light strips, routers, and small electronic devices, offering excellent compatibility.
- Functionality
- Key Advantages: Built with high-rate cells and an integrated BMS (Battery Management System), the pack supports stable charge/discharge cycles with protection against overcharging, over-discharging, overcurrent, and short circuits.
- Common Applications: Security surveillance cameras, LED lighting systems, portable routers, small water pumps, industrial control equipment, and outdoor backup power supplies.
Warranty:
We will be responsible for replacing the cell against defects or poor workmanship for 12 months from the date of shipping. Any other problem caused by malfunction of the equipment or mix-use of the cell is not under this warranty.
Battery Advantage:
1.steady perfgormance,long cycle life,eco-friendly,light weight
2.built-in PCM protection system,with advanced imported chip
3.multiple-series connection and modularized smart design
4. Low self-discharge and Low internal resistance
5. Long cycle life, chargeable up to 500 times
6. Doesn’t contain Mercury, No fire, No explosion, No leakage
7.OEM/ODM services is available
Unitech Company
We offer full custom solutions for lithium battery packs, power connectors, wiring harnesses, and more, including custom voltage, capacity, dimensions, connectors, and packaging to perfectly match your project requirements. Our team will reply to your inquiry within 24 hours with professional technical support, quotation, and free sample consultation.If you want to learn more details,please contact us email:Olinda@unitechelectronic.com
Battery Application:
1.Illuminate devices: miner lamp, searchlight.
2.Portable office devices: Notebook, PDA, portable electrograph, portable printer.
3.Video devices: GPS, digital camera, camcorder, portable DVD, portable television, MP3, MP4.
4.Portable exchange devices: POS, Handy, Fingerprint machine, portable stock machine.
