CE Certified | High Discharge Lithium Battery Pack | 4S 1P 14.8 V Lipo Battery Pack 5800mAh for Power Tool Batteries | Customizable China Manufacturer
CE Certified | High Discharge Lithium Battery Pack | 4S 1P 14.8 V Lipo Battery Pack 5800mAh for Power Tool Batteries | Customizable China Manufacturer
Lipo Battery Specification:
| Product Name | 2400mAh 14.8V lipo battery Pack | |
| Battery Type | Rechargeable Lithium Ion Polymer Battery | |
| Power Wh: | 35.52 Wh | |
| Assembly Composed Type | 4 single cell(4S1P) | |
| Nominal Capacity | 2400 mAh | @ 0.2C discharge |
| Nominal Voltage | 14.8 V | |
| Charge Voltage | 16.8±0.12 V | |
| Cut-off Voltage | 3.0 V | |
| Standard discharge Current | 480 mA | @ 0.2C charge |
| Max. discharge current | 2400 mA | @ 1 C charge |
| Standard charge Current | 4800 mA | @ 0.2C discharge |
| Max. charge Current | 2400 mA | @ 1C discharge |
| Resistance | ＜120 mΩ | |
| Weight (Approx.) | 175 g | |
| Cycle Life | Over 500 times | |
| Dimensions(T.W.L.) | 28*50*62 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -10 ~ 60℃ | |
| Storage Temperature | -10~45℃ | Less than one month |
| 0~30℃ | More than one month | |

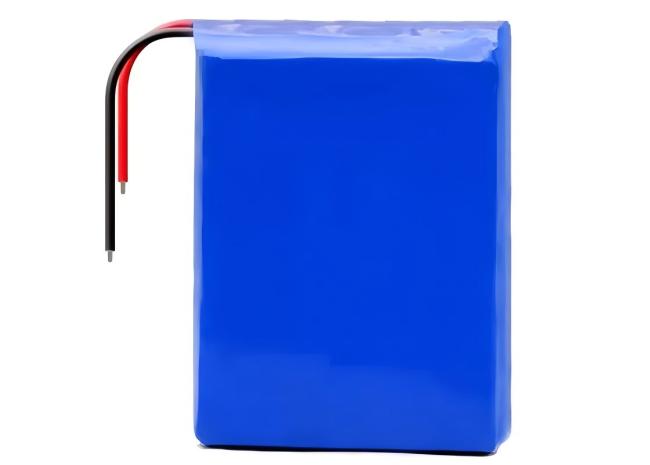

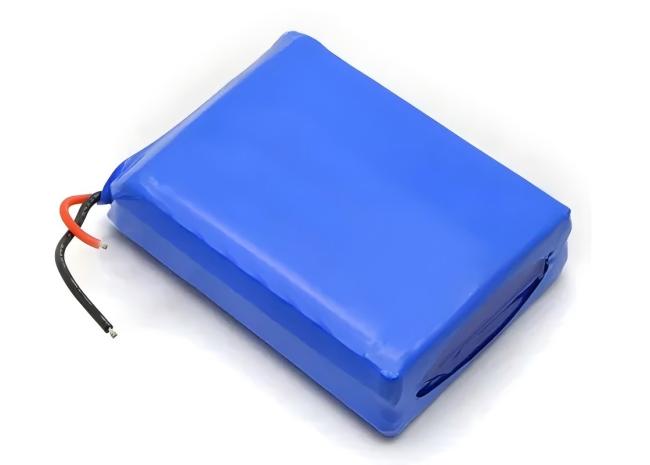

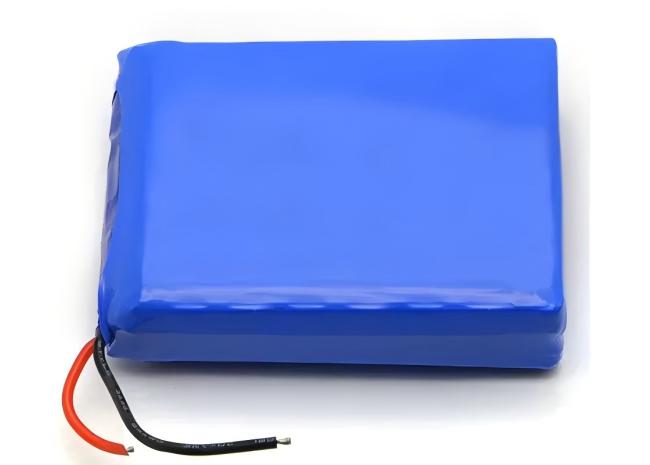

- Appearance & Protection
- The entire pack is enclosed in a blue heat-shrink PVC sleeve, which provides electrical insulation, scratch resistance, moisture protection, and a neat finish.
- Its rectangular shape indicates it is assembled from multiple cells (either cylindrical 18650/21700 or prismatic pouch cells) via series-parallel connection.
- Output Terminals
- Two bare wires are exposed: red for positive (+) and black for negative (-). These open leads allow users to customize the connection by soldering or crimping connectors (e.g., JST, DC, XT60) to match specific device requirements.
- Core Design & Functionality
- This is a fully customizable battery system, where voltage (e.g., 3.7V, 7.4V, 12V, 24V), capacity (from hundreds of mAh to tens of Ah), physical dimensions, and BMS features can all be tailored to the end application.
- Most packs include an integrated Battery Management System (BMS) to provide critical safety protections: overcharge, over-discharge, over-current, short-circuit, and thermal protection, ensuring long-term reliability.
Warranty:
We will be responsible for replacing the cell against defects or poor workmanship for 12 months from the date of shipping. Any other problem caused by malfunction of the equipment or mix-use of the cell is not under this warranty.
Product Advantage
1. High capacity, low inner resistance, long cycle life, low self-discharge .
2. Rapid charge-discharge cycle life up to more than 500 times.
3. Provide both single cells and battery packs.
5. Enough, stable capacity, steady discharge and high temperature discharge.
6. Customized sizes, packs, tags, labels, plugs, connectors, over current protection, temperature control protection is available
Unitech Company
We offer full custom solutions for lithium battery packs, power connectors, wiring harnesses, and more, including custom voltage, capacity, dimensions, connectors, and packaging to perfectly match your project requirements. Our team will reply to your inquiry within 24 hours with professional technical support, quotation, and free sample consultation.If you want to learn more details,please contact us email:Olinda@unitechelectronic.com
Battery Application:
The batteries are applied to GPS,cordless phone, walkmans, solar lighting, electrical drills, shavers, emergency lighting and back-up power, robot etc.
