Anderson & XT60 Adapter Power Cable Harness | Custom Length SG50A 600V Connector Power Plug 10~14WAG XT60-F Wire Harness for Automobile | Made in China
Anderson & XT60 Adapter Power Cable Harness | Custom Length SG50A 600V Connector Power Plug 10~14WAG XT60-F Wire Harness for Automobile | Made in China
Product details

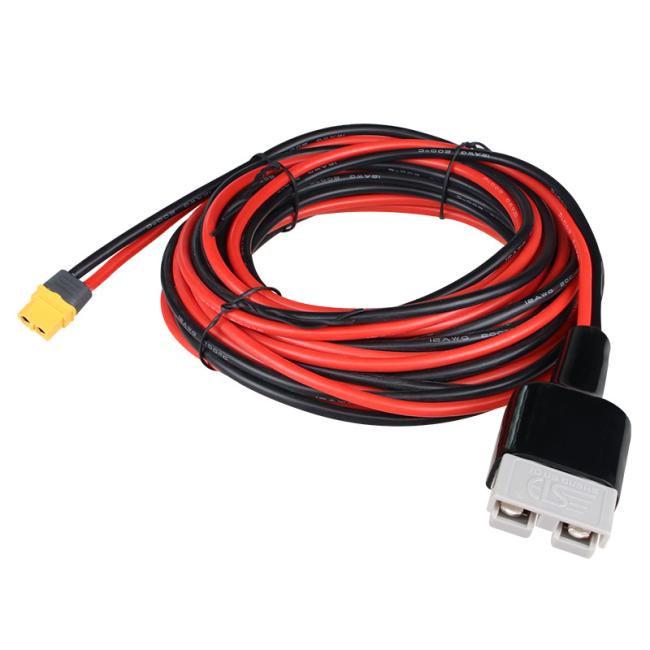

| Product name | Anderson & XT60 Adapter Power Cable Harness |
| Connector Type | XT60-F |
| Conductor Material | Silver-Plated Copper |
| Jacket Material | PVC |
| Size | 10-14 WAG or can be customized |
| Length | 1500mm can be customzied |
| Voltage | 600V DC |
| Current | 50A/120A |
| Application | E-bike, e-scooter, Auto power supply |
| Place of Origin | Guangdong, China |
Product Introduction

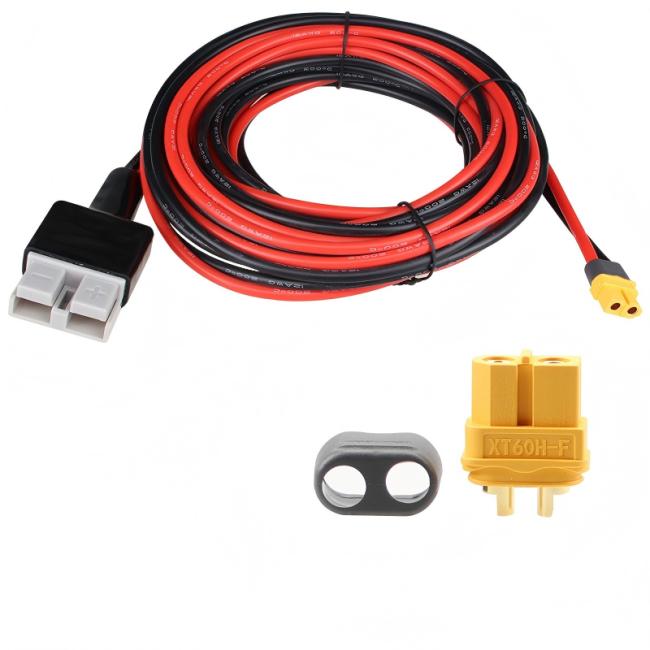

1.Dual Interface Connectors

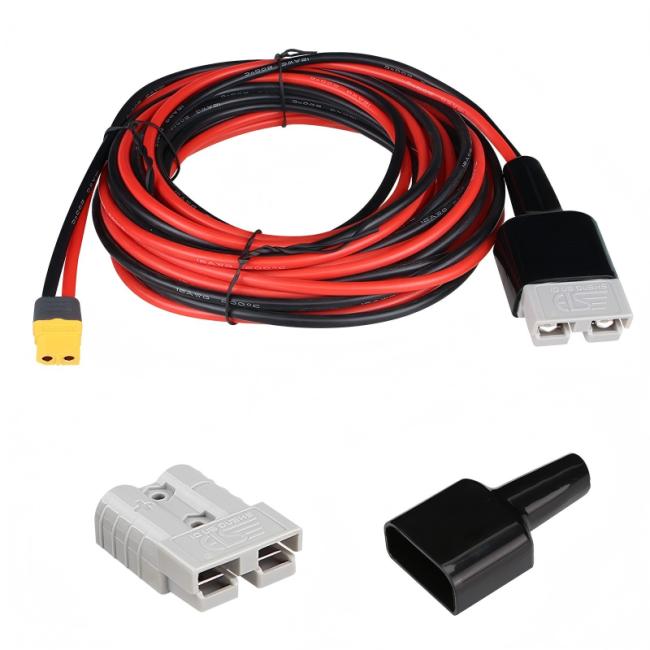

Anderson SB Series Connector (Grey)
This is the industry-standard heavy-duty 50A/120A Anderson-style plug, with a rugged flame-retardant grey housing.
Features the signature hermaphroditic (genderless) design, tool-free self-locking mating, and high-current capacity for 12V/24V DC systems.
The housing includes a dedicated cable strain relief boot (the black rubber component) to prevent wire damage from tugging or vibration.
XT60 Connector (Yellow)
A high-performance gold-plated male XT60 plug, widely used in RC, lithium battery, and portable power applications.
Provides a secure, high-conductivity connection for high-current charging and discharging, perfectly suited for 18650/li-ion battery packs.
2. Heavy-Duty Power Cable
Construction: Red and black parallel high-temperature stranded pure copper wires, with a thick, abrasion-resistant PVC/XLPE jacket. The printed markings on the cable confirm it is rated for high-current operation (common specs: 10AWG ~ 14AWG).
Performance: The extended cable length minimizes voltage drop over distance, making it perfect for setups requiring longer wiring runs (e.g., connecting a battery bank to an inverter, or a solar panel to a charge controller).
Other wire harness
Non-insulated ring terminal wire harness
PVC insulated ring terminal wire harness
Nylon insulated ring terminal wire harness
Ring tongue terminal wire harness
Toothed lock ring tongue terminal wire harness
Spot welding terminal wire harness
Non-insulated spade terminal (fork terminal) wire harness
PVC insulated spade terminal (fork terminal) wire harness
Nylon insulated spade terminal (fork terminal) wire harness
