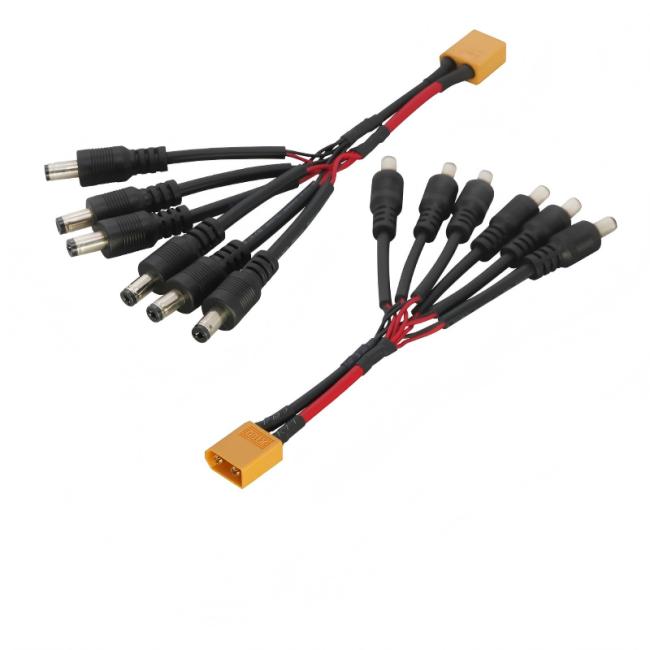

XT60 to DC 5.5x2.1mm 1-to-6 Parallel Charging Cable Assembly for RC Accessories | Custom Wire Harness Manufacturer | ROHS Compliant Made in China
XT60 to DC 5.5x2.1mm 1-to-6 Parallel Charging Cable Assembly for RC Accessories | Custom Wire Harness Manufacturer | ROHS Compliant Made in China
| Name | 1-to-6 XT60 to DC 5.5x2.1mm Splitter Cable Assembly for FPV Drone Power Supply |
| Connector | XT60 Male / Female (Gold-Plated) |
| Conductor Gauge | 30 AWG, or customized |
| Interface Type | AC / DC |
| Cable Length | 25mm / 35mm / 50mm / 60mm (Customizable) |
| Application | FPV Drone, LiPo Battery Charger, Power Supply, RC Accessories, Goggles, VTXCertificationRoHS Compliant |
|
Rated Current
|
DC 30A
|
|
Key Features
|
1-to-6 Parallel Design, Low Resistance, Heat-Resistant Silicone Wire
|
| DC Plug Housing |
PVC
|
| XT60 Contacts | Gold-Plated Brass |
| Wire | High-Temperature Silicone Insulated Wire |
| Engineering service | OEM and ODM service ,2D drawing |
| Quality Control |
1. 100% breakover test 2. 100% crimp inspection 3. 100% size inspection 4. 100% visual inspection |
| Samples |
1.Samples confirmed first before mass production 2.Samples for free |
| MOQ | Small Order Can Be Accepted |
| Package | Inner:plastic bag outer:standard export cartons or custom package |
Wire Harness And Cable Features:

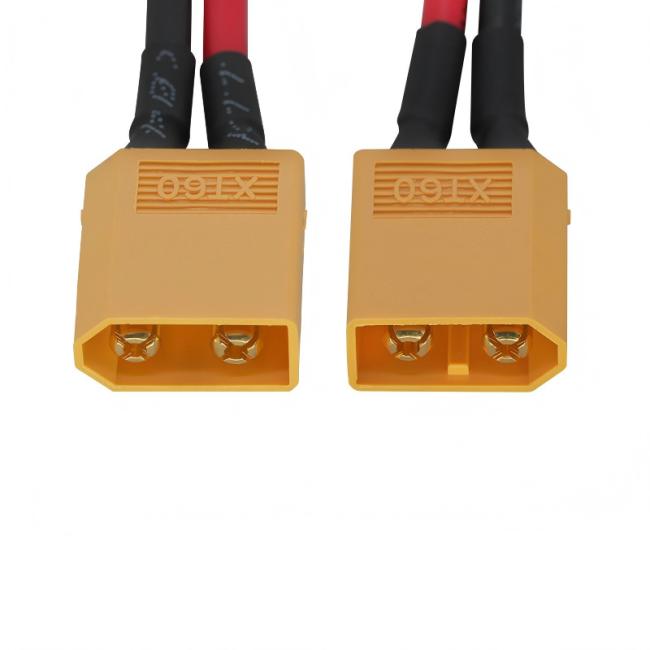

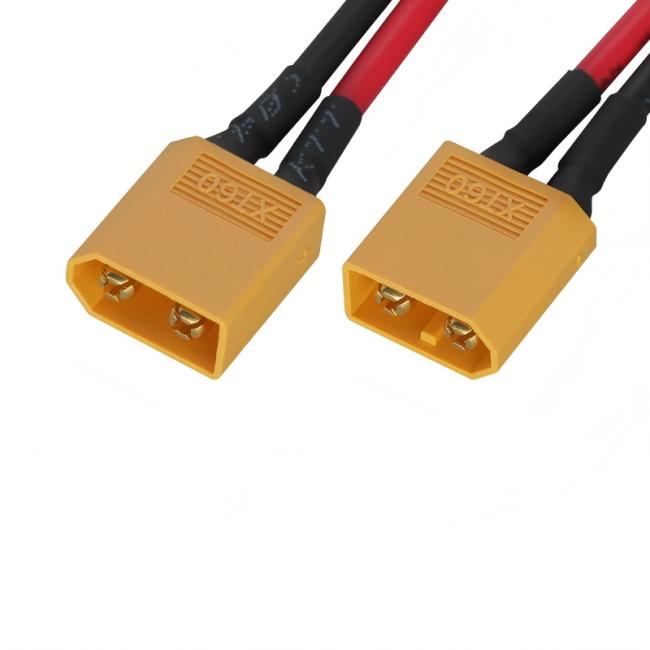

✅ Reliable XT60 Connector: Features gold-plated XT60 contacts for low resistance and stable power transmission. Supports up to 30A continuous current on the main line.
✅ High-Quality Silicone Wire: Made of heat-resistant silicone wire (14/16AWG main, 18/20AWG branch), flexible and durable for long-term use.
✅ FPV Essential Accessory: Ideal for powering FPV goggles, receivers, VTX modules, and other accessories from a single LiPo battery or charger.
✅ Note: Each DC port is rated for up to 3A max. Ensure your devices do not exceed the total current capacity of the cable.
We can produce series of cable wire cable OEM ODM project:
1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness
We are Direct Cable Harness Factory
Electrical Harness Manufacturers For Custom Battery Pack
Electrical Wire & Cable Manufacturers
If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample and drawing to us.We'll get back to you right away. Olinda@unitechelectronic.com
- 1-to-6 parallel design, perfect for multi-device charging and powering.
- Gold-plated XT60 connector ensures low resistance and reliable conductivity.
- Heat-resistant silicone wire offers flexibility and durability, suitable for use in various environments.
- Available in both male and female XT60 versions to match your charger or battery setup.
Important Notes:
1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.
2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.
3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.
4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.
5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
