Electronic Wire Harness Manufacturer | 4Pin XH2.54 to 6.3mm Spade Terminal Wiring Harness for for Fan Motor, Home Appliance | Custom Terminal Cable OEM China
Electronic Wire Harness Manufacturer | 4Pin XH2.54 to 6.3mm Spade Terminal Wiring Harness for for Fan Motor, Home Appliance | Custom Terminal Cable OEM China

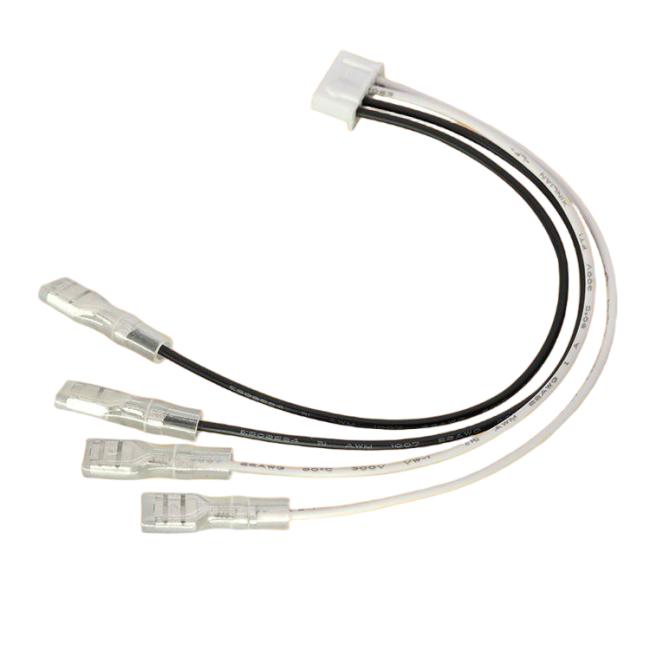

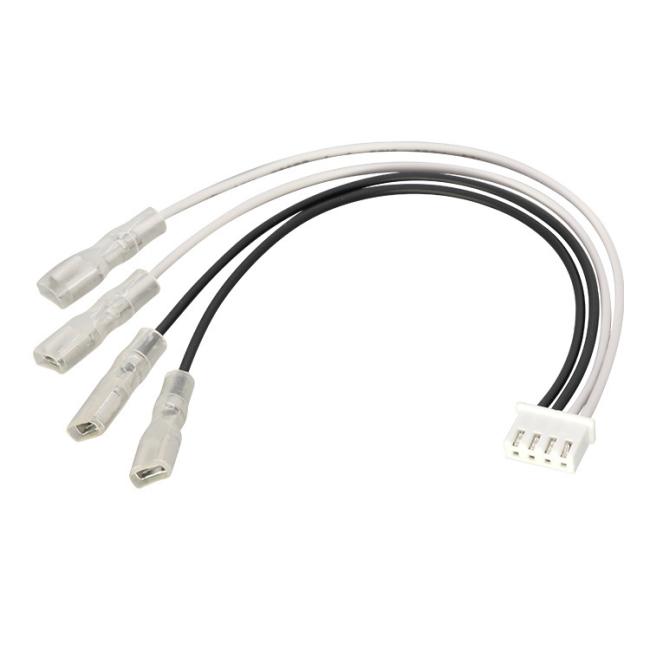

| Name | 4Pin PCB Connector to Spade Terminal Wiring Harness |
| Connector 1 | 4Pin XH/PH Series Connector (Male/Female) |
| Connector 2 | 6.3mm Female Spade Terminal with Insulated Cover |
| Wire Type | Electronic Wire (300V, 80℃ Rated) |
| Application | Fan Motor, Home Appliance Control Board, Lighting Fixture, Small Appliance Wiring |
|
Key Features
|
Quick Connection, Insulated Spade Terminal, Vibration Resistant
|
| Contacts Material | Tin-Plated Brass Contacts, Flame-Retardant Nylon Housing |
| Engineering service | OEM and ODM service ,2D drawing |
| Quality Control |
1. 100% breakover test 2. 100% crimp inspection 3. 100% size inspection 4. 100% visual inspection |
| Samples |
1.Samples confirmed first before mass production 2.Samples for free |
| MOQ | Small Order Can Be Accepted |
| Package | Inner:plastic bag outer:standard export cartons or custom package |
Wire Harness And Cable Features:
✅ Safe & Durable: Flame-retardant wire and insulating sleeves meet safety standards, preventing short circuits and electrical hazards.
✅ High Conductivity: Tin-plated brass terminals offer low contact resistance and long-term anti-oxidation performance.
✅ Versatile Use: Perfect for fan motors, kitchen appliances, and other household electronic equipment requiring quick wiring.
We can produce series of cable wire cable OEM ODM project:
1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness
We are Direct Cable Harness Factory
Electrical Harness Manufacturers For Custom Battery Pack
Electrical Wire & Cable Manufacturers
If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample and drawing to us.We'll get back to you right away. Olinda@unitechelectronic.com
- Connectors (4Pin End): Made of tin-plated brass contacts with flame-retardant PA66/Nylon housing, providing low resistance and reliable power/signal transmission.

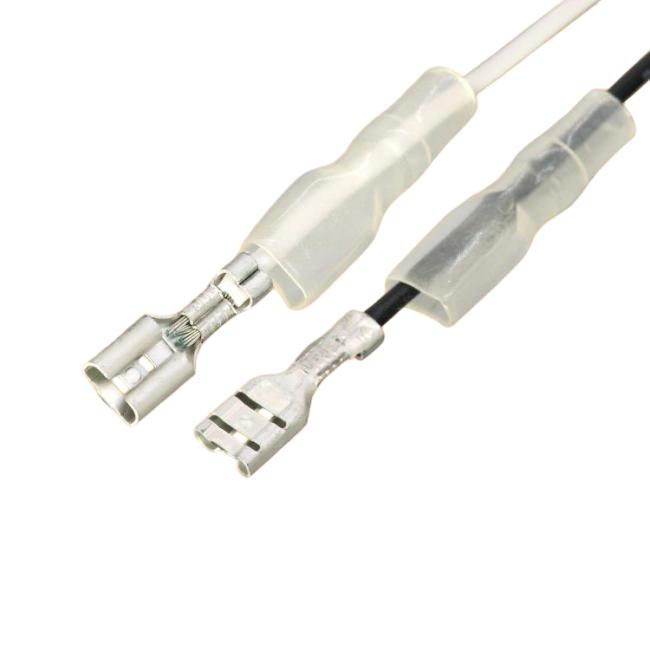

- Spade Terminals: Tin-plated brass construction with transparent PVC insulating sleeves, preventing short circuits and ensuring safe connections.
- Wire: Stranded copper conductor with PVC insulation, rated at 300V / 80°C, flame-retardant, anti-aging, and suitable for internal appliance wiring.
- Application: Ideal for fan motors, small household appliances, lighting fixtures, and electronic control board connections.
Important Notes:
1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.
2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.
3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.
4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.
5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
