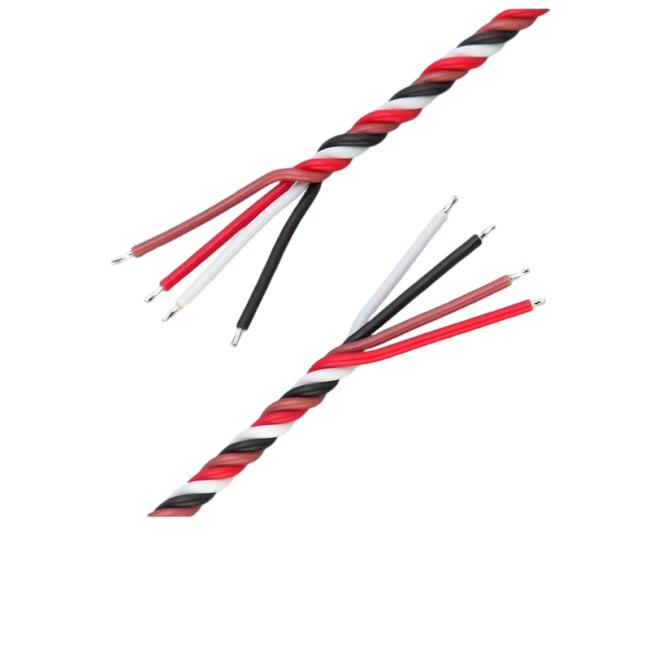

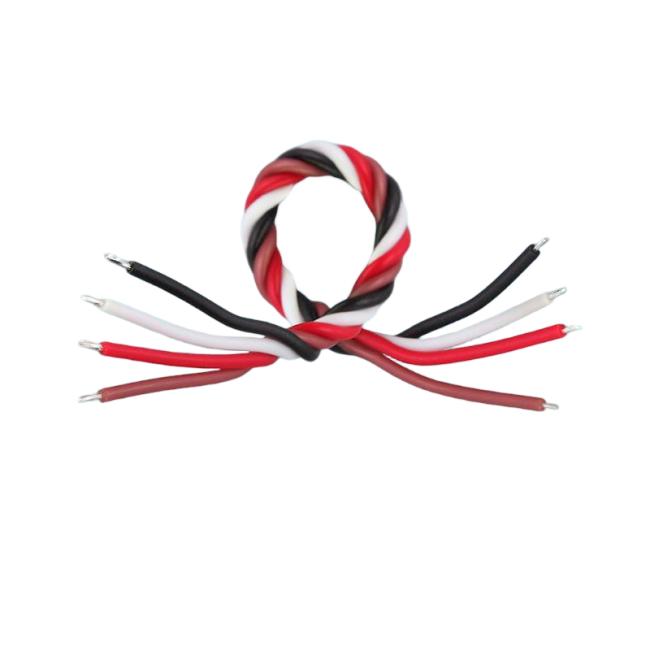

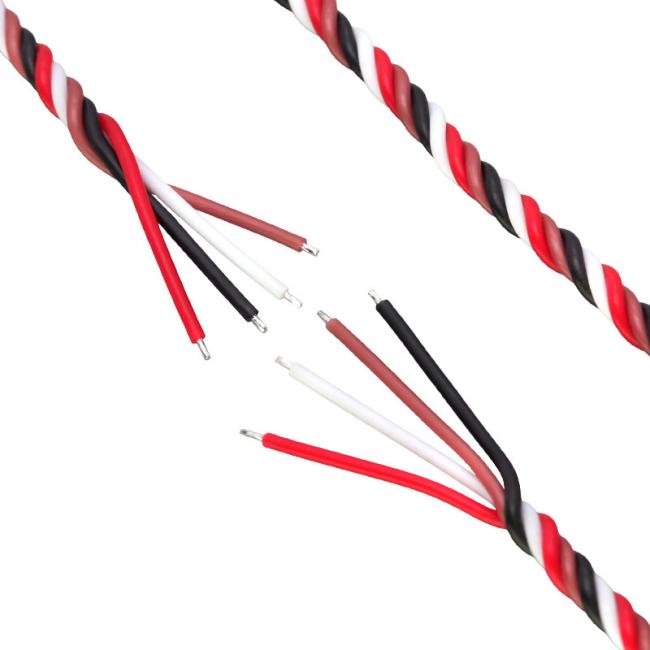

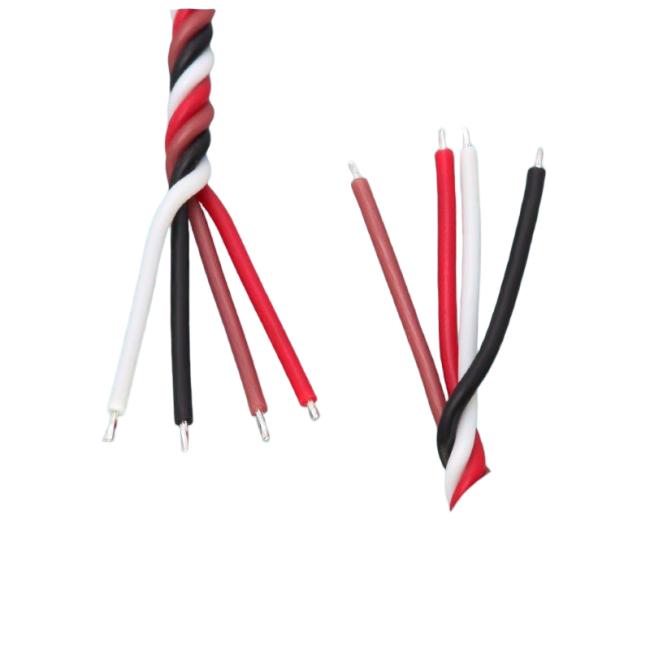

| Name | 4 Conductor Tinned Copper Twisted Wire with Stripped Ends |
| Conductor Gauge | 22AWG / 24AWG / 26AWG (customizable 20AWG / 28AWG) |
| Conductor Material | Tinned Copper |
| Insulation Material | PVC |
| Cable Length | Custom lengths from 100mm to 1000mm |
| Twisting Pitch | 10~20mm (optimized for maximum EMI suppression, customizable) |
| Color Coding | Red / Black / White / Brown (custom color combinations available) |
| Application | FPV Drone, Quadcopter, Flight Controller (FC) to 4-in-1 ESC ConnectionCertificationRoHS Compliant |
|
Rated Rating
|
300V AC/DC |
|
Key Features
|
Precision twisting design effectively eliminates electromagnetic interference
|
| Engineering service | OEM and ODM service ,2D drawing |
| Quality Control |
1. 100% breakover test 2. 100% crimp inspection 3. 100% size inspection 4. 100% visual inspection |
| Samples |
1.Samples confirmed first before mass production 2.Samples for free |
| MOQ | Small Order Can Be Accepted |
| Package | Inner:plastic bag outer:standard export cartons or custom package |
Wire Harness And Cable Features:
The 4 conductors are twisted into two differential pairs (e.g., red-brown / white-black), which cancels out common-mode noise induced by motors, ESCs, and RF modules. This prevents signal corruption, making it ideal for high-speed serial communication (UART, I2C, SBUS) in drones and industrial systems.
2.Tinned OFC Conductors for Reliability
Oxygen-free copper ensures excellent electrical conductivity, while tin plating prevents oxidation and corrosion, extending service life in humid or industrial environments. The stranded construction offers flexibility and resistance to fatigue cracking.
3.Flexible, Durable Insulation
Standard PVC insulation is flexible, durable, and RoHS-compliant, suitable for most applications. High-temperature FEP/PTFE options are available for environments near heat sources (e.g., ESCs, motors).
4.Customizable Bare End Termination
The stripped and tinned ends allow for direct soldering to PCBs or crimping to any connector type (XH2.54, GH1.25, JST, etc.), making this wire highly versatile for custom projects.
5.Standard Color Coding for Easy Wiring
The industry-standard red/black/white/brown color scheme aligns with common power and signal pinouts, reducing wiring errors and simplifying troubleshooting in complex setups.
We can produce series of cable wire cable OEM ODM project:
1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness
We are Direct Cable Harness Factory
Electrical Harness Manufacturers For Custom Battery Pack
Electrical Wire & Cable Manufacturers
If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample and drawing to us.We'll get back to you right away. olinda@unitechelectronic.com
2.Insulation Material: Upgrade to high-temperature FEP/PTFE insulation
3.Color Coding: Custom color combinations to match your specific pinout requirements
4.Connector Termination: Pre-crimped with any connector type (XH2.54, GH1.25, PH2.0, etc.)
5.Shielded Versions: Optional aluminum foil shield + drain wire for environments with extreme EMI interference
6.Packaging: Bulk spools, cut-to-length bundles, or custom retail packaging
Important Notes:
1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.
2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.
3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.
4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.
5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
