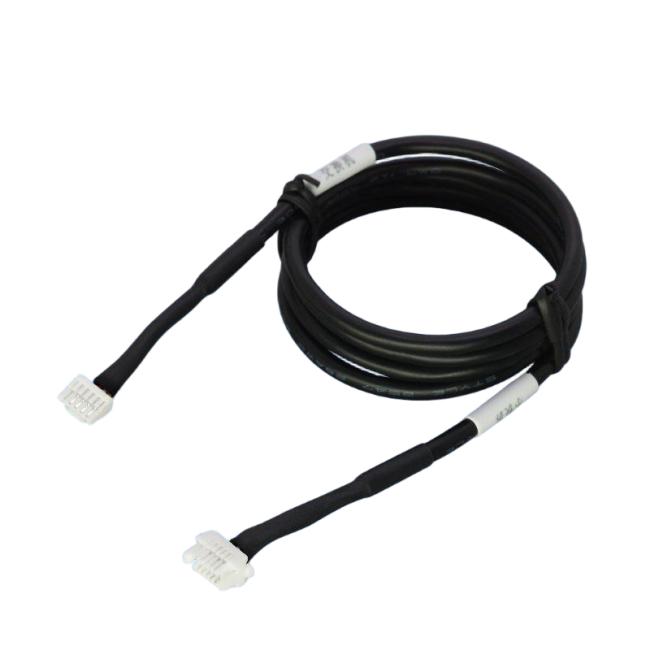

| Name | GH1.25 5P to SHLD 5P Conversion Wiring Harness |
| Conductor Gauge | 28AWG (customizable) |
| Conductor Material | Tinned Copper |
| Insulation Material | PVC |
| Cable Length | 60cm / 70cm / 80cm / 90cm (custom lengths available) |
| Cable Model | UL2547 Multi-core Shielded Cable |
| Application | Drone LED Strips, RC Models, UAV flight control module,Mini cabinet control board |
|
Rated Rating
|
300V |
| Certifications | RoHS , REACH compliant |
| Features | Dual Different Connectors, Perfect Cross Matching,Reliable Wire & Stable Signal Transmission |
| Engineering service | OEM and ODM service ,2D drawing |
| Quality Control |
1. 100% breakover test 2. 100% crimp inspection 3. 100% size inspection 4. 100% visual inspection |
| Samples |
1.Samples confirmed first before mass production 2.Samples for free |
| MOQ | Small Order Can Be Accepted |
| Package | Inner:plastic bag outer:standard export cartons or custom package |
Core Wire Specifications
- Wire Type: UL2547 Shielded Multi-conductor Electronic Wire
- Wire Gauge: 28AWG
- Rated Temperature: 80°C
- Rated Voltage: 300V

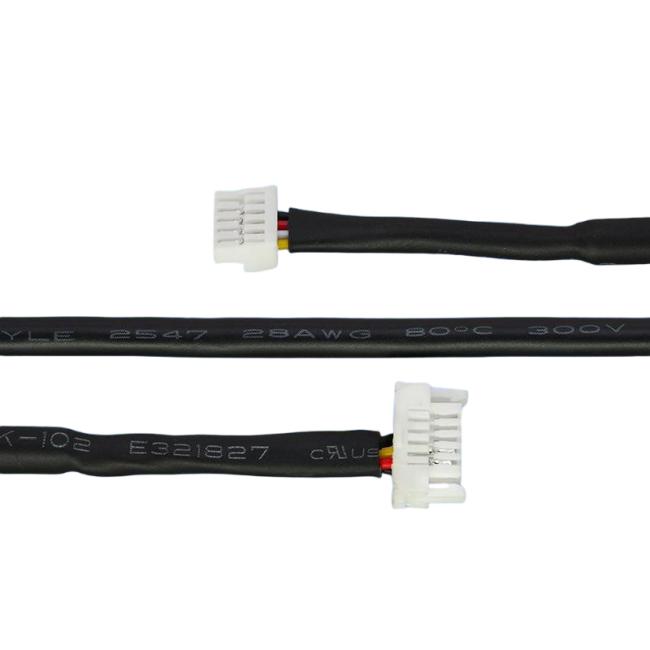

- Wire Certification: UL Certified, Marked with K-102, E321827 printing on outer jacket
- Outer Jacket: Flexible black PVC insulation, wear-resistant, anti-interference, soft for wiring inside narrow equipment cavities
- Internal Core Wires: Color-coded conductors (red, yellow and other custom wire sequences available) to avoid wiring errors during assembly
Connector Details

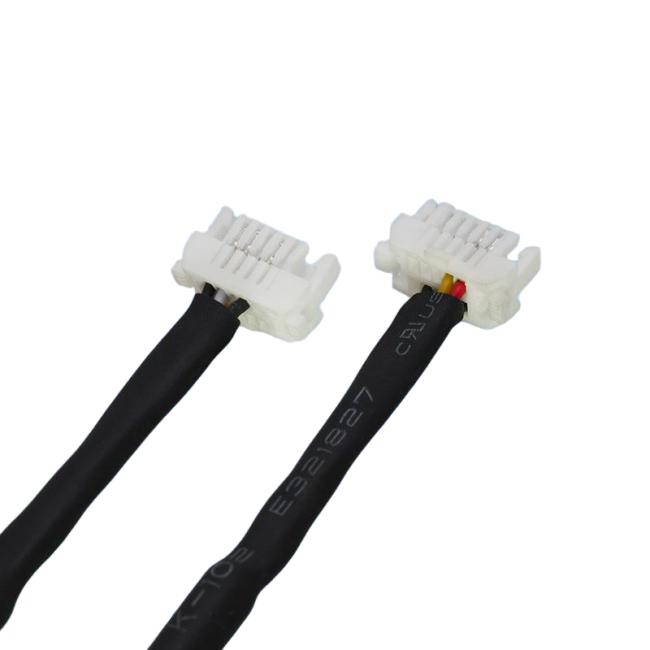

- End A: GH1.25-5P Connector
- Pitch: 1.25mm
- Pin Count: 5P
- Structure: Horizontal wire-to-board plug with locking buckle
- Material: White flame-retardant plastic housing, tin-plated brass terminals for stable conductivity, anti-drop locking design to prevent loose contact during vibration
- End B: SHLD-5P Mini Socket
- Compact miniature terminal socket with tiny footprint, suitable for small circuit boards and compact module boards
- Matching pin terminals with good oxidation resistance, stable signal transmission for low-current weak signal circuits
Wire Harness And Cable Features:
- Customizable Solution
Support customized cable length, wire sequence, label printing, connector pin count and wire gauge according to customer equipment drawings; private labeling and OEM service available.
- Reliable Signal Performance
UL2547 shielded wire effectively blocks electromagnetic interference, guarantees stable transmission of weak control signals for sensors and main control panels.
- Durable Construction
Tin-plated terminals provide long-term oxidation resistance; flexible PVC jacket withstands repeated bending without cracking, ideal for internal wiring of frequently assembled/disassembled devices.
- Factory Direct Supply Benefits
Zero-cost sample service for quality verification; fast lead time within 3 working days after sample confirmation; bulk order discounts for large-volume purchases.
- Wide Compatibility
Widely compatible with small cabinet control boards, smart device mainboards, industrial micro-sensors, medical mini testing equipment, household small appliance control modules and drone auxiliary signal circuits.
