| Name | Custom SH1.0 10P 26AWG Lock Buckle Connector Wire Harness |
| Pin Count Options | Standard 10P, customizable 2P/4P/6P/8P/10P/12P |
| Connector Pitch | SH1.0 |
| Conductor Gauge | 26AWG |

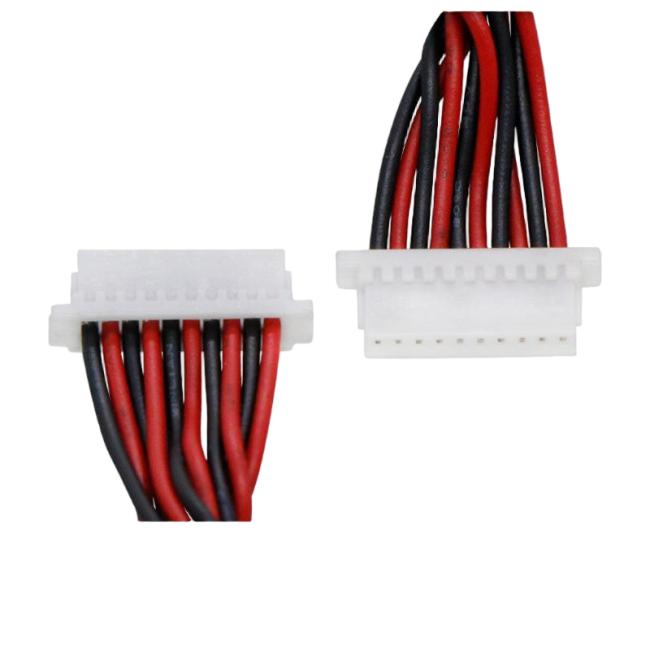

| Housing Material | White flame retardant PA plastic with locking latch |
| Terminal Material | Tin-plated brass, anti-oxidation, stable conductivity |
| Wire Insulation | Soft PVC, red & black color coded for positive/negative polarity |
| Inner Conductor | Multi-strand ultra-fine tinned copper, high flexibility |
| Rated Voltage | 30V |
| Rated Current | 1–3A per single wire core |
| Cable Length | Custom length supported |
| Application | FPV drone , flight controllers , model aircraft , internal wiring of drone gimbal |
| Certifications | RoHS , REACH compliant |
| Engineering service | OEM and ODM service ,2D drawing |
| Quality Control |
1. 100% breakover test 2. 100% crimp inspection 3. 100% size inspection 4. 100% visual inspection |
| Samples |
1.Samples confirmed first before mass production 2.Samples for free |
| MOQ | Small Order Can Be Accepted |
| Package | Inner:plastic bag outer:standard export cartons or custom package |
Key Features:
- Mini SH1.0mm pitch compact connector, specially customized for FPV drone flight controller & ESC connection

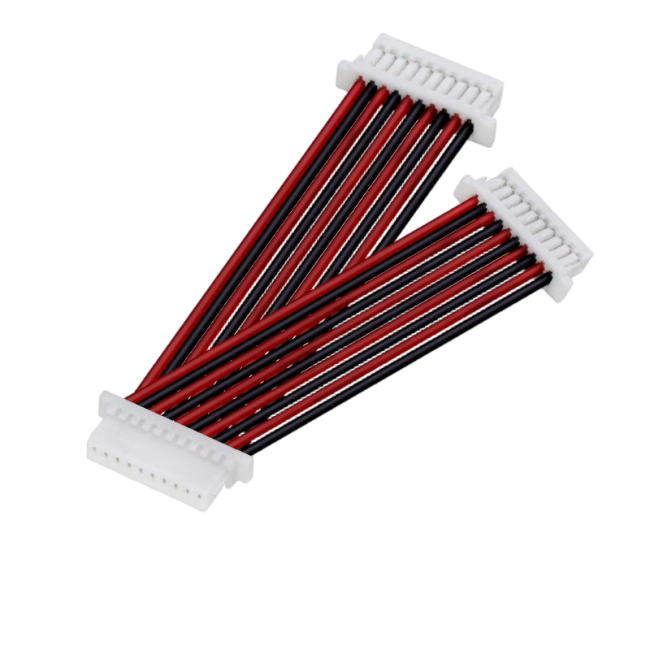

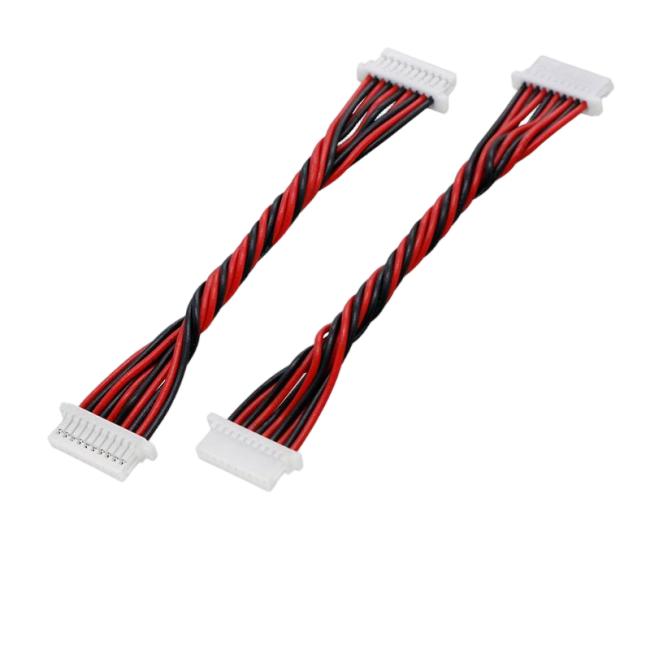

- Two wire styles available: straight parallel wire & twisted differential wire for different anti-interference demands
- 26AWG multi-strand tinned copper flexible wire, lightweight, resistant to repeated bending
- Red & black color coded wires, easy to distinguish power positive and negative, convenient wiring assembly
- Lock buckle white plastic housing, anti-loose under high-frequency motor vibration during flight
- Twisted version provides natural differential EMI suppression, effectively reduce signal noise from ESC & brushless motors
- Fully automatic production line with MES digital management, stable delivery for mass bulk orders
- RoHS compliant, thin and slim structure, save limited space of tiny racing drone frame
We can produce series of cable wire cable OEM ODM project:
1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness
We are Direct Cable Harness Factory
Electrical Harness Manufacturers For Custom Battery Pack
Electrical Wire & Cable Manufacturers
If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample and drawing to us.We'll get back to you right away. olinda@unitechelectronic.com
Important Notes:
1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.
2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.
3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.
4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.
5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
