Windproof 0.8mm 2.0m/Sec High Speed Spiral Door
Aluminum Alloy Material High Speed Security Door Spiral Rolling Shutter Fast Door
The door panel adopts the new anti-pinch broken bridge foaming technology, which makes the door body light and easy to install. It has improved in heat preservation and operation.
The running track can be single spiral, double spiral, elliptical, smooth, straight, and special-shaped series. The track can be designed according to the size of your door opening space. The motor can be built-in coaxial and side-mounted.
The new anti-pinch broken bridge foam door panel technology is an upgrade of the hard fast door plate. The traditional door panel encounters debris or hail will be caught in the link gap, resulting in door panel damage, deformation, abnormal sound and so on.
In the environment of high cold or large indoor and outdoor temperature difference, the traditional door panel is caused by the cold bridge leading to ice or frost. The new anti-pinch broken bridge foam door is the best solution, which greatly improves overall life of the door.
The opening mode is divided into Bluetooth, geomagnetic, swipe, radar, fingerprint password, manual button and so on. At the same time, it is equipped with anti-blocking light, infrared photoelectric, airbag, window and other security systems.
The width of the door panel is divided into 200 type and 220 type. The standard thickness is 43mm. It can be made into thickness of 50mm/75mm/100mm according to customer's requirements. The maximum opening width of the door is 12 meters, the maximum opening height is 8 meters, and the maximum opening frequency is 3000 times per day.

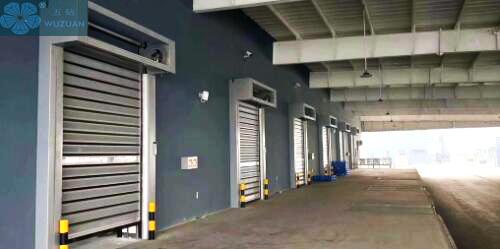

Widely used in industrial plants, cold chain, logistics, cold storage, fast track, automotive assembly, food processing, precision machinery, automotive 4s shop, underground parking lot, etc.
Feature:
High speed spiral rolling shutter door can be equipped with servo motor and three-phase asynchronous motor, and canprovide domestic or imported motor according to customer requirements.
The advantage of servo motors
1.Accuracy: realizes closed-loop control of position, speed and torque; overcomes the problem of stepping motor out of step
2.The speed: high-speed performance is good, the general rated speed can reach 2000 ~ 3000 rpm
3. Adaptability: It has strong anti-overload capability and can withstand three times the rated torque. It is especially suitable for occasions with transient load fluctuations and quick start.
4. Stable: It runs smoothly at low speed, and does not produce stepping operation similar to stepper motor when running at low speed. Suitable for occasions with high speed response requirement.
5. Timeliness: The dynamics of motor acceleration and deceleration are short, generally within tens of milliseconds.
6.Comfort: heat and noise are significantly reduced.
Technical overview:
| External door/Internal door | |
| Size range | |
| Max. width | 10000mm |
| Max. height | 7500mm |
| Speed | |
| Max. opening speed | 2.0m/sec |
| Max. closing speed | 0.5m/sec |
| Emergency opening and emergency closing | |
| Hand chain with spring compensation support | |
| Door leaf | |
| Material | 0.8mm aluminum alloy with PU-foamed |
| galvanized steel frame | |
| Depth | 40mm |
| Section height | 220mm |
| Resistance to wind load | Class4~130km/h |
| Acoustic insulation | R=22 dB |
| Thermal insulation | UD=1.95W/(M²K) FOR 25M² door size |
Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.
Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
1,Are you trading company or manufacturer ?
