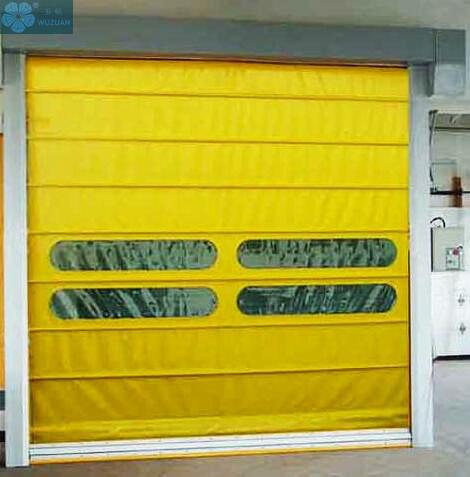

0.8m/S Electric Roller Shutter Doors
Automatic High Speed PVC Stacking Doors/Folding Type Pvc Fabric Fast Rolling Rapid Roller Shutter Door
Uses the Taiwan or China electrical machinery, power source 220V, power 0.75kw, the load bearing shoulders S4 greatly.
2) The electrically controlled system
Uses the high performance promotion control box, in sets at the vector control pattern, the control precision is high; The high torque frequency changer (150%1HZ), PLC combines, has the high performance, the redundant reliability, the high stability, high characteristics ,high accurately localization. Simultaneously utilizes the frequency conversion control technology, has the soft start, slow stop function, guarantee door body revolution steady increase service life.
3) Operation speed
0.4-0.8m/s opening speed (adjustable). High frequency opening(1000-1500/day)
4) Safety device
Lower part the doorframe installs infrared photoelectricity protection switch one pair, under the gate body pauses when the human and the object block the photoelectricity, gate body not whereabouts.
5) The wind resistant effect
Curtain cloth engagement spot is loaded with the wind steel tube, the increase wind resistant effect.
| Using location | External&Internal door |
| Door curtain material | 1.2 mm thick PVC with transparent PVC stripe |
| Door frame | Standard galvanized steel(option: 304 stainless steel) |
| Door control system | Servo system |
| English Man-Machine Interface, | |
| Self Trouble-Shooting Recognizing system | |
| Door designing | Unique for the larger size |
| Motor location | both sides are ok |
| Safety system | standard built-in photo cell |
| Safe Equipment | Beep, Anti-wind Bar, Traffic Light, Emergency Handle, Shoulder Protection |
| Door max size | 10m(W)x10m(H) |
| Wind load max | 28m/s |
| Opening speed | 0.6-1.2m/s |
| Closing speed | 0.6m/s |
| Color | Yellow/blue/white |
| Option | induction loop, radar, pull-cord, push button, remote control |
