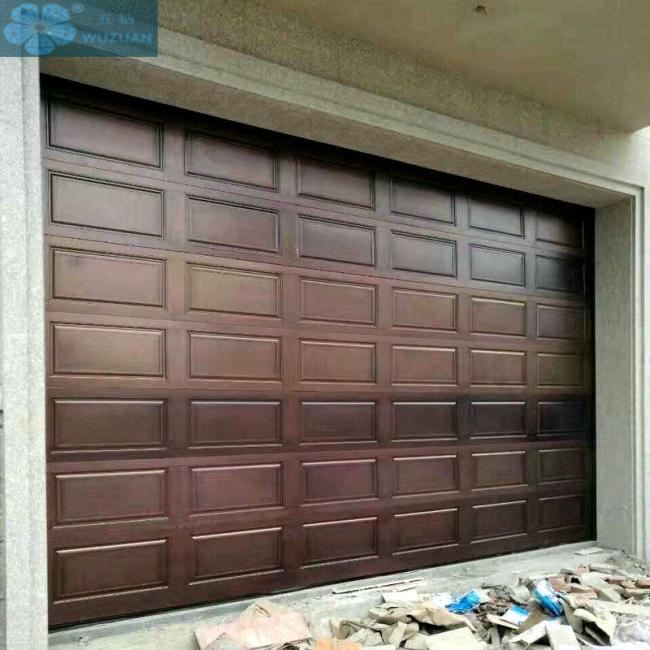

Polyurethane Foam IP55 Sectional Overhead Door Automatic
Steel PU Foam Insulated Automatic Sectional Overhead Sliding Garage Door with Pedestrian/Small Door
The polyurethane foam builds a barrier against extreme temperatures and preserves the thermal energy.
There are internal steel reinforce steel plate (1.0mm thick, and 16mm width) pre-laid along the panel at the joints, so the hinges could be fasten strongly on the panel to ensure the longtime service life. And also because of that the panel could be cut at any size to assembly doors with different sizes.
one rubber seal at panel joints which will stop the heat transferring to avoid the “cold bridge” and keep the energy be inside the garage.
Features:
1. Material: Adopt high quality galvanized steel, Polyester treated appearance has strong anti-erode capacity, High density polyurethane foam increases the panel intensity and flat degree.(density≥43kg/m3)
2. Thickness of door panel:40/50 optional
3. Max width: 6000mm
4. Max height: 550mm
5. galvanized steel of door sheet: 0.326mm/0.35mm
6. Size: according to customers'demands
7. Irregular leather grainy delight for feeling
8. Inosculating panel tightly make panel be looked beautiful and have totally anti-nipping function.
9. Remote control, automatic and manual switch
10. Colour: The normal colour is white and can be painted any colours as customer's requests.
11. Lock: Special security lock.
12. Opening way: It slide on the ceiling, Overhead sliding sectional door.
13. Accessories: bracket, hinges, locks, handles, roller, spring, rubber seal, door opener.
14. Speed of opening: 0.1-0.2m/s
15. the wind power to resist:10 degree.
16. The working life:20,000 times.
17. The working temperature:-30 - 50.
18. Suitable for residential houses, garages, workshops, warehouse, and commercial shops.
Product Details:
| dimension | as customers request |
| the width of a piece of panel | we can design 42cm-55cm |
| material | steel |
| thickness of galvanized steel | 0.326mm/0.35mm/0.4mm |
| colour | the normal colour is white,any colours can be customized |
| pattern | ellipse,grid and horizontally stripe |
| grain | wood grain,leather grain and smooth panel are optional |
| panel design | finger protection design |
| panel thickness | 40/50mm are optional |
| high density of polyurethane | >43kg/cubic meter |
| puller and emergent lock | it is a necessary when no electricity |
| special function | security,thermal-keeping,insulated and keep fingers safety |
| garage door window | use ABS material with irregualr wood grain,match organic glass inside |
| hardwares | finger protection design,galvanized and be sprayed white powder coating are optional |
| openers | use aluminium alloy guide track,it will be durable and lower noise when it is working |
