Anti Corrosion Bare ACSR Aluminum Conductor Cable High Conductivity UV Resistant For Transmission Lines

Anti-Corrosion Bare ACSR Aluminum Conductor Cable High Conductivity UV Resistant For Transmission Lines


The ACSR/AS conductor is used as bare overhead transmission and as primary and secondary distribution cable.
ACSR/AS offers strength characteristics similar to ACSR, along with slightly greater capacity and resistance to corrosion due to aluminum-clad-ding of the steel core wires.

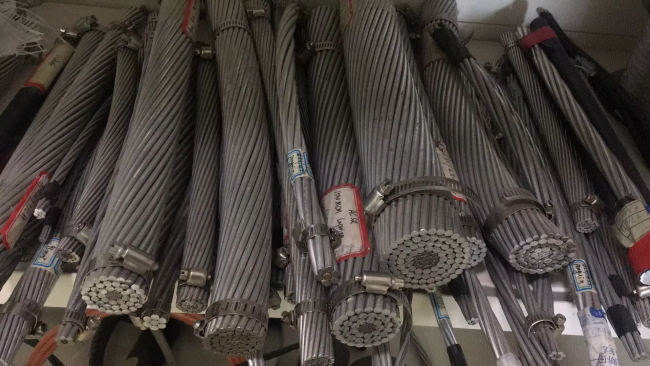

The ACSR/AS conductor is formed by several wires of Aluminium and Aluminum-clad steel, stranded in concentric layers.

Conductor: Concentric stranded hard drawn aluminum wire
Steel Core: Galvanized steel (Zinc coated) wire, solid or concentric stranded

Specafication:

Standard:

ASTM B232 ,IEC61089, BS215 part2, DIN48204, BS EN50182, GB/T 1179-2008

Features:

1. Anti-Corrosion Protection

• The steel core is coated with anti-corrosion materials (e.g., zinc or aluminum) to resist rust and degradation, ensuring long-term durability in harsh environments.

2. High Tensile Strength

• The steel core provides exceptional mechanical strength, making the cable suitable for long spans and high-tension applications.

3. Lightweight Aluminum Outer Layer

• The aluminum strands offer excellent conductivity while keeping the cable lightweight, reducing the load on supporting structures.

4. Weather Resistance

• Designed to withstand extreme weather conditions, including rain, snow, UV exposure, and temperature fluctuations.

Applications:
Used as bare overhead transmission and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing capacity.
Used as bare overhead transmission and as primary and secondary distribution cable. ACSR/AS offers optimal strength for line design. Along with slightly greater ampacity and resistance to corrosion due to the aluminum cladding of the steel core wires.

Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Our Workshop:

Customers Visit:

All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.

Why Choose Us:

• Anti-corrosion coated cables
• High-strength ACSR conductors
• Custom power line solutions
• Fast-delivery cable supplier
• ISO-certified electrical cables
• Low-maintenance overhead lines
• Renewable energy cable experts


FAQ:
Q: Are you trading company or manufacturer ?
A: We have our own factory and trading company, our factory have more than 10 years production experience.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.L/C is also available.
Q:Have you ever supplied cables to our country ?
A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
