1400rpm High Speed Multi Needle Lock Stitch Quilting Machine 112 Inch For Home Textile
High Quality 1400rpm Lock Stitch Multi Needle Quilt Machine Sewing 112 Inch Width
Multi needle quilt machine 112 inch feature:
1. Work width: 3m, max.sewing thickness: 5cm.
2. Speed: max. 1400rpm, yield: maximum 280m/hour
3. Newly upgrade computer program, program language: Chinese, English, Portuguese, Russian, Turkish, etc.
4. Auto stop when thread broken
5. Auto lubrication system.
6. Compatible to embroidery designs, pattern editing function.
7. Auto lift needle when machine stop.
8. Infrared system.
9. Pattern compensation function.
Application: high quality garments, quilts,blanket, quilt covers, pajamas, handbags, pillow case, car seat cover, etc.
Parameter
| Model | YXS-112-3ds |
| Dimension(L×W×H) | 534*175*170 CM |
| Quantity of needle row | 3 |
| Work width maximum | 280 |
| Space between needle rows | 152.4(3'+3') |
| Space between needles | 25.4 |
| X-axis stroke | 304 |
| Thickness of quilting | ≤50 |
| Stitch length | 2mm~8mm |
| Speed of operation(m/H) | 10~280 |
| Model of needle | #14, 16#,19# |
| Speed of main shaft(RPM) | 500~1400 |
| Total power required | 8.5 KW |
| Voltage |
380V/50HZ; 220V/60HZ |
| Gross weight | 7000kg |

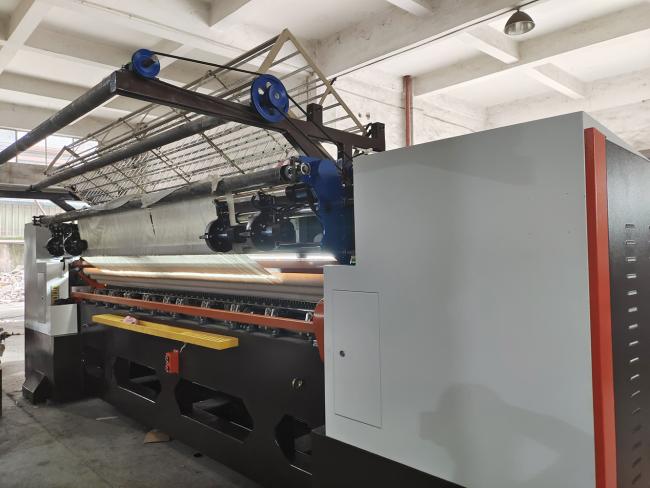

Lock stitch multi needle quilting machine with edge cutting device on machine
Support and service
1. Support to test client's material with machine, and check the work effect.
2. Inspection and loading supervision support before delivery.
3. offer the good after sale service with fastest reaction.
4. Video call and online support to help solve client's machine problems.
5. Help to draw new patterns for clients. The service is free.
Pattern
