Slip Fitter 150W LED shoebox light 5000K 200-480Vac coffee color
Slip Fitter 150W LED shoebox light 5000K 200-480Vac coffee color

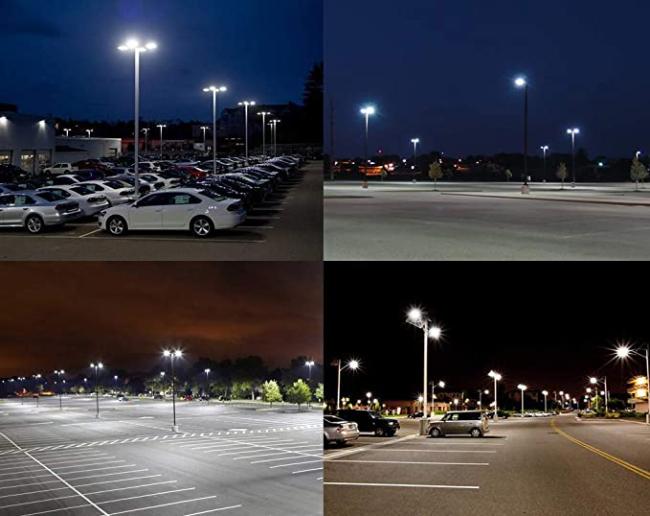

Applications:
1. Parking Lot Lighting, Square Lighting
2. Street Lighting, Highway Lighting
3. Outdoor Area Lighting, High Mast Lighting
4. Roadway Lighting, Path Lighting
5. Street park lighting.
Slip Fitter 150W LED shoebox light 5000K 200-480Vac coffee color
Main Features:
- UL DLC approved.
- Mean Well IP65 driver, input voltage 200-480VAC.
- Seoul Chip, high CRI.
- Output constant current lever can be adjusted through output cable with 1-10V.
- No UV or IR in the beam.
- Energy saving, long lifespan.
- Easy to install and operate.
- Light is soft and uniform, safe to eyes.
- Green and eco-friendly without mercury.
- Instant start, NO flickering, NO humming.
Specifications:
| Model No. | LS-ESBV7150WCT3H1-ABCDEF |
| Input Power | 150W |
| Lumen |
18800-21000lm |
| Lumen Efficacy | 125-140lm/W |
| Color Temperature | 4000K, 5000K, 5700K |
| CRI | >70 |
| Viewing Angele | 150*80Degree (Type Ⅲ) |
| Input Voltage | 200-480V ac 50/60Hz |
| PF | ≥0.9 |
| THD | ≤20% |
| Driver Brand | Meanwell |
| Driver Model |
HVG-150-48AB |
| Optional Accessory | Photocell / Surge Protector |
| LED Brand | Seoul |
| LED Type | SMD3030 |
| Housing | Aluminum Alloy |
| Housing Color | Coffee color / Black / Customized |
| Waterproof rating | IP65 |
| Opertating Temperature | -40℃ TO 45℃ |
| Operating Humidity | 20%-90% RH |
| Storage Temperature | -40℃ TO 80℃ |
| Certificate | UL, DLC |
| Warranty | 5 years |

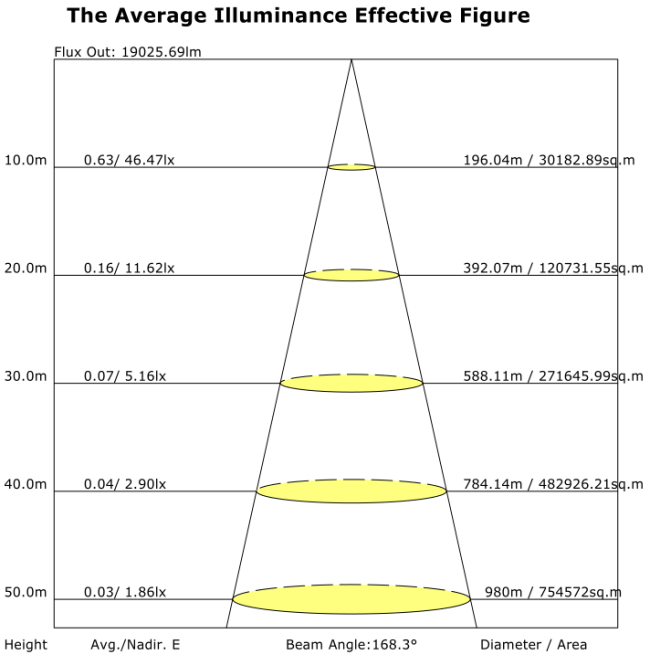

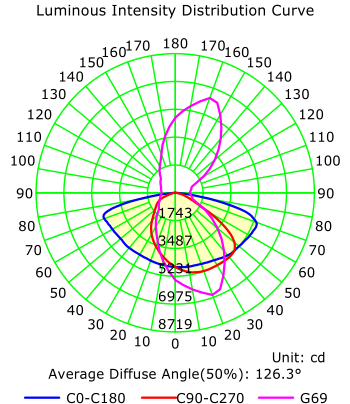

Photometrics:

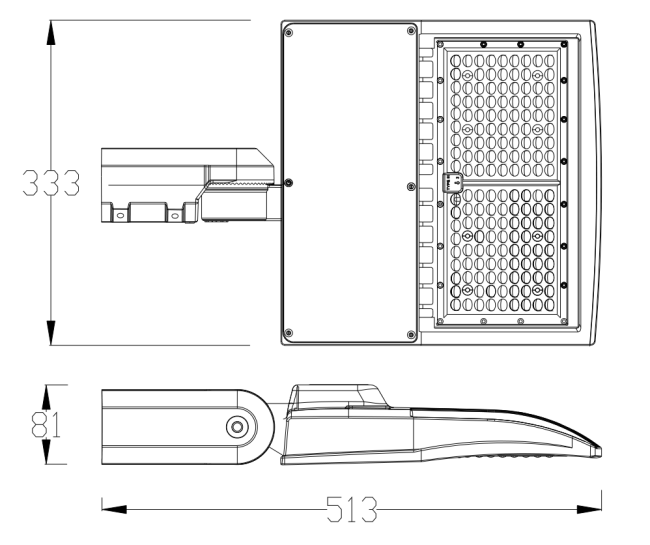

Product Dimension (mm):
Packing:
| Stent Type | Lamp Net Weight | Size | Qty / Carton | Gross Weight / Carton |
| AM | 5.4KG | 585*385*160 MM | 1 PC | 6.3KG |
| DM | 5.9KG | 585*385*160 MM | 1 PC | 6.8 KG |
| YM | 5.1 KG | 585*385*160 MM | 1 PC | 6KG |
| A&D | 6.3KG | 585*385*160 MM | 1 PC | 7.2 KG |
