Belt Conveyor Feeding Type HZS90 RMC Batching Plant
HZS90 Ready Mixed Concrete Batching Plant With Concrete Mixer And Batching Machine
HZS90 Ready Mixed Concrete Batching Plant With Concrete Mixer And Batching Machineis is an ideal equipment to produce the commercial concrete which is used to produce plastic concrete, dry concrete and so on. Adopt twin horizontal shaft forced type concrete mixer or planetary mixer, it adopts two heavy-duty gearbox, electrical lubrication system, hydraulic system, durable mixing device, etc. Equipped with accurate weighing system (aggregate, cement, water, additive), PC+PLC control, vividly display the production process on the screen, so that the operator can monitor in real-time; save the data of production perimeters in the computer, print daily, monthly or yearly statistic reports of production. Because of its high efficiency, it is being widely used in big and medium scale construction projects, roads and bridges, and the factories to produce the pre-fabricated concrete component.
TSKY advantages
- High mixing intensity and even mixing
- Using precision metering control system
- Measurement is more accurate
- Used coarse and fine measuring sensor.
- Electrical components using France Schneider brand and China's first brand; the quality is more stable.
- Pneumatic components use the Taiwan brand.

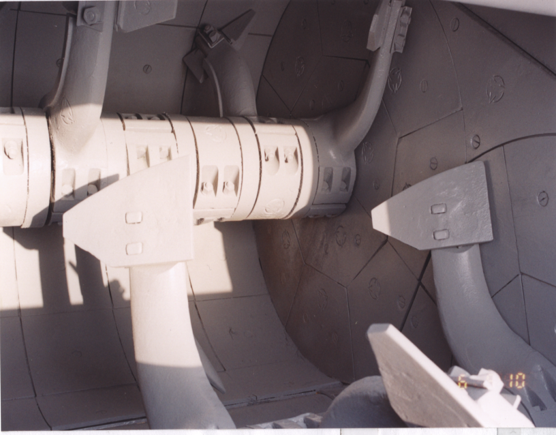

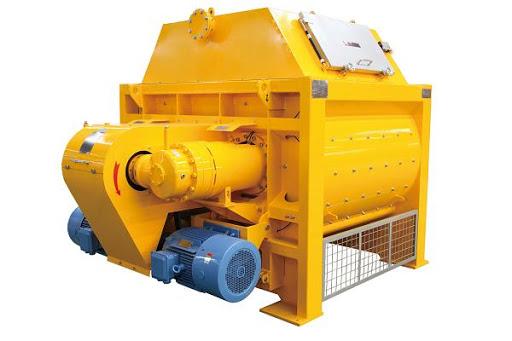

1. Mixing system
Equipped with MS1500 twin-horizontal shaft concrete mixer; Discharging height is 4.0m. Pneumatic/Hydraulic control, easy replacing of wearing parts, such as liner plates.

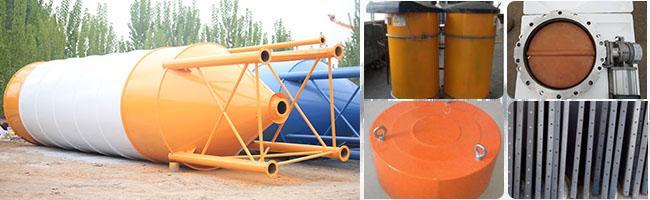

2. Cement silo
The capacity of 50t, 100t, 150t, 200t, etc is optional, and we can customize your requirements. Bolted type, modular making with dust collector, broken arch, pressure relief valve, level gauge. Butterfly valve.
3. Weighing system
The weighing system includes aggregate weighing, water weighing, cement weighing and additive weighing(optional). It is controlled by microcomputer, the weighing is highly accurate and fully automatic.
Using a sensor with good quality, the tolerance of the weighing accuracy low to ± 1%. Or lower as customer's requirements.

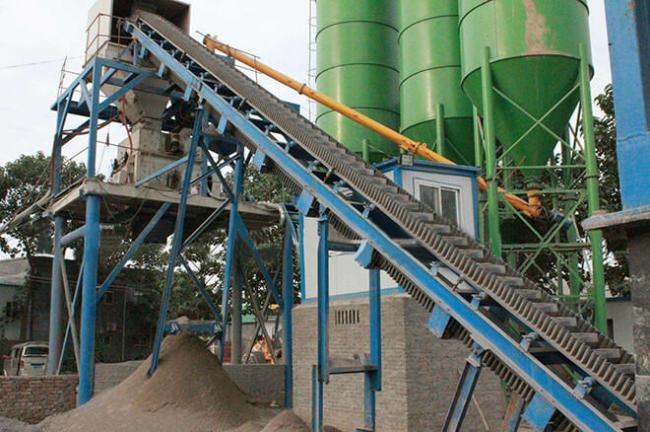

4. Aggregate Belt Conveyor Feeder
Using super quality belt conveyor to feed aggregates to MS1500 concrete mixer, which will make sure high stability and cost-effective.

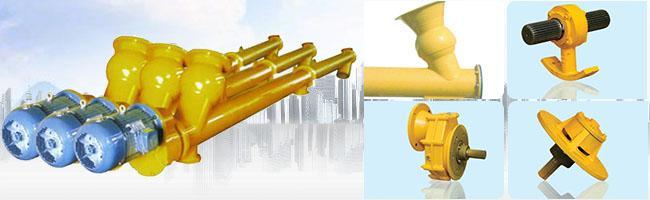

5.Screw conveyor to feed powders

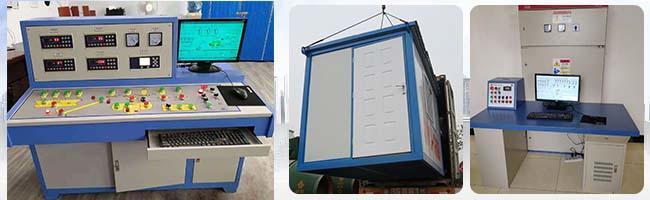

6. Full-automatic control system
Full-automatic PLC/Centralized control with the emergency stop button and safety control key. TV monitoring systems for batching machine, concrete mixer, and discharging mouth are optional for clients.

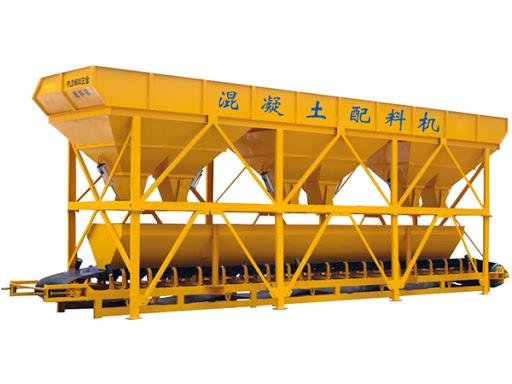

7. Aggregate batching machine
Customization 3/4 hoppers with belt conveyor, pneumatic discharging mode with independent/cumulative weighting.
Main Parameter information
| Model | HZS90 |
| Productivity | 90m³/h |
| Type of Mixer | MS1500 |
| Mixing Volume(L) | 1500 |
| Feeding Way | Belt conveyor |
| (Bucket Type) | |
| Discharge Height(m) | 4.0 |
| Aggregate Bins | 4 |
| Aggregate Weighing Range(kg) | 1000-2000 |
| Cement Weighing Range(kg) | 800 |
| Max. Aggregate Size(mm) | 80/60 |
| Total Power(kw) | 85 |
| Total Weight(T) | 45 |
