ISO Waterproof Dustproof Conveyor Idler Roller
Price:
Negotiable
MOQ:
5 sets
Delivery Time:
5-8 working days
Brand:
TSKY
Product Description
Conveyor Idler Roller
IDLER/ROLLER FEATURE
Supply the various sizes of steel rollers to meet customers' require.
Automatic simultaneous welding, CNC milling of bearing housings.
Use cold drawn round steel with high surface accuracy as the shaft material.
Adopt precision deep-groove ball bearing of international well-known brand.
The roller has good dynamic and static balance performance.
Low roller drag and friction to protect the belt.
Uniquely labyrinth seals design for definitely water/dust proof.
Low total indicated runout (T.I.R.), Less vibration.
Making sure long lifetime operation.
Automatic simultaneous welding, CNC milling of bearing housings.
Use cold drawn round steel with high surface accuracy as the shaft material.
Adopt precision deep-groove ball bearing of international well-known brand.
The roller has good dynamic and static balance performance.
Low roller drag and friction to protect the belt.
Uniquely labyrinth seals design for definitely water/dust proof.
Low total indicated runout (T.I.R.), Less vibration.
Making sure long lifetime operation.
BASIC INFORMATION
Standard :JIS / CEMA / DIN / ISO / GB
Bearing Type: 6204~6312 2RS
Bearing Brands:SKF, FAG, NSK, LYC, HRB, or ZWZ
Idler Dia: Ø60~Ø250mm
Idler Length:suitable for belt width 350~3000mm
Shaft Dia: Ø20~Ø60mm
Bearing Type: 6204~6312 2RS
Bearing Brands:SKF, FAG, NSK, LYC, HRB, or ZWZ
Idler Dia: Ø60~Ø250mm
Idler Length:suitable for belt width 350~3000mm
Shaft Dia: Ø20~Ø60mm
PRODUCTION TECHNOLOGY

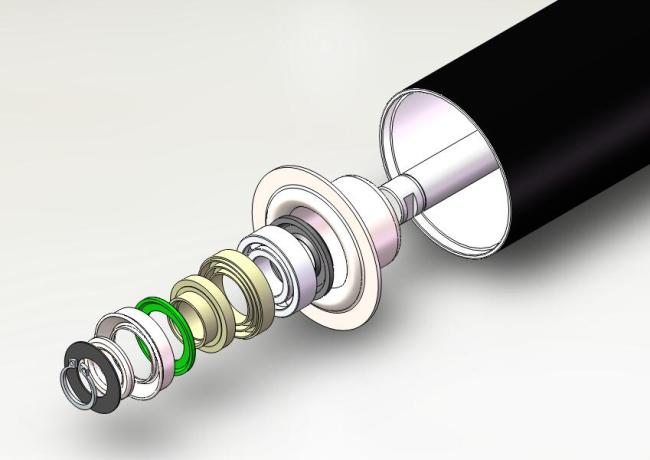

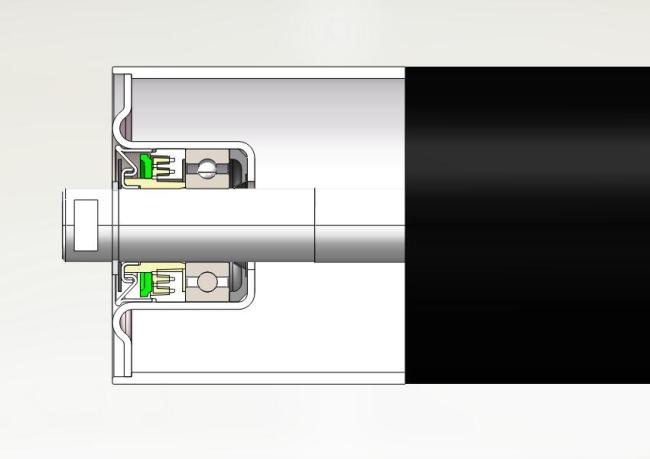

Roller Structure
DIFFERENT TYPES OF ROLLER/IDLER SETS
 |
 |
 |
| Carrying roller/idler | Return roller/idler | Impact roller/idler |
 |
 |
 |
| Self aligning roller/idler | Comb roller/idler | Spiral roller/idler |

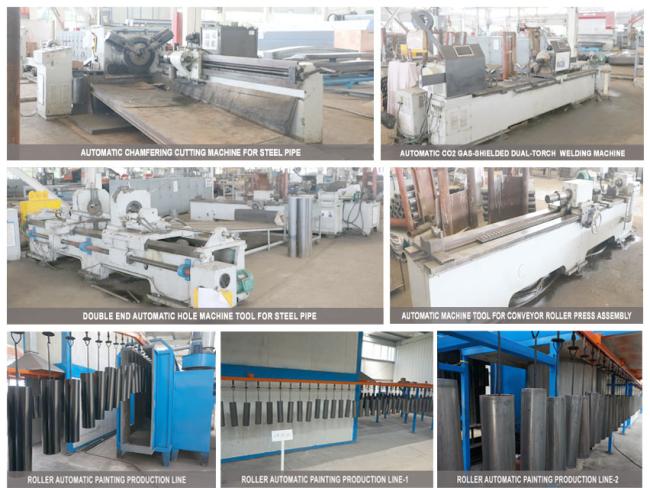

In order to ensure the production quality of conveyor idler, excellent tooling and equipment are needed.TSKY has advanced Automatic Chamfering cutting machine for steel pipe,Automatic CO2 gas-shielded Dual-torch welding machine, Double end Automatic hole machine Tool for steel pipe, Automatic machine Tool for elevator Press Assembly, Roller Automatic paintingProduction line, and other equipment
![conveyor idlers]()

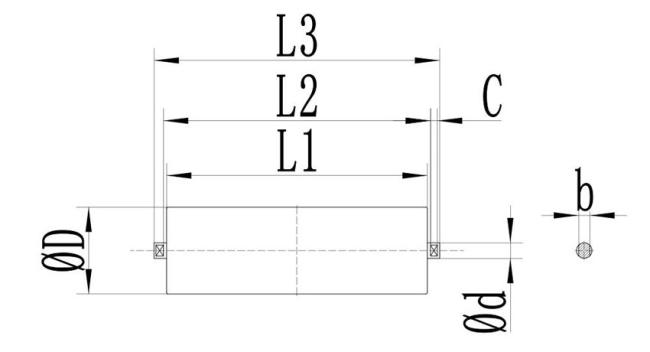

SELECTION INSTRUCTIONS
We can give you the exactly quotation, advanced technology support and more effective overseas installation and maintenance services, please give us the following information:
L1 : ______mm L2: ______mm
L3 : ______mm C: ______mm
b : ______mm φD:______ mm
φd :______ mm

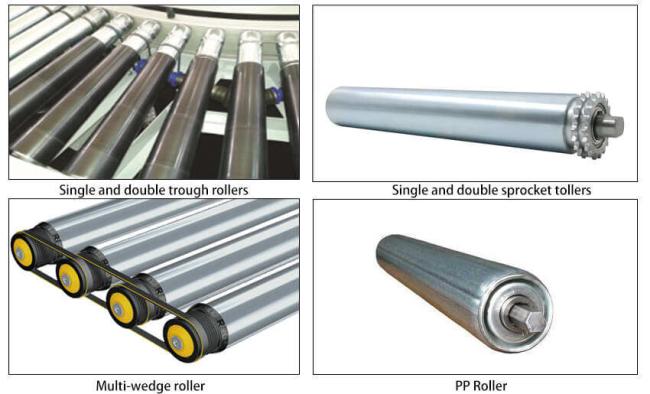

OTHER IDLER MODELS
As for limitation of page's length,we don't display all our products here. We can produce according to your customized request.
