HZS75 Mobile Concrete Batching Plant
HZS75 Mobile Concrete Batching Plant Potable Mixing Plant
Features Of HZS75 Mobile Concrete Batching Plant Potable Mixing Plant
Compact Module Structure
The HZS75 mobile concrete batching plant potable mixing plant is designed in a compact module structure, so the batching plant can be easily moved. The batching machine, concrete mixer, screw conveyor and cement silos are independent sections. The disassembly and installation is fast and the transport is convenient. Different arrangement is available for different requirement.
Excellent Mixing Performance
The HZS75 mobile concrete batching plant potable mixing plant is equipped with MS twin-shaft concrete mixer, which has excellent performance, short mixing time, good quality mixing result and high production efficiency.
Accurate Weighing
The weighing and control unit of aggregate, power material and liquid material adopt the famous brand, with computer control which can ensure the accurate weighing and stable working performance.
Simple Operation
The HZS75 mobile concrete batching plant potable mixing plant adopts industrial computer of PLC automatic control, also with manual operation for option. Dynamic panel display can easily monitor the running situation of each part. The system can save the production data and print the reports.
Convenient For Maintenance
The HZS75 mobile concrete batching plant potable mixing plant is equipped with humanized large maintenance platform and stairs, which are easy for repair and maintenance. Reserved water outlet on the concrete mixer is convenient for mixer washing. The entire packing ensure the normal daily production and maintenance without weather influence.
Technical Parameter List of HZS75 mobile concrete batching plant potable mixing plant
| Model | HZS25 | HZS35 | HZS50 | HZS75 | HZS100 |
| Theoretical Productivity | 25m³/h | 35m³/h | 50m³/h | 75m³/h | 100m³/h |
| Mixer Model | MS500 | MS750 | MS1000 | MS1500 | MS2000 |
| Mixing Motor Power | 18.5Kw | 30Kw | 37Kw | 55Kw | 2*37Kw |
| Feeding Mode | Skip Hoist Feeding System | ||||
| Cycling Period | 72s | 72s | 72s | 72s | 72s |
| Max. Grain Size | 80mm | 80mm | 80mm | 80mm | 80mm |
| Aggregate Bin Capacity | 2*6m³ | 3*6m³ | 3*12m³ | 3*12m³ | 4*20m³ |
| Discharge Height | 3.8/4.2m | 3.8/4.2m | 3.8/4.2m | 3.8/4.2m | 3.8/4.2m |
| Aggregate Weighing Precision | ±2% | ±2% | ±2% | ±2% | ±2% |
| Cement Weighing Precision | ±1% | ±1% | ±1% | ±1% | ±1% |
| Fly Ash Weighing Precision | ±1% | ±1% | ±1% | ±1% | ±1% |
| Water Weighing Precision | ±1% | ±1% | ±1% | ±1% | ±1% |
| Additive Weighing Precision | ±1% | ±1% | ±1% | ±1% | ±1% |

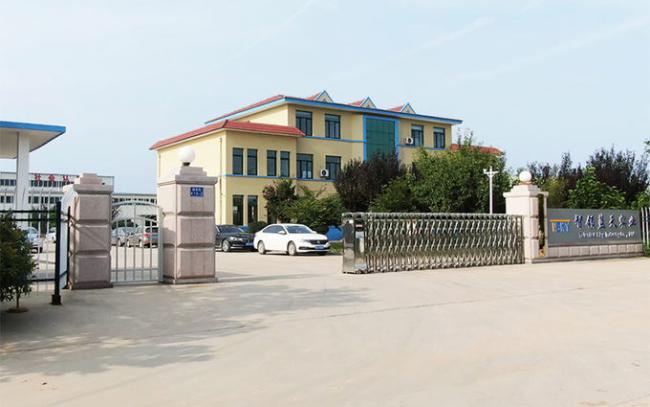

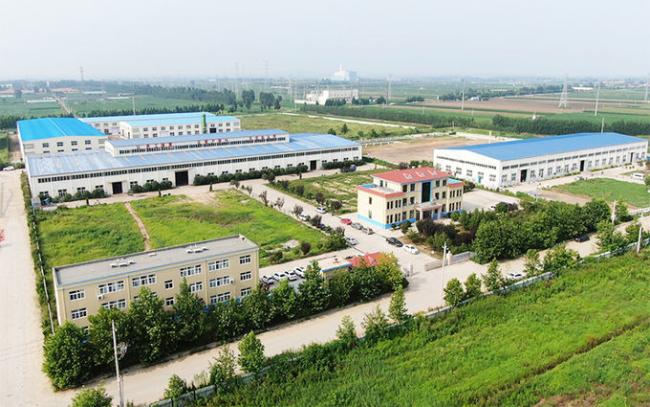

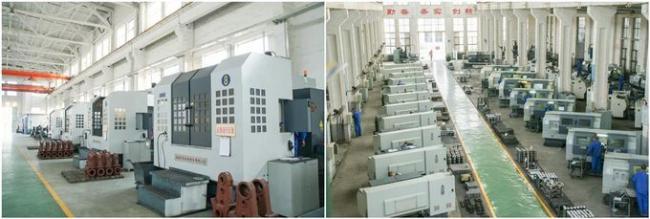

TSKY Factory
