3mm 220v LEDs | 5mm 220v LEDs | High Voltage DIP LED Lamps｜220V LED connector | led indicator lights
Price:
Negotiable
MOQ:
10000
Delivery Time:
10-20
Brand:
Queendom
Product Description
OVERVIEW

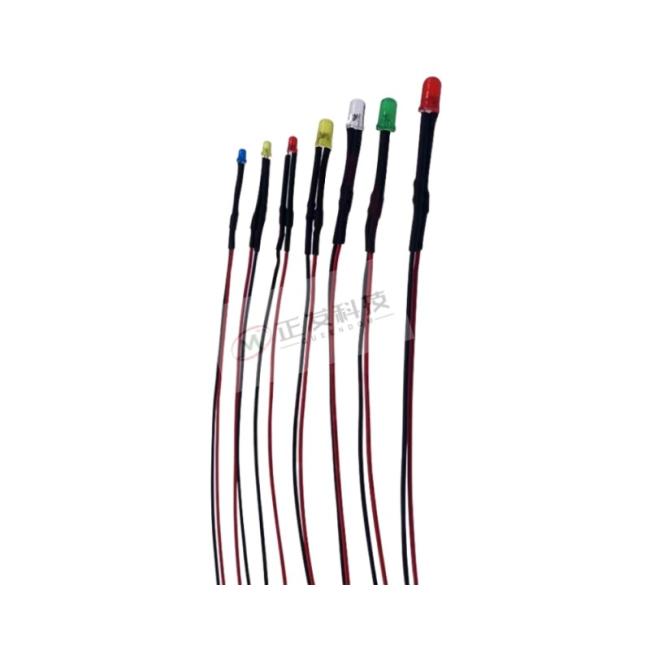

Through-hole DIP leds high-voltage ;LEDS AC LED lamps: Φ3, Φ5, Φ8 and straw hat LED plug-in round high-pressure lamp types. There are both single-color and dual-color luminous types, and the luminous color options are green, red, yellow, white, blue and orange.
AC AC220 light-emitting diode with adjustable voltage of AC12-220V; the lead length is conventionally 90mm, and can be customized to accept different color combinations.
PRODUCT
| Product No. | Emitted Color | Size | Wavelenght(nm) | Φe(MCD/LM) | CRI | VF (V) Typ. | Reverse current(µA) | Viewing Angle 2Ө 1/2 | Lead length/mm | Lens Type | Flange with flange | Part No. |
| AC220V-B3R202C | R | 3*5.1 | 620-630 | 230-600 | / | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC01 |
| AC220V-B3O202C | O | 3*5.1 | 600-610 | 200-500 | / | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC02 |
| AC220V-B3Y202C | Y | 3*5.1 | 585-595 | 120-390 | / | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC03 |
| AC220V-B3G202C | G | 3*5.1 | 565-575 | 60-200 | / | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC04 |
| AC220V-B3G202C-G | Y-G | 3*5.1 | 520-530 | 3800-6500 | / | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC05 |
| AC220V-B3B202C | B | 3*5.1 | 460-470 | 800-1600 | / | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC06 |
| AC220V-B3W202C-A | Warm White | 3*5.1 | 2500-4000 | 1100-2500 | >Ra80 | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC07 |
| AC220V-B3W202C-C | Positive white | 3*5.1 | 5000-8000 | 1200-2300 | >Ra80 | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC08 |
| AC220V-B3W202C-D | Cool white | 3*5.1 | 9000-20000 | 1200-2300 | >Ra80 | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC09 |
| AC220V-B3R102C | R | 3*5.1 | 620-630 | 230-600 | / | 220V | ≤10 | 60° | 90 | Red Diffused | Y | 401000THAC10 |
| AC220V-B3O102C | O | 3*5.1 | 600-610 | 200-500 | / | 220V | ≤10 | 60° | 90 | Orange Diffused | Y | 401000THAC11 |
| AC220V-B3Y102C | Y | 3*5.1 | 585-595 | 120-390 | / | 220V | ≤10 | 60° | 90 | Yellow Diffused | Y | 401000THAC12 |
| AC220V-B3G102C | G | 3*5.1 | 565-575 | 60-200 | / | 220V | ≤10 | 60° | 90 | Green Diffused | Y | 401000THAC13 |
| AC220V-B3G102C-G | Y-G | 3*5.1 | 520-530 | 3800-6500 | / | 220V | ≤10 | 60° | 90 | Green Diffused | Y | 401000THAC14 |
| AC220V-B3B102C | B | 3*5.1 | 460-470 | 800-1600 | / | 220V | ≤10 | 60° | 90 | Blue Diffused | Y | 401000THAC15 |
| AC220V-B3W102C-A | Warm White | 3*5.1 | 2500-4000 | 1100-2500 | >Ra80 | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC16 |
| AC220V-B3W102C-C | Positive white | 3*5.1 | 5000-8000 | 1200-2300 | >Ra80 | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC17 |
| AC220V-B3W102C-D | Cool white | 3*5.1 | 9000-20000 | 1200-2300 | >Ra80 | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC18 |
| Product No. | Emitted Color | Size | Wavelenght(nm) | Φe(MCD/LM) | CRI | VF (V) Typ. | Reverse current(µA) | Viewing Angle 2Ө 1/2 | Lead length/mm | Lens Type | Flange with flange | Part No. |
| AC220V-B5R202C | R | 5*8.7 | 620-630 | 60-260 | / | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC19 |
| AC220V-B5R202C | R | 5*8.7 | 640-660 | 60-260 | / | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC20 |
| AC220V-B5O202C | O | 5*8.7 | 60-610 | 20-200 | / | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC21 |
| AC220V-B5Y202C | Y | 5*8.7 | 585-595 | 40-300 | / | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC22 |
| AC220V-B5G202C | G | 5*8.7 | 510-530 | 40-200 | / | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC23 |
| AC220V-B5B202C | B | 5*8.7 | 460-470 | 400-1200 | / | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC24 |
| AC220V-B5W202C | Warm White | 5*8.7 | 2500-4000 | 1100-2500 | >Ra80 | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC25 |
| AC220V-B5W202C | Positive white | 5*8.7 | 5000-8000 | 1100-2300 | >Ra80 | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC26 |
| AC220V-B5W202C | Cool white | 5*8.7 | 9000-20000 | 1200-2300 | >Ra80 | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC27 |
| AC220V-B5R104C | R | 5*8.7 | 620-630 | 60-260 | / | 220V | ≤10 | 60° | 90 | Red Diffused | Y | 401000THAC28 |
| AC220V-B5O104C | O | 5*8.7 | 600-610 | 60-260 | / | 220V | ≤10 | 60° | 90 | Red Diffused | Y | 401000THAC29 |
| AC220V-B5Y104C | Y | 5*8.7 | 585-595 | 20-200 | / | 220V | ≤10 | 60° | 90 | Orange Diffused | Y | 401000THAC30 |
| AC220V-B5G104C | G | 5*8.7 | 565-575 | 40-300 | / | 220V | ≤10 | 60° | 90 | Yellow Diffused | Y | 401000THAC31 |
| AC220V-B5B104C | B | 5*8.7 | 460-470 | 40-200 | / | 220V | ≤10 | 60° | 90 | Green Diffused | Y | 401000THAC32 |
| AC220V-B5W104C | Warm White | 5*8.7 | 2500-4000 | 400-1200 | >Ra80 | 220V | ≤10 | 60° | 90 | Blue Diffused | Y | 401000THAC33 |
| AC220V-B5W104C | Positive white | 5*8.7 | 5000-8000 | 1100-2500 | >Ra80 | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC34 |
| AC220V-B5W104C | Cool white | 5*8.7 | 9000-20000 | 1200-2300 | >Ra80 | 220V | ≤10 | 60° | 90 | White Diffused | Y | 401000THAC35 |
APPLICATION
High voltage AC 220VLEDs, led indicator lights
Terminal wire. #Manufacturing #New Energy Accessories #led indicator light #220VLEDs connector #High Voltage LEDs #148v 110V 220Vled diode
