Product Description
OVERVIEW

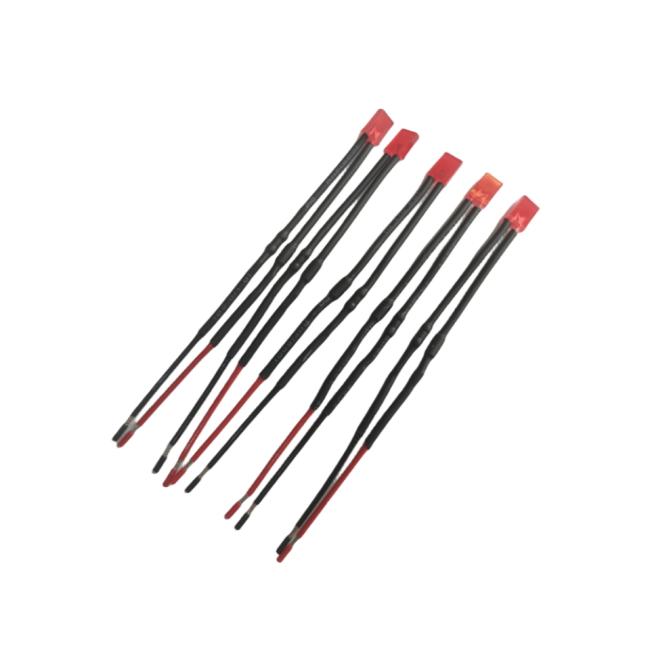

Square high voltage LEDs
Square high voltage AC LEDs: 2.0×3.0×4.0mm & 2.0×5.0×7.0mm high voltage LEDs type.
There are both single-color and dual-color luminous types, and the luminous color options are green, red, yellow, white, blue and orange.
AC AC220 light-emitting diode with adjustable voltage of AC12-220V; the lead length is conventionally 90mm, and can be customized to accept different color combinations.
PRODUCT
| Product No. | Emitted Color | Size | Wavelenght(nm) | Φe(MCD/LM) | CRI | VF (V) Typ. | Reverse current(µA) | Viewing Angle 2Ө 1/2 | Lead length/mm | Lens Type | Flange with flange | Part No. |
| AC220V-R257R102D | R | 2*5*7 | 620-630 | 200-600 | / | 220V | ≤10 | 120° | 90 | Red Diffused | N | 401000THAC36 |
| AC220V-R257O102D | O | 2*5*7 | 600-610 | 200-400 | / | 220V | ≤10 | 120° | 90 | Orange Diffused | N | 401000THAC37 |
| AC220V-R257Y102D | Y | 2*5*7 | 585-595 | 200-500 | / | 220V | ≤10 | 120° | 90 | Yellow Diffused | N | 401000THAC38 |
| AC220V-R257G102D | G | 2*5*7 | 510-530 | 1000-1900 | / | 220V | ≤10 | 120° | 90 | Green Diffused | N | 401000THAC39 |
| AC220V-R257B102D | B | 2*5*7 | 460-470 | 400-1100 | / | 220V | ≤10 | 120° | 90 | Blue Diffused | N | 401000THAC40 |
| AC220V-R257W102D | Warm White | 2*5*7 | 2500-4000 | 800-2000 | >Ra80 | 220V | ≤10 | 120° | 90 | White Diffused | N | 401000THAC41 |
| AC220V-R257W102D | Positive white | 2*5*7 | 5000-8000 | 1000-2300 | >Ra80 | 220V | ≤10 | 120° | 90 | White Diffused | N | 401000THAC42 |
| AC220V-R257W102D | Cool white | 2*5*7 | 9000-20000 | 900-1500 | >Ra80 | 220V | ≤10 | 120° | 90 | White Diffused | N | 401000THAC43 |
| AC220V-R257R102C | R | 2*5*7 | 620-630 | 5-10 | / | 220V | ≤10 | 120° | 90 | Red Diffused | Y | 401000THAC44 |
| AC220V-R257R102C | R | 2*5*7 | 620-630 | 200-600 | / | 220V | ≤10 | 120° | 90 | Red Diffused | Y | 401000THAC45 |
| AC220V-R257O102C | O | 2*5*7 | 600-610 | 200-400 | / | 220V | ≤10 | 120° | 90 | Orange Diffused | Y | 401000THAC46 |
| AC220V-R257Y102C | Y | 2*5*7 | 585-595 | 200-500 | / | 220V | ≤10 | 120° | 90 | Yellow Diffused | Y | 401000THAC47 |
| AC220V-R257G102C | G | 2*5*7 | 510-530 | 1000-1900 | / | 220V | ≤10 | 120° | 90 | Green Diffused | Y | 401000THAC48 |
| AC220V-R257B102C | B | 2*5*7 | 460-470 | 400-1100 | / | 220V | ≤10 | 120° | 90 | Blue Diffused | Y | 401000THAC49 |
| AC220V-R257W102C | Warm White | 2*5*7 | 2500-4000 | 800-2000 | >Ra80 | 220V | ≤10 | 120° | 90 | White Diffused | Y | 401000THAC50 |
| AC220V-R257W102C | Positive white | 2*5*7 | 5000-8000 | 1000-2300 | >Ra80 | 220V | ≤10 | 120° | 90 | White Diffused | Y | 401000THAC51 |
| AC220V-R257W102C | Cool white | 2*5*7 | 9000-20000 | 900-1500 | >Ra80 | 220V | ≤10 | 120° | 90 | White Diffused | Y | 401000THAC52 |
APPLICATION
High voltage AC 220VLEDs, led indicator lights
Terminal wire. #Manufacturing #New Energy Accessories #led indicator light #220VLEDs connector #High Voltage LEDs #148v 110V 220Vled diode
