Model: 5MM UV purple DIP LEDs Clear Leds Size: φ5mm

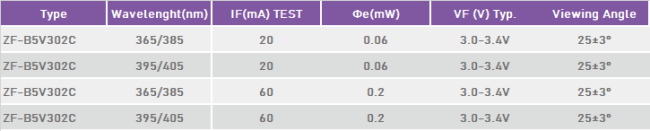

Peak parameters:
|
Color |
Watt Class (W) |
Emitted Color |
Power Dissipation | Forward Current |
Peak Forward Current※1 |
| Pd (mW) | Ifmax (mA) | IFP (mA) | |||
| White | 0.06 | UW | 105 | 30 | 100 |
|
Single-Color |
0.06 | UV | 114 | 30 | 100 |
| 0.06 | UB/UG | 105 | 30 | 100 | |
| 0.06 | UY/UO/OR | 72 | 30 | 100 | |
| 0.06 | IR | 54 | 30 | 100 | |
|
Bi-Color |
0.12 | IR+UV | 72+102 | 60 | 100 |
| 0.12 | UR+UV | 72+105 | 60 | 100 | |
| 0.12 | UR+UY | 72+72 | 60 | 100 |
Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C.
Product number::Absolute Maximum Rating(At TA=25°C)
Notes:
Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ1/2

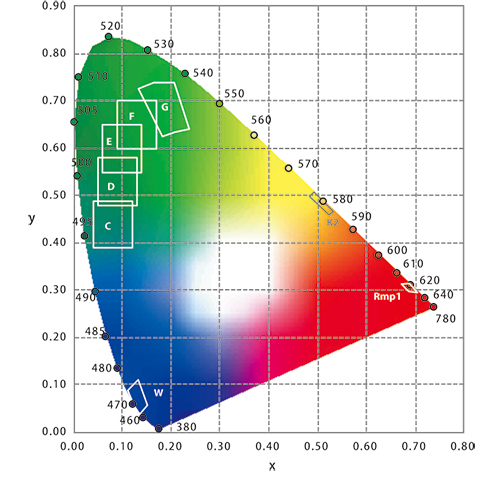

is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c. The dominant wavelength (λd) is derived from
the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.
product properties:
Using epistar chip, hightemperature resistant Japanese glue, 99.99% pure gold wire welding;
Colloid color: can becustomized according to requirements: colored fog, colorless fog, colored andtransparent, colorless and transparent
Luminous color: can becustomized according to requirements: white, red, orange, yellow, ordinarygreen, emerald green, blue, two colors
Light emitting angle: 25±5°(the angle can be adjusted according to customer requirements)
Product features: highlight efficiency, anti-high temperature, anti-dead lamp, anti-static
Certification standards:SGS certificate in line with EU ROHS, EN60425, REACH standards
Packing: 500-1000pcs/bag inanti-static bag

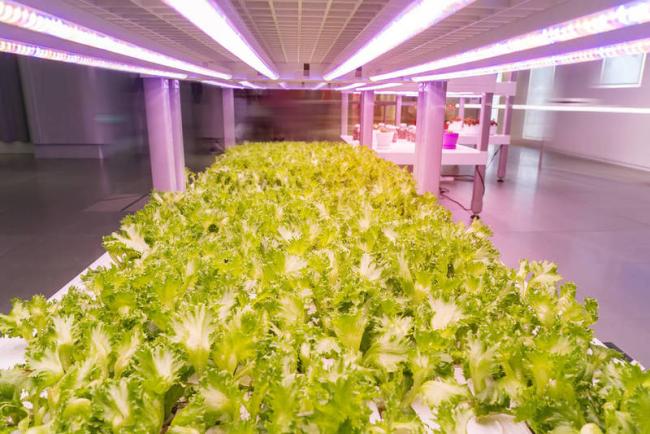

Application areas:
Color classification and color temperature display
