10mm IR Infrared LED|10mm infrared LED|DIP infrared|infrared diode|infrared emitting diode|IR LED source
Model: 10mm IR Infrared LED Round DIP Leds Size: φ10mm

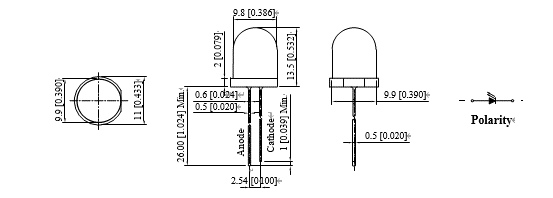

Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is±0.25mm(0.01”) unless otherwise specified.
3. Lead spacing ismeasured where the leads emerge from the package.
4. Specifications aresubject to change with notice.
Peak parameters:
Notes:*1:IFP Conditions--PulseWidth≦100μsandDuty≦1%. *2:Soldering time≦5second

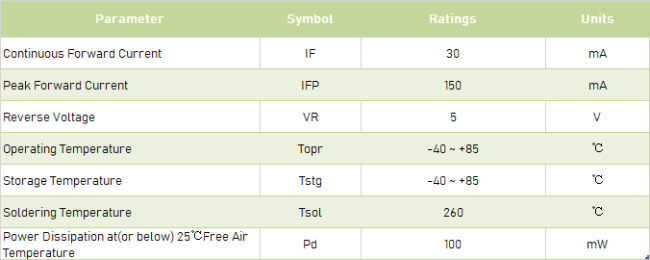

Product number::Absolute Maximum Rating(At TA=25°C)
Notes:

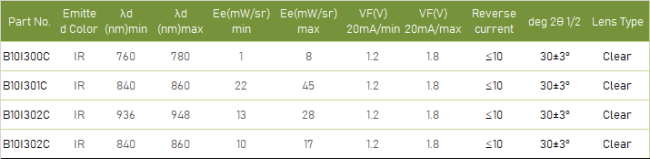

Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ1/2
is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c. The dominant wavelength (λd) is derived from
the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.
