Mining Screen Scroll Centrifuge

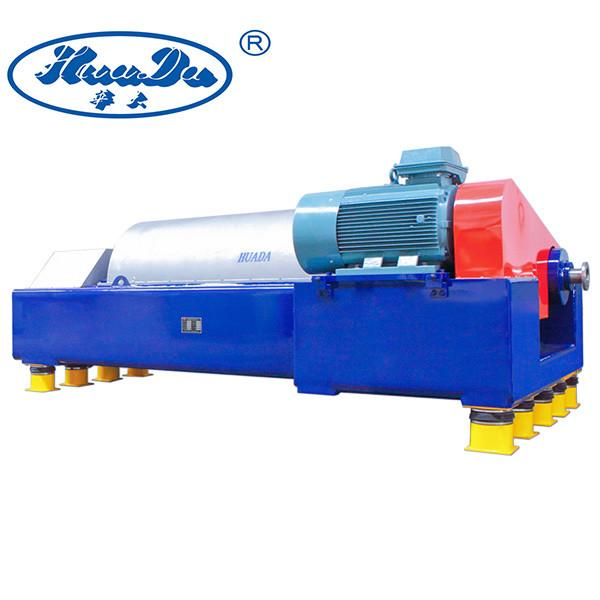

LWZ Horizontal Automatic Large Screen Decanter Centrifuge For Mining
Description
LWZ centrifuge series are integrated with the advantages of both centrifugal sedimentation and centrifugal filtration, which are also designed to be mutually complementary to enhance the separation effect and separation efficiency and expand the scope of product application, so as to realize optimal application.
It is especially applicable to the solid-liquid separation of suspension liquids containing crystals, particles, fibers or others.
In the particle size scattergram, the particles with d≥0.08mm;
The feeding concentration of solid matters entering the centrifuge is 5~60Wt%;
It can also be used for separating the materials containing a small amount of organic or adhesive substances (such as tar).
Successful Applications
Separation of ammonium sulfate wastewater and process products
Separation of ammonium chloride wastewater and process products
Separation of potassium sulfate products
Separation of potassium chloride products
Separation of nitro-cotton products
Separation of degradable plastic products
Separation of CPE insulating materials
Technical Parameters
| Model | Bowl Diameter (mm) | L/D | Bowl Speed (r/min) | Separation Factor | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LWZ530*2120 | 530 | 4 | 2800 | 2330 | 45-55 | 5500 | 4870*1230*1520 |
| LWZ650*1950 | 650 | 3 | 2500 | 2260 | 90 | 7500 | 4750*1720*1560 |
| LWZ1000*3000 | 720 | 3 | 1500 | 1260 | 132 | 16000 | 5200*2500*2000 |
