35mm 2 phase 1.8 degree hybrid NEMA14 encoder stepper motor for labotatory instrument

Product description

1. All motors are made of pure copper with corrosion resistance, good themal conductivity, strong electrical conductivity, stable torque, low temperature and durability for more than 5 years.

2. Feature of basic type Hybrid stepper motor: Mechanical and performance parameters comparison standard, easy to use, meet most operational requirements.

3. We accpet OEM and ODM orders.

4. Before sign an official contract with our customer, we will help to analyze and provide professional solution based on customer project information and come out with optimum soultion.

5. One-year warranty spare parts.

6.Buyer can dispatch technician to our factory for free training before delivery.

Advantages of Stepper Motor:

• The rotation angle of the motor is proportional to the input pulse.
• The motor has full torque at standstill.
• Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3 – 5% of a step and this error is noncumulative from one step to the next.
• Excellent response to starting, stopping, and reversing.
• Very reliable since there are no contact brushes in the motor. Therefore the life of the motor is simply dependant on the life of the bearing.
• The motor’s response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
• It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
• A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.

Operation of Stepper Motor:

Stepper motors operate differently from DC brush motors, which rotate when voltage is applied to their terminals. Stepper motors, on the other hand, effectively have multiple toothed electromagnets arranged around a central gear-shaped piece of iron. The electromagnets are energized by an external control circuit, for example, a microcontroller.

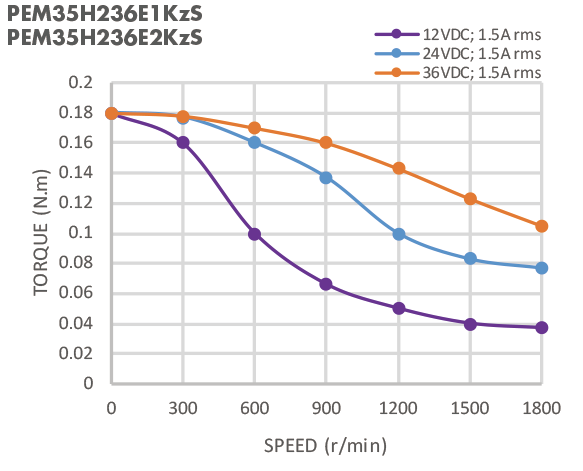

encoder stepper motor of Specifications

Applications of Stepper Motors

Stepper motors are diverse in their uses, but some of the most common include:

• 3D printing equipment
• Textile machines
• Printing presses
• Gaming machines
• Medical imaging machinery
• Small robotics
• CNC milling machines
• Welding equipment

Quality assurance:

• 1. All stepper motors have CE and RoHS certification
• 2. All motors are tested by a toasting machine for 72 hours
• 3. All the motors will be shipped after testing

Packing Details : Packing uses shockproof foam, different sizes and different models have special cartons, Delivery Details : The products on the shelves are all in stock, sent in about 3 days, received in 5-10 days, if customized and large orders, 5-20 days delivery, 5-30 days to arrive!

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity and Customized.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
