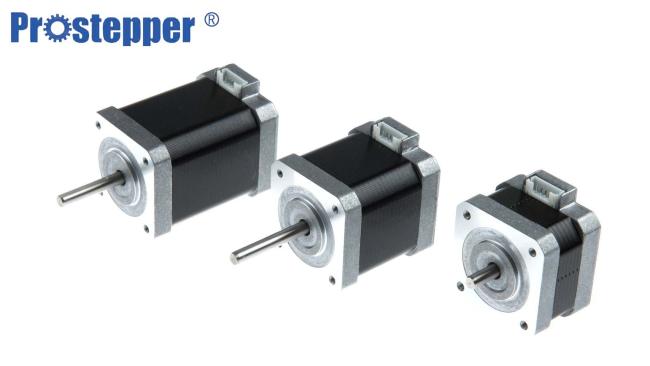

Product description of 1.8 degree 2 phase hybrid NEMA14 35mm connector stepper motor

1. Strictly control the production of parts to improve the quality of parts

2. Stepping motor is a mechanical structure,which does not need be changed by electric brush or Hall sensor,thus reducing the probability and increasing the motor life.Stepping motor life usually determined by the life of the bearing.

3. High reliability, easy maintenance.Motor rotor structure accurate, no loss of step.Rotor special material, not stuck machine

4. Online testing of technical parameters to ensure the consistency of data product parameters

5. Accurate position Control

   The angular displacement of the stepping motor can be precise controlled by the number of electrical pulses.Angle accuracy can be controlled within ±0.09°without any feedback devices.

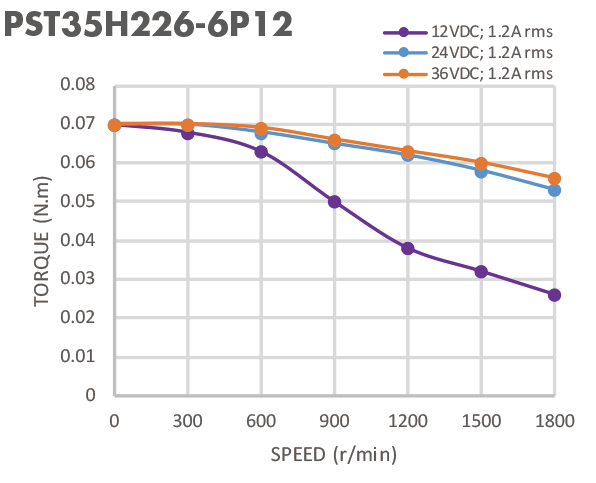

NEMA14 35mm connector stepper motor  Specifications

• 1. Shaft Dia= 5mm
• 2. Step Angle: 1.8
• 3. Phase Current 1.2A
• 4. Phase Resistance: 3.5Ohm
• 5. Phase Inductance: 1.2mH
• 6. Holding Torque:0.07N.cm
• 7. Wire: 4(Blue, green, black, red)
• 8. Max. Temperature Rise: 80"C (rated current, 2 phase on)11. Operating Temperature: -20*C-+70"C

Can you provide us the following information ?

There are serveral important items: size, length of stepper motor, holding torque, voltage, current etc.After confirm some them and told us, we can send you the suitable one.

You can send us the model you are using, we can hep you find out the most suitable one.

What we can do for you ?

We are honored to offer you samples for quality check.

One-year warranty and lifelong repair.

Prostepper also provide OEM and ODM for a lot of BRAND-NAME companies.

Welcome to ask the problem about stepper motor , we hope to provide you best service.

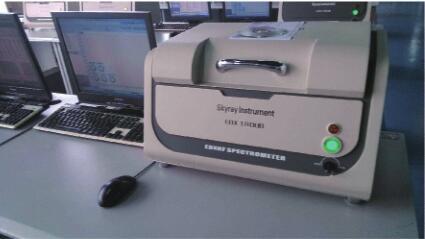

Quality assurance:

• 1.All stepper motors have CE and RoHS certification
• 2.All motors are tested by a toasting machine for 72 hours
• 3.All the motors will be shipped after testing

Applications of Stepper Motors

Stepper motors are diverse in their uses, but some of the most common include:

• 3D printing equipment
• Textile machines
• Printing presses
• Gaming machines
• Medical imaging machinery
• Small robotics
• CNC milling machines
• Welding equipment

Know more about our company

Changzhou Prostepper Co. Ltd is a manufacturer and exporter of various of stepper motors with 20 years experience, so you choose Prostepper brand is always best choice.we are committed to creating the smoothest, most accurate and most innovative stepper motors that can be used anywhere. Today, we have a wide range of standard and custom stepper motors, Brushless motor.

57mm series stepper motor in our company are most popular in the markets, the motor length is also different, accordng to your demand,we can helpe you choose the suitable model. You can believe us our motor quality is very stable, so our costs are the lowest, we can be ready for stocks,if you want to choose the performance of motors stable , and 57mm motor can be widely used in many fields, PROSTEPPER BRAND hybrid stepper motors, fit with suitable drivers, be widely used in garment machinery, CNC, textile machinery, packaging machinery, medical equipment, wiring harness processing and other industries.

Most customer like to choose this model of hybrid stepper motor. Prostepper has a large customers group across over the world, with products being exporting to over 10 countries, including the United States; Germany, Switzerland; Italy Korea and Japan, etc.

Prostepper motor can privde the best service for all the customer, because we have our advantage different the other motor company.
