Sand Pump Gardener Denver Mainly Used To Transport Drilling Mud
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description

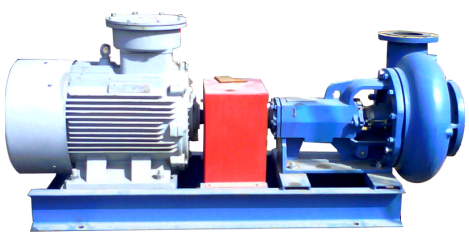

Sand Pump Gardener Denver
Sand Pump is mainly used to transport drilling mud,it can be used as a slurry pump for de-sanding,desiltering and centrifuges.
It can be used as a mixing pump for jet mixing, and it is also be used as an infusion pump for recharge and mud pumps.
|
型号Model 规格Sec |
SB8×6×14 | SB8×6×11 | SB6×5×11 | SB4×3 | SB3×2 |
| 排量(m³/h) Discharge Capacity |
240~260 | 220~240 | 180~220 | 60 | 50 |
| 扬程 (m) Pump Head |
28~33 | 24~28 | 24~28 | 22~28 | 22~28 |
| 效率Efficiency | 65% | 65% | 65% | 65% | 65% |
| 电机功率(kW) Motor Power |
55/75 | 37/45 | 30/37/45 | 11/15 | 7.5/11 |
| 电机转速(rpm) Motor Speed |
1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 |
| 进口直径(in) Inlet Diameter |
8 | 8 | 6 | 4 | 3 |
| 出口直径(in) Outlet Diameter |
6 | 6 | 5 | 3 | 2 |
| 重量(kg) Weight |
1150 | 1050 | 920 | 460 | 400 |
| 外形尺寸(mm) Dimensions |
1920*652*1015 | 1800*600*980 | 1788*580*900 | 1360*500*632 | 1355*500*632 |
