FSK—15B Air Motor Make Up Machine 15KW 110r/min Rotate Speed
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description

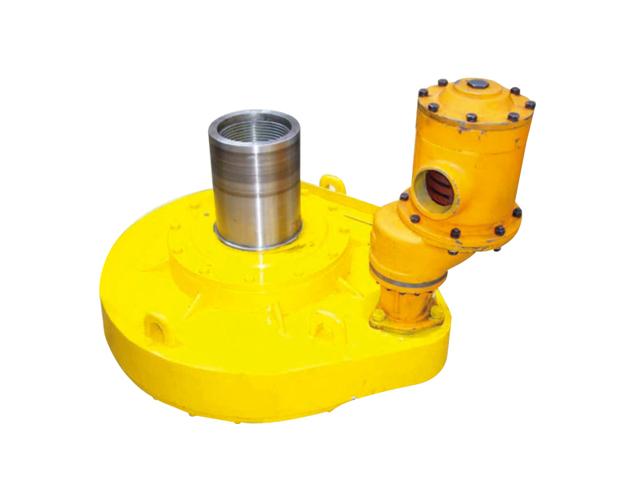

FSK—15B air motor make up machine
Air motor make up machine has a simple structure, easy to assemble—directly mounted under the joint through thread The system use pressed air as drive source, slow the system by vane type starting motor and slow unit.
Under the force of air pressure, the starting gear at the end of slow unit work together with the gear wheel in the rotary table of make up machine to make the central pipe rotate and drive the drilling stem to achieve automatically spinning.
FSK-15B basic parameters of air motor make up machine are as follows:
working pressure: 0.7-0.9Mpa
rated output power: 15KW
Min.rated output power: 1200Nm
Max. make up time: 9s
Rotate speed at make up: 110r/min
applicable swivel CH125,SL135,SL160,SL170 etc.
