China RMKP API 7K PZ-11 Drilling Rig Mud Pump 504rpm Rated Speed Of Transmission Shaft for sale

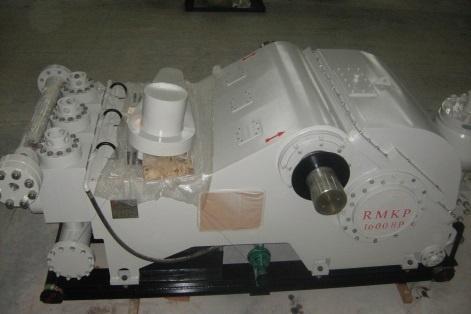

RMKP API 7K PZ-11 Drilling Rig Mud Pump 504rpm Rated Speed Of Transmission Shaft

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 10-15 DAYS
Brand: ATO
Product Description

PZ-11 Mud Pump


Technical specifications
Input power rating (KW) 1193 (16000HP)
Rated pump speed (RPM) 115
Stroke Length (mm) 1279(11”)
Gear ratio 4.38
Rated speed of transmission shaft (RPM) 504
Max. working pressure (Kg/sq.cm) 352 (5000PSI)
Valve size (API) 7#
Max. liner diameter (mm) Φ7”
Max. displacement (GPM) 632
Max. liner pressure (Kg/sq.cm) 275 (3905PSI)
Diameter of suction pipe (mm) 254 (10”)
Diameter of discharge pipe (mm) 100 (4”)
Overall dimensions 4380*2700*2700 mm
Weight (exclude five way joint and
pulsation damper) 17600kg
Weight (lbs )(21000kg ) 46000lbs
