Shale Shaker Screen Viberation Motor 2*0.75Kw Viberation Amplitude 3.92~5.62 mm
Shale Shaker Screen Viberation Motor 2*0.75Kw Viberation Amplitude 3.92~5.62 mm
Descriptions of Shale Shaker Screen Viberation Motor 2*0.75Kw Viberation Amplitude 3.92~5.62 mm:

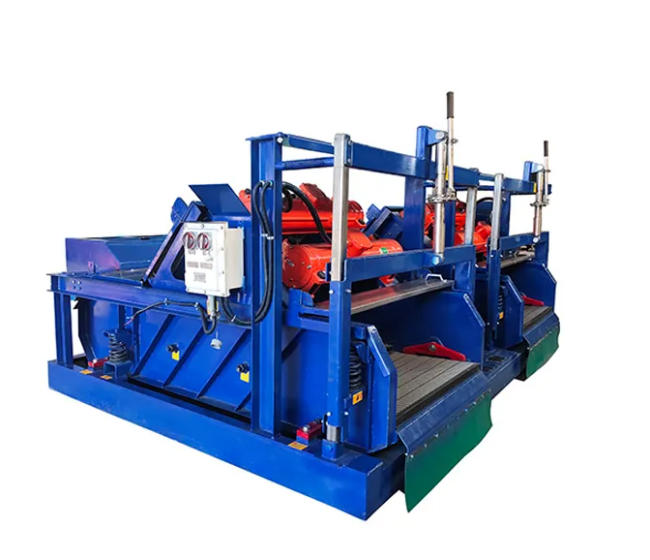

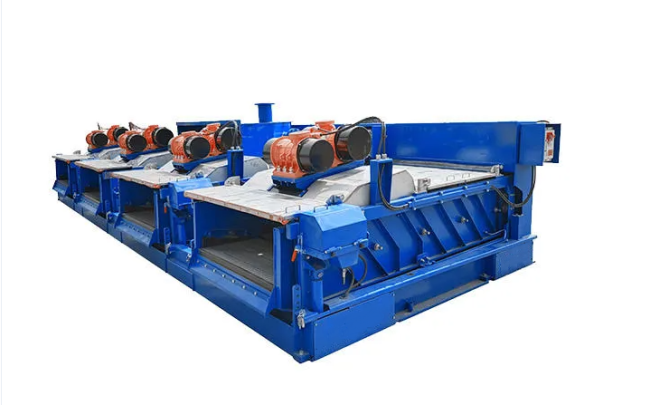

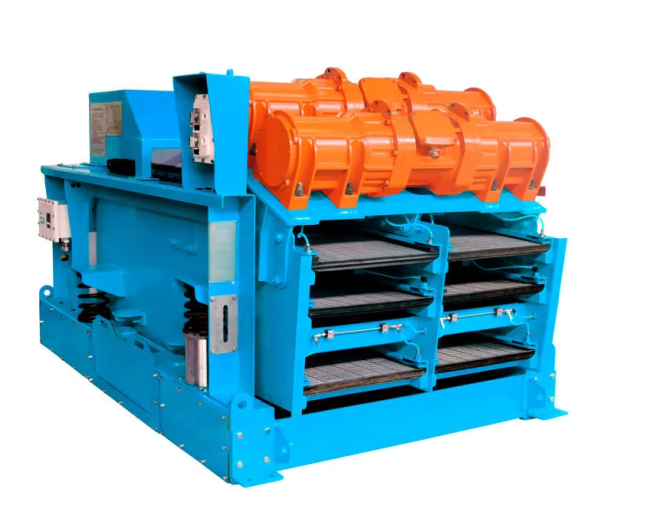

We can design double shakers and truplicate shakers on single skid according to client's special requirements and also supply relevant connection manifold according to xurrent industry situation, we provide both third reneration liner motion shale shaker and fourth generation balanced elliptical shale shaker.
Shale shaker absorbed advanced tech at home and abroad, complete series shale shaker can meet custimers variablr demand. Client feedback proved the advantages for this kind of shale shaker: high G-force, wide screen area, compressed structure, cost-effective, etc.
Specifications :
| Model | ZS752E-DM | ZS703F-HB | ZS703E-DZ | ZS954E-HB | ZS706E-HB |
| Viberation Model | Liner Motion | Liner Motion | Liner Motion | Liner Motion | Liner Motion |
| Capacity | 45 m3 / h (200GPM) |
120 m3 / h (528GPM) |
140 m3 / h (616GPM) |
120 m3 / h (528GPM) |
120 m3 / h (528GPM) |
| Viberation Motor | 2*0.75Kw | 2*1.72Kw | 2*1.72Kw | 2*1.72Kw | 2*1.94Kw |
| Screen Qty | 2 Panels | 3 Panels | 3 Panels | 4 Panels | 6 Panels |
| Screen Area | 1.35 m2 | 2.63 m2 | 2.63 m2 | 2.7 m2 | Upper layer |
| 2.0 m3 | |||||
| Screen Size(mm) | 750*900 | 700*1250 | 700*1250 | 585*1165 | Upper layer |
| Adjustable G Force | Less than 7.1 G | Less than 7.5 G | Less than 7.5 G | Less than 7.5 G | Less than 7.5 G |
| Viberation Amplitude | 3.92~5.62 mm | 4.14~5.96 mm | 4.14~5.96 mm | 4.14~5.96 mm | 4.14~5.96 mm |
| Deck Angle Range | 20 | -1~+50 | -1~+50 | -1~+50 | -1~+50 |
| Weir Height | 710 mm | 735 mm | 1042 mm | 735 mm | 895 mm |
| Ex Standard | Exd BT4 / IEC Ex / ATEX | Exd BT4 / IEC Ex / ATEX | Exd BT4 / IEC Ex / ATEX | Exd BT4 / IEC Ex / ATEX | Exd BT4 / IEC Ex / ATEX |
| Weight | 910 kg | 1550 kg | 1700 kg | 1600 kg | 1870 kg |
| Dimension(mm) | 1670*1730*1070 | 2370*1940*1270 | 2500*1980*1480 | 1940*1940*1270 | 2730*2030*1430 |
