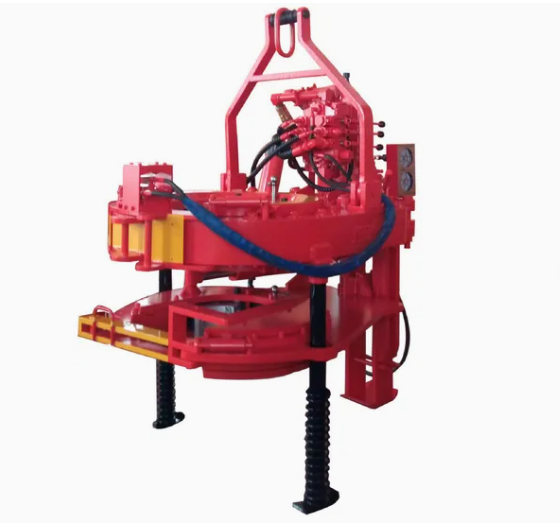

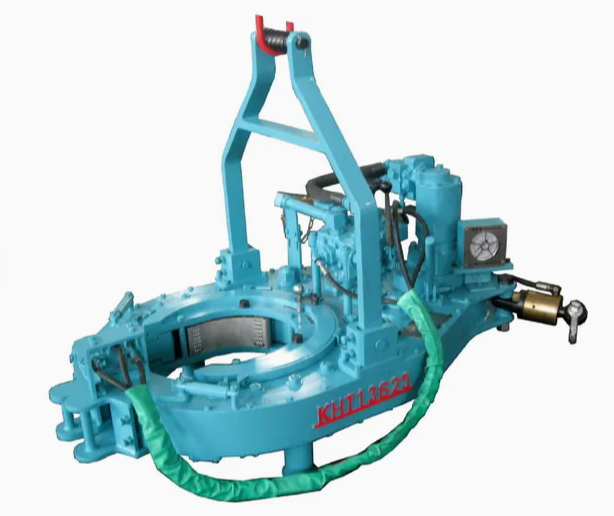

Casing Power Tong Tq Series Max.torque 70 kN.m Max.pressure 20 Mpa
Price:
Negotiable
MOQ:
1
Delivery Time:
10-15 WORK DAYS
Brand:
ATO
Product Description
Casing Power Tong Tq Series Max.torque 70 kN.m Max.pressure 20 Mpa
Descriptions of Casing Power Tong Tq Series Max.torque 70 kN.m Max.pressure 20 Mpa:
The best cutting diameter ratio design, reliable clamping, no slippage;
The brake band brake, the righting mechanism under the;
The hydraulic, two gear speed, using gear gear;
The automatic control system of the optional torque. The installation of torque automatic control system is better.
Specifications
| Model | TQ508/70Y | TQ610/60Y | TQ610/80Y | TQ610/100Y | TQ660/95Y | |
| Size range | mm | 244.5-508 | 273.1-609.6 | 406.4-660.4 | ||
| in | 9-5/8~20 | 10-3/4~24 | 16~26 | |||
| Max.pressure | Mpa | 20 | 18 | 17.2 | 20.7 | 17.2 |
| psi | 2900 | 2610 | 2500 | 3000 | 2500 | |
| Working flow | L/min | 110-170 | 120-180 | 120-220 | 140-220 | |
| gpm | 29-45 | 31.7-47.5 | 31.7-52.8 | 37-58 | ||
| Max.torque | kN.m | 70 | 60 | 80 | 100 | 95 |
| ft.lbf | 51600 | 44250 | 59000 | 73750 | 70060 | |
| Speed | rpm | 4.6-7.3/30.5-48 | 4.9-7.3/33.6-50.4 | 3.2-5.5/21-35 | 3-5/21-35 | 3.1-4.8/21.2-33.4 |
| Matching back clamp model | TB559/70Y | / | TB635/80Y | / | / | |
| Size | mm | 2080*1280*760 | 2370*1310*930 | 2300*1390*750 | 2330*1420*760 | 2330*1420*820 |
| in | 82*50*30 | 93.3*51.6*36.6 | 90.5*54.7*29.5 | 91.7*55.9*29.9 | 91.7*55.9*32.3 | |
| Weight | kg | 1550 | 2150 | 2200 | 2350 | 2450 |
| lb | 3410 | 4730 | 4840 | 5170 |
5390 |
|
