API 6A Oil Drilling Wellhead Equipment Tubing Head Working Pressure 2000 ~10000psi
API 6A Oil Drilling Wellhead Equipment Tubing Head Working Pressure 2000 ~10000psi
Descriptions of API 6A Oil Drilling Wellhead Equipment Tubing Head Working Pressure 2000 ~10000psi:

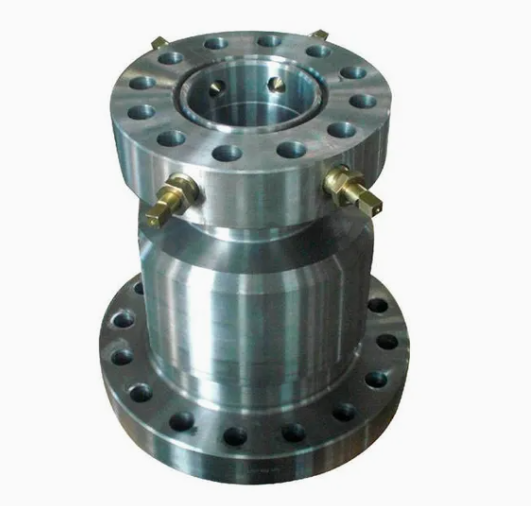

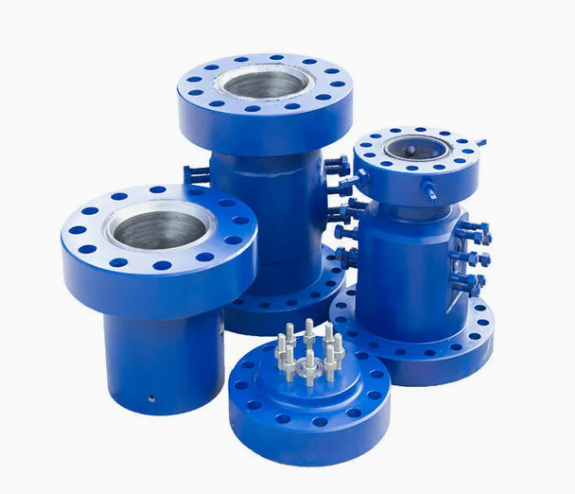

Tubing head is a spool with flange top, flanged bottom and two side outlets. It also can be called tubing spool. Top flange is equipped with lock screws to fix tubing hanger. Tubing head is installed on top of casing head, which consists of body housing and tubing hanger. It can hang tubing string and seal the annular space between tubing and production casing. Our company can manufacturer tubing head with standard structure, which includes tubing hanger installed on the cone of body housing. Tubing hanger can be tapped with BPV thread as per request.
Specifications:
| Working Pressure | 2000 ~10000psi |
| Nominal Bore | 7-1/16 ~13-5/8 |
| Working Medium | oil,natural gas,mud and gas containing H2S,CO2 |
| Working Temperature | -46℃~121℃(Class LU) |
| Material Class | AA,BB,CC,DD,EE,FF,HH |
| Specification level | PSL1-4 |
