Oillfield Equipment Drill Pipe Spinners Max. static Load 2250KN Idel speed 76~110 rpm
Price:
Negotiable
MOQ:
1
Delivery Time:
10-15 WORK DAYS
Product Description
Oillfield Equipment Drill Pipe Spinners Max. static Load 2250KN Idel speed 76~110 rpm
Descriptions of Oillfield Equipment Drill Pipe Spinners Max. static Load 2250KN Idel speed 76~110 rpm:

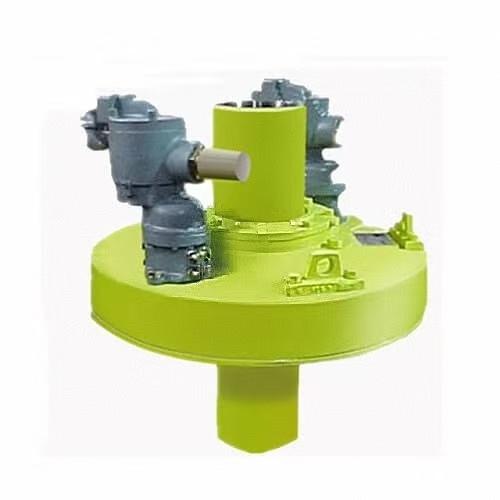

Kelly spinner is a special equipment to connect single pipe automatically by companying with mouse hole clamping device.
It unitizes air or hydraulic motor to drive kelly to rotate and features safe, saving time and labor.
It is designed and manufactured according to API Spec 8A Specification for Drilling and Production Hoisting Equipment.
Specifications:
| Model | FXD | QF2 | Q3 | A6C | 6600 | 6800 | |
| Drive mode | Pneumatic | Hydraulic Driven | |||||
| Max. static Load | 2250KN | 2250KN | |||||
| Pressure | Mpa | 0.5~0.9 | 13.8 | ||||
| psi | 72~130 | 2000 | |||||
| Stall torque | N.m | 1200 | 1600 | 1650 | 1500 | 1500 | 1650 |
| ft.lbf | 885 | 1180 | 1210 | 1100 | 1100 | 1215 | |
| Idel speed | rpm | 76 | 72 | 72 | 170 | 130 | 110 |
| Rotation Direction | Single | Double | Double | Double | Double | Double | |
| Air consumption/Flow | m3/min | 9.3 | 20 | 20 | 9.3 | 15 | 91LPM |
| ft3/min | 328 | 706 | 706 | 328 | 529 | 24GPM | |
| Stem connection | 6-5/8 REG LH | ||||||
| Size | mm | 845×740×725 | 558×558×935 | 860×725×980 | 768×768×1125 | 740×710×978 | 740×710×978 |
| in | 33×29×28 | 22×22×37 | 34×28×39 | 30×30×48 | 29×28×38.5 | 29×28×38.5 | |
| Weight | kg | 383 | 450 | 520 | 540 | 500 | 504 |
| lb | 844 | 992 | 1146 | 1190 | 1100 | 1110 | |
